6-38 Electrical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
The control voltage supply is routed to the connection X13 from above
(see following figure).

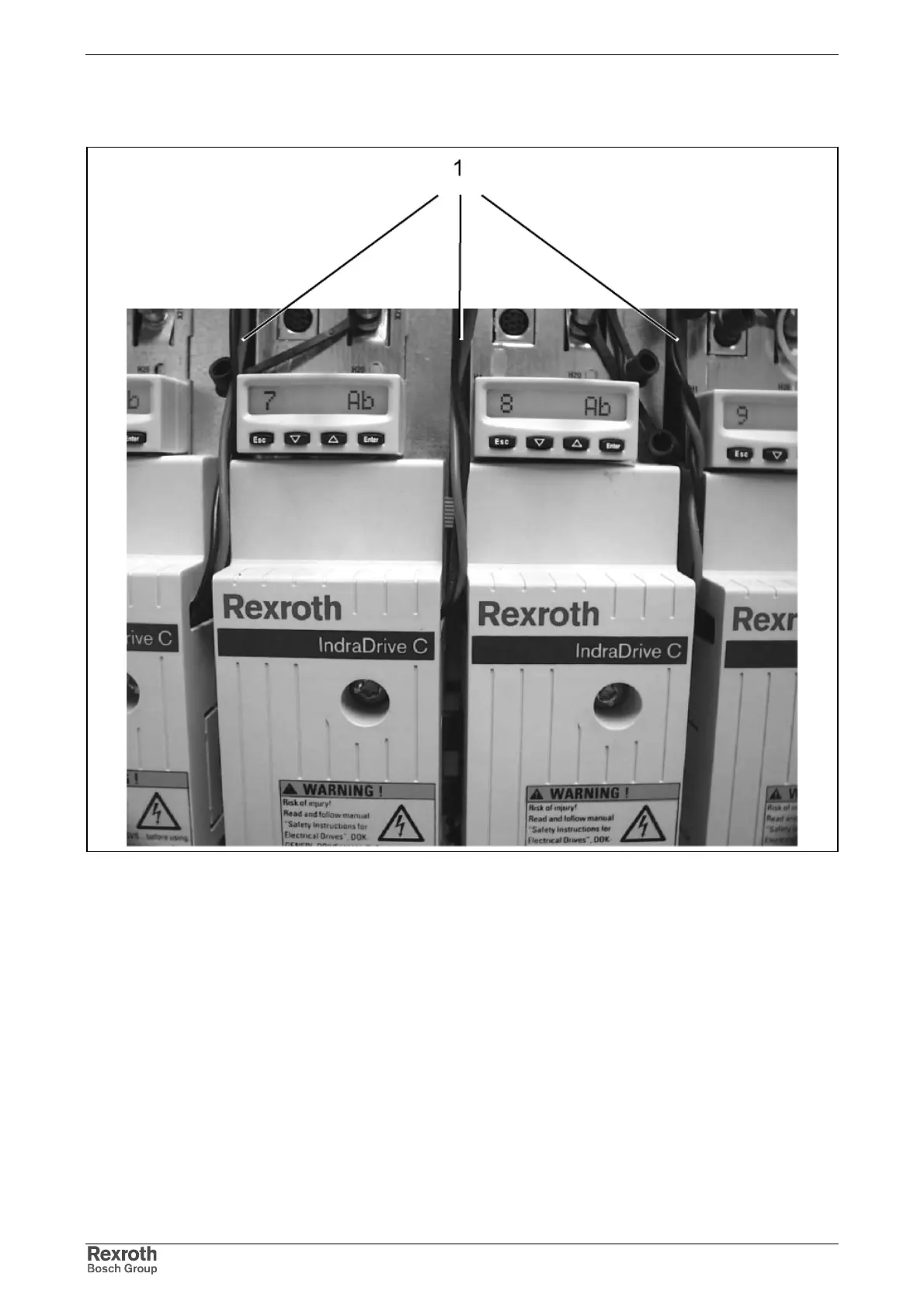

1: lines to control voltage supply
Fig. 6-51: Control voltage supply at X13
