Integr a Sun K VM Switch
13
Connection
Before connecting a device (a server or a Slave KVM switch) to the
Master Sun KVM Switch under power, you must turn off the device.
The ports "PC 1"~”PC 8” can be connected to either a serv er or a
Slave's CONSOLE port, as shown in figure 8.

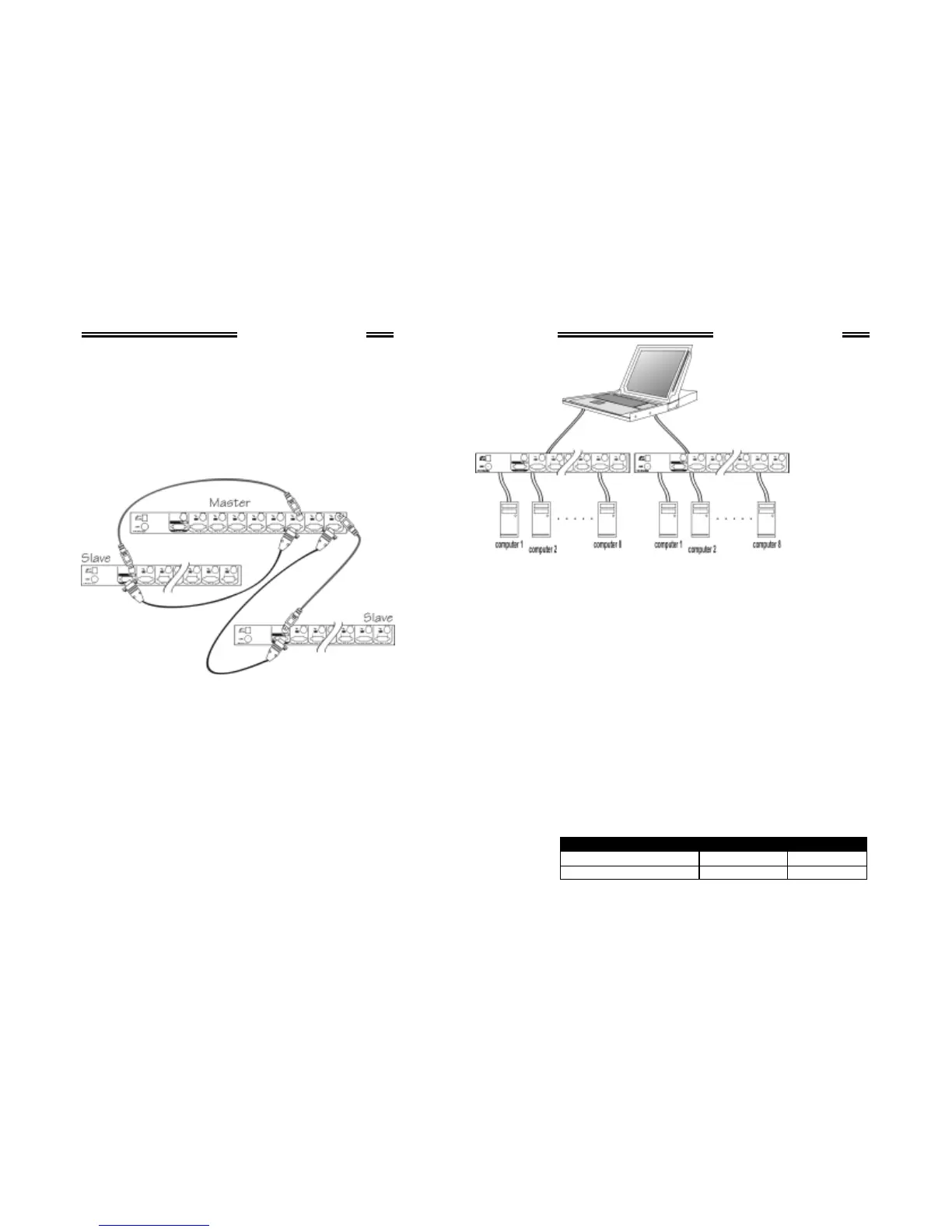

Figure 8: Slave console connection
The maximum number of serv ers controlled by a master/slav e
conf iguration with all 8-port units is 64 -- with 8 Slaves and each Slave
connects to 8 servers, see figure 9.
Integr a Sun K VM Switch
14
Figure 9:
Cascaded 8-
port Integra
Sun KVM
Switches
Change
Configurat
ion while
Run ning
A dev ice (a
computers or a Sun KVM switches) at any 'PC x' port can be changed
at any time after initial power-up. If you change any one of the PC
1 toPC 8 ports connection from a computer to a Slave or vice v ersa,
or replace the devices of a port; the new Slave must be turned off
before it is connected to the Master. Before unplugging the cables
from a computer, you should issue a STOP-A command to that
computer, unplug the cables, re-arrange connection, plug the cables
back to the computer, issue a GO command for that computer and
resume normal operation.
Note: Any new device must be turned off before it is connected to the
Master.
------------------------
------------------------------------------------
------------------------
