C. Lift and install the last module. This module should have 3 air inlet sides (two large sides and one short
side). See Figure A-69 for reference.
D. After all the modules have been installed, proceed to assemble the fan ducts.
E. Remove fan guard.
F. Then cradle/straddle the fan support with the straps (as shown in figure A-70) so you can lift the fan
duct with a crane and assemble it.

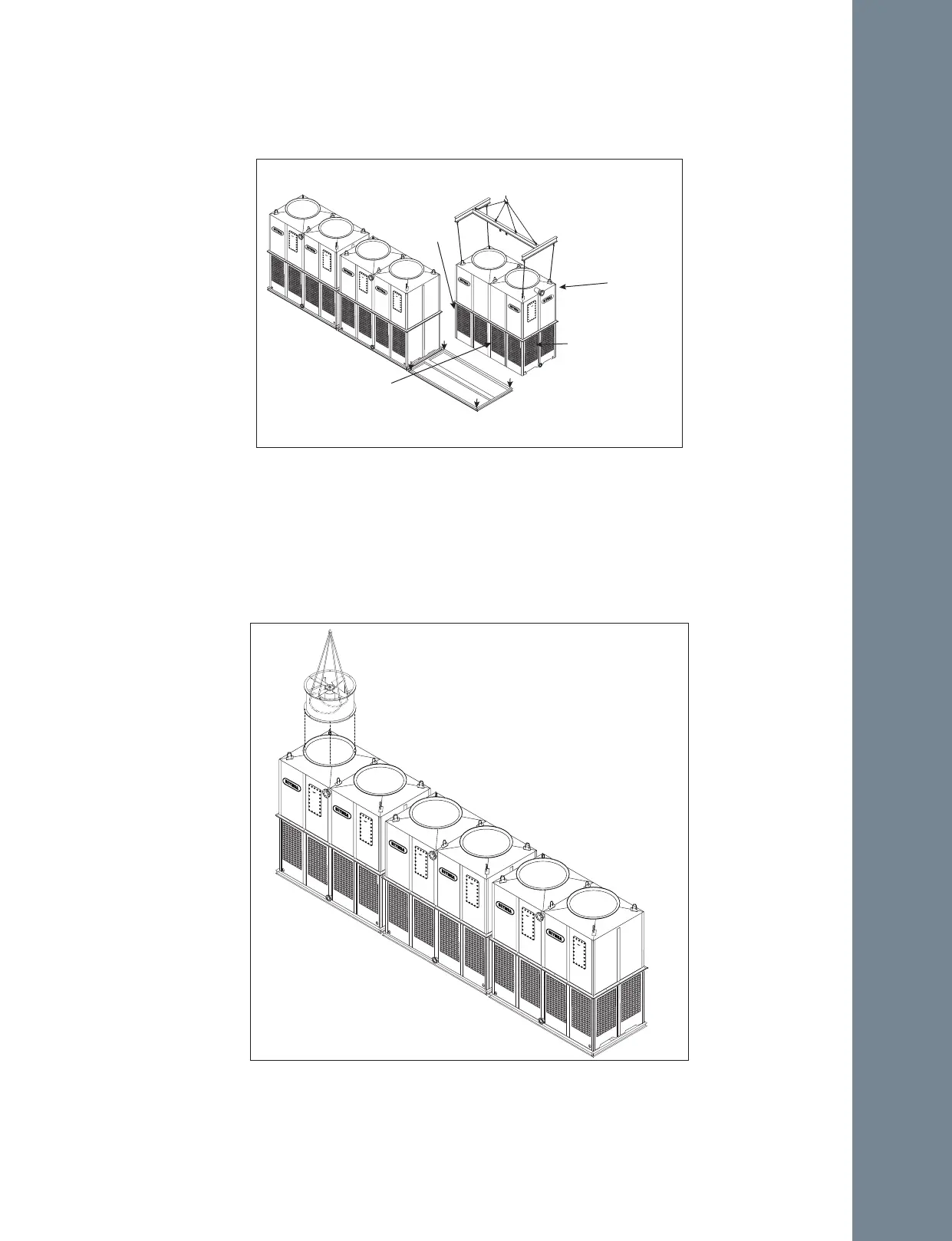

Figure A-69: Last module lifting for a short side arrangement (RTM-B-S)
NO air inlet
louvers
(back side)
Air inlet
louvers
Air inlet louvers
(back side)
Air inlet
louvers
Figure A-70: Fan Duct installation for a Modular Tower (RTM-B-S)
