4
I-SCE (09-18) PN207697R9
SPECIAL INSTALLATIONS (AIRCRAFT HANGARS/GARAGES)
Installations in aircraft hangars should be in accordance with NFPA No. 409 (latest edition), Standard for Aircraft
Hangars, in public garages in accordance with NFPA No. 88A (latest edition), Standard for Parking Structures, and
for repair garages in accordance with NFPA No. 88B (latest edition), Standard for Repair Garages. In Canada,
installations in aircraft hangars should be in accordance with the requirements of the enforcing authorities and in
public garages in accordance with CSA B149 codes.
WARRANTY
Refer to the limited warranty information on the Warranty Card in the Owner’s Envelope.
Warranty is void if . . .
a. Separated-combustion heaters are used in atmospheres containing flammable vapors or atmospheres containing
chlorinated or halogenated hydrocarbons or any contaminant (silicone, aluminum oxide, etc.) that adheres to
the spark ignition flame sensing probe.
b. Wiring is not in accordance with the diagram furnished with the heater.
c. Unit is installed without proper clearance to combustible materials.
INSTALLATION
DIMENSIONS
All dimensions for the model SCE unit heater are shown in Figure 2 and are listed in Table 1.

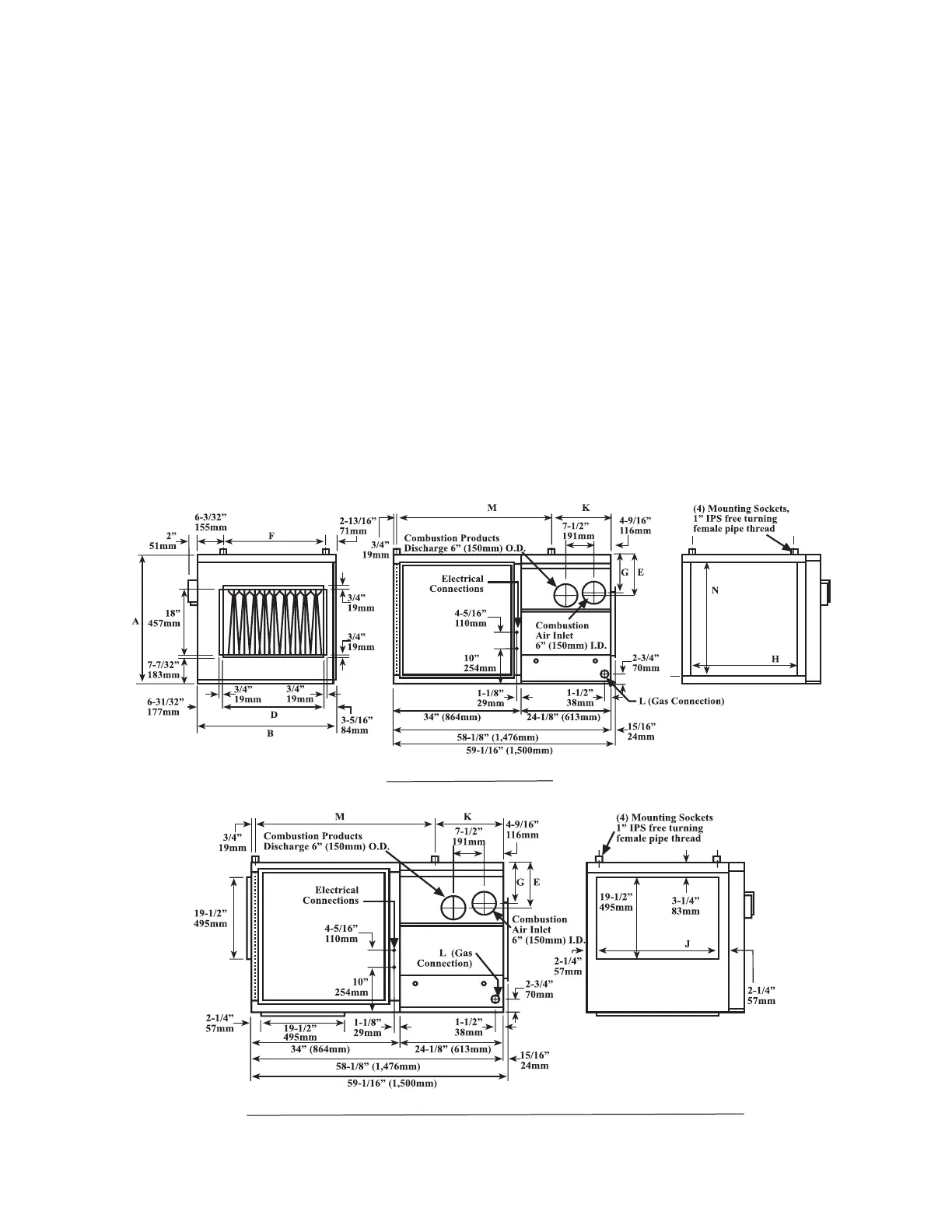

Figure 2. Model SCE Dimensions in Inches (±1/8 (mm ±3))
STANDARD MODEL SCE
MODEL SCE WITH OPTIONAL HORIZONTAL INLET WITH DUCT FLANGES
