installed in accordance with the Standard
for Parking Structures, ANSI/NFPA 88A,
or the Standard for Repair Garages,
ANSI/NFPA 88B, or the Canadian
Natural Gas and Propane Installation
Code, CSA B149.1, and are so marked.
Ensure that minimum clearances will be
maintained to vehicles parked below the
heater.
F. The standard heaters are approved for
installations between 0 - 2000ft
(0 - 610m) for the US and 0 - 4500 ft
(1370m) for Canada. Conversion kits are
available on installations above these
heights in the USA.
1.2 Heater Suspension
Attachment to the heater support lugs should
be made by D shackle. The hanging
attachments to overhead steelwork etc. must
be purpose made to sound engineering
practice or supplied by others.
They must be adequately fixed and designed to
carry the whole weight of the heater. In the
event of suitable roof steelwork being
unavailable, additional steelwork should be fitted
to enable vertical hangers to be used for
suspending the heaters.
These methods are illustrated in Figure 1. If
there are any doubts as to the strength or
suitability of roof steelwork to which heaters are
to be suspended, please refer to a Consultant,
Architect or owner of the building.
It is recommended that the heater is raised to its
final position once the assembly of the tube/
bracket/reflector has been completed. Longer
tube assemblies may be raised in more than
one sub-assembly with final tube connection
made in the air.
The suggested mounting heights for heaters are
given in the chart next page.

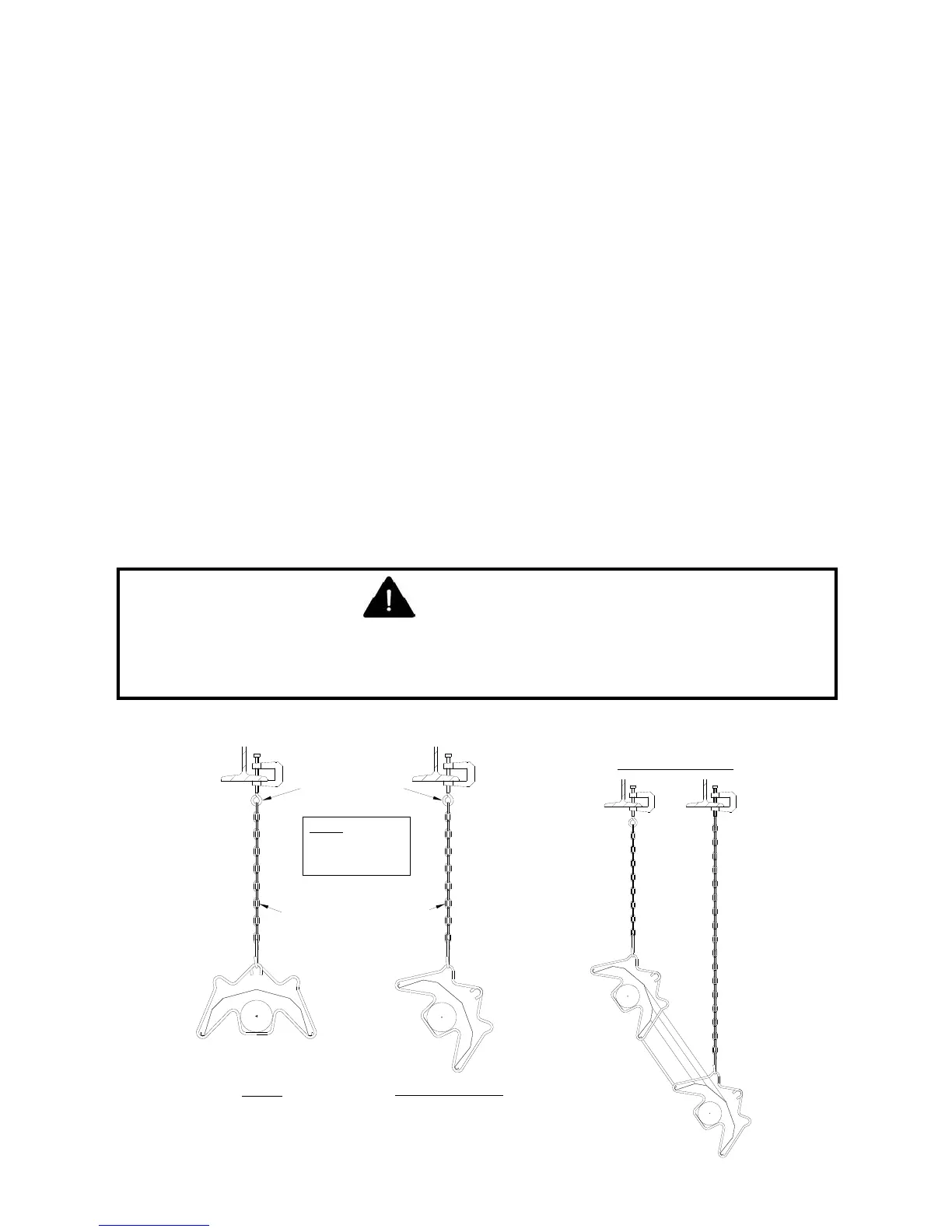

Figure 1. Recommended Methods of Heater Suspension.
WARNING:
If not installed, operated and maintained in accordance with the manufacturer’s instructions,
this product could expose you to substances in fuel or from fuel combustion which are
known to the state of California to cause cancer, birth defects or other reproductive harm.
CHAIN
55° SUSPENSION
2/0 GA CHAIN
(TWISTED LINK, PLATED)
NOTE.
HOOKS ARE TO
BE CLOSED UP
AFTER ASSEMBLY
EYE HOOKS
EXHAUST
END
BURNER
END
U TUBE VARIANTS
Suitable Chain
Working Load Limit
100lb.
