4. Servicing Instructions.
These appliances should be serviced annually by a competent person to ensure safe
and efficient operation. In mildly dusty or polluted conditions more frequent
servicing may be required. Servicing work should be carried out by a qualified
mechanical contractor.
Soft
Brush
Phillips
Screwdriver
Leather
Faced
Gloves
½”
Wrench
4.1 Tools Required.
The following tools and equipment are advisable
to complete the tasks laid out in this manual.
Suitable alternative tools may be used.
Large Adjustable
wrenches for fitting
of Gas Flex.
5/32”
(4mm)
Allen
Manometer
Multimeter
4.2 Burner Description.

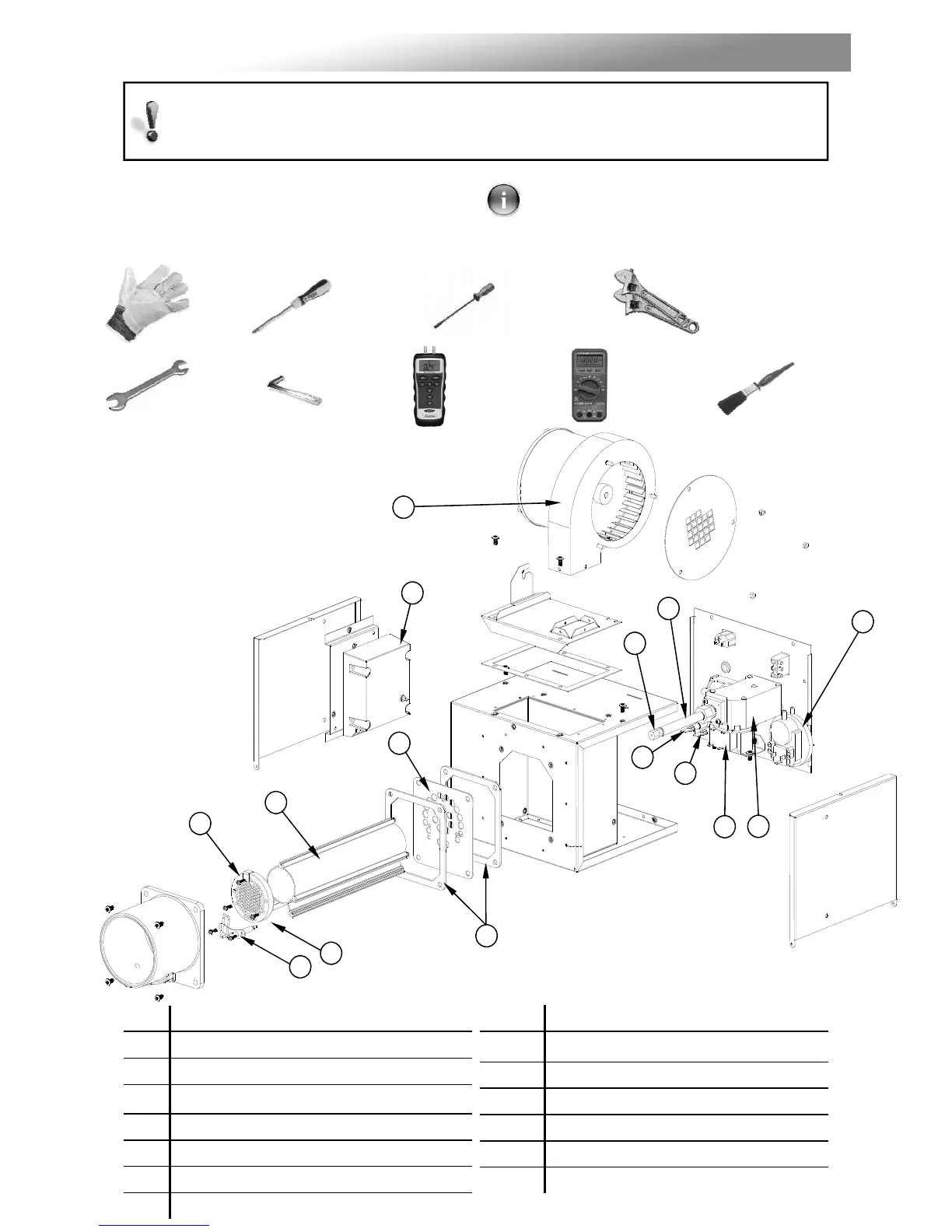

Figure 20. Burner breakdown
J Jet Carrier
K Combustion Fan
L Pressure Switch
M Gaskets
N Transformer
P Burner Orifice Plate
Q Flame Plate (not shown)
A Ignition Controller
B Gas Valve
C Power On Red LED
D Burner On Yellow LED
F Burner Tube
G Burner head
H Injector
I Igniter Assembly
F
M
A
B
C
D
G
H
I
J
K
L
Note: Cables Omitted
For Clarity
N
P
Q
To Next Page
