12
VZ-VZH-VZT-IOM (08-24) 1047121-A
10-FOOT (3-METER) 20-FOOT (6.1-METER)
30-FOOT (9.1-METER)
40-FOOT (12.2-METER)
50-FOOT (15.2-METER)
60-FOOT (18.3-METER)
70-FOOT (21.3-METER)
A = BURNER CABINET E = SUSPENSION BRACKET
B = SUSPENSION BRACKET WITH CLAMP F = COUPLING
C = REFLECTOR G = EXTENSION TUBE
D = BURNER TUBE H = VENT ADAPTER
A
B
C
D
E
FG
H
SYSTEM CONFIGURATIONS
Systems are shipped disassembled and are comprised of a burner cabinet and a tube assembly. Refer to the following
tables and figures for system configuration and assembly details.
NOTE: The burner tube is the tube connected to the burner cabinet. Additional tubes in the assembly
are hereafter referred to as extension tubes.
Straight Tube Configurations
More than one tube assembly package may be combined to configure the desired tube length.

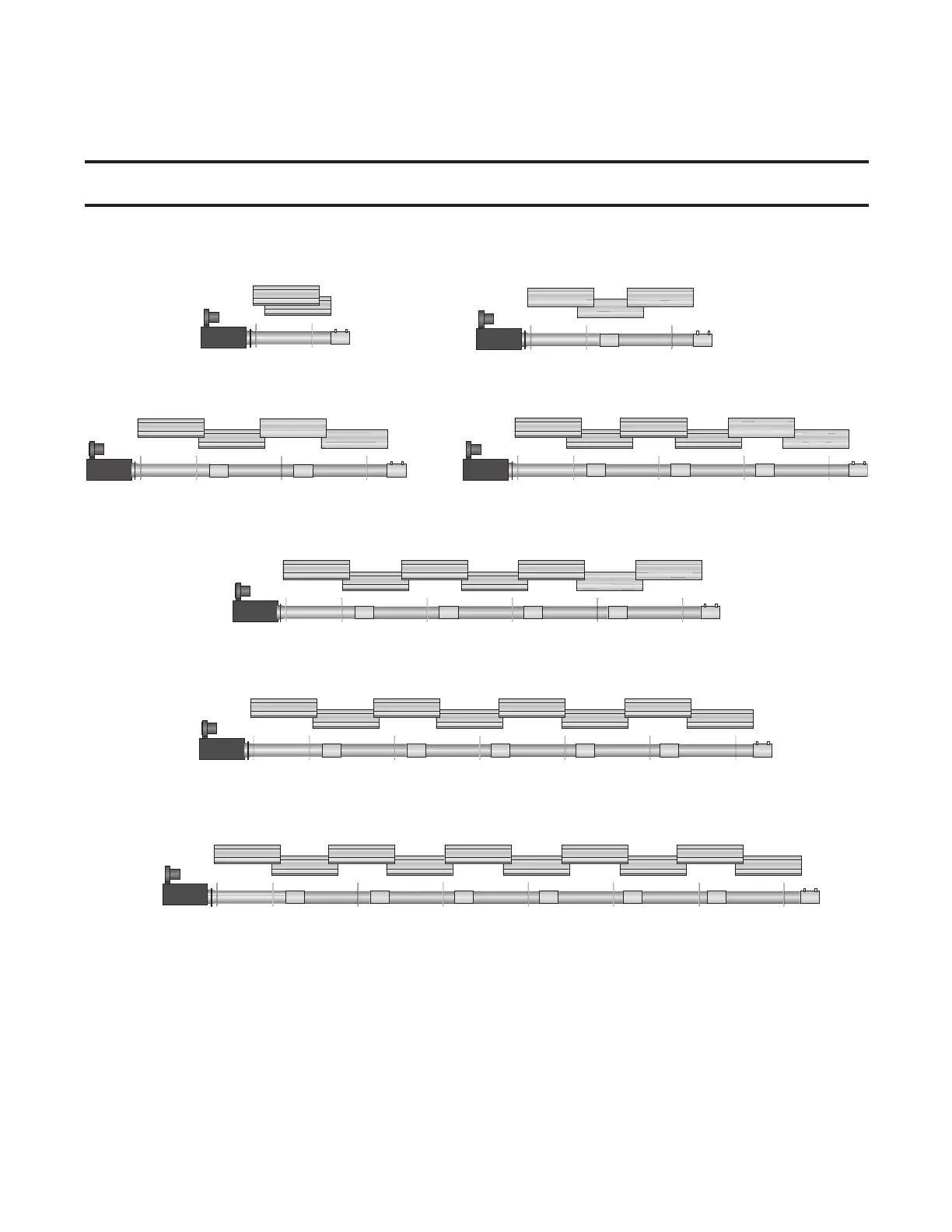

Figure 5. Straight Tube Configurations
