Reznor VZ - Left Side View

7
VZ-VZH-VZT-IOM (08-24) 1047121-A

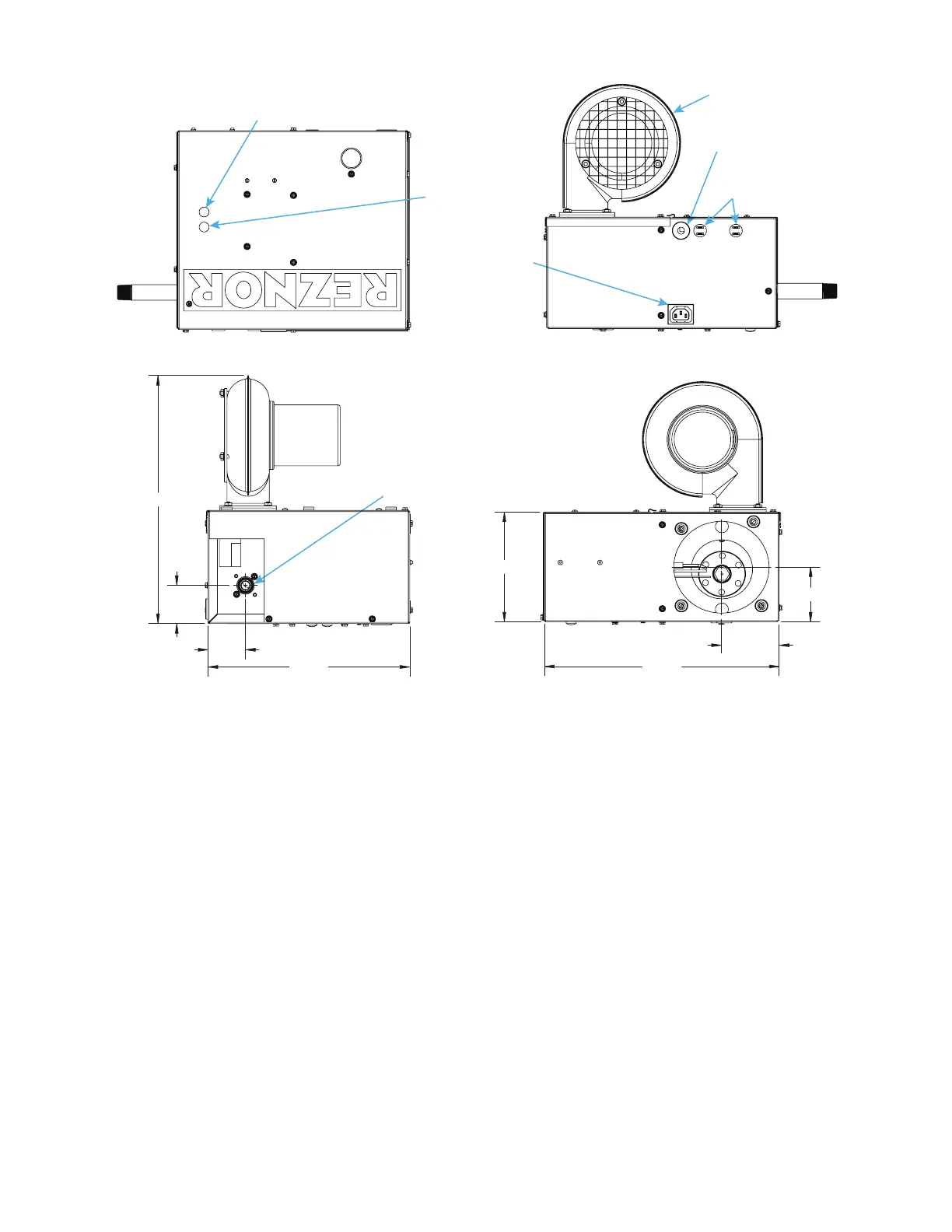

Figure 3. Model VZT Burner Cabinet Dimensions
BOTTOM VIEW
REAR VIEW
FRONT VIEW
LEFT SIDE VIEW
SUPPLY WIRING
ENTRANCE
BLOWER AND
MOTOR ASSEMBLY
BLOWER
MOTOR
PLUG
GAS
CONNECTION
3 (77)
12-1/2
(318)
10-3/4
(274)
2-1/64
(52)
13-15/64 (337)
6-1/32 (154)
3-1/16
(78)
2 (51)
RECEPTACLE
LOW-FIRE
INDICATOR
LIGHT
HIGH-FIRE
INDICATOR LIGHT
THERMOSTAT
CONNECTIONS
