19
VZ-VZH-VZT-IOM (08-24) 1047121-A

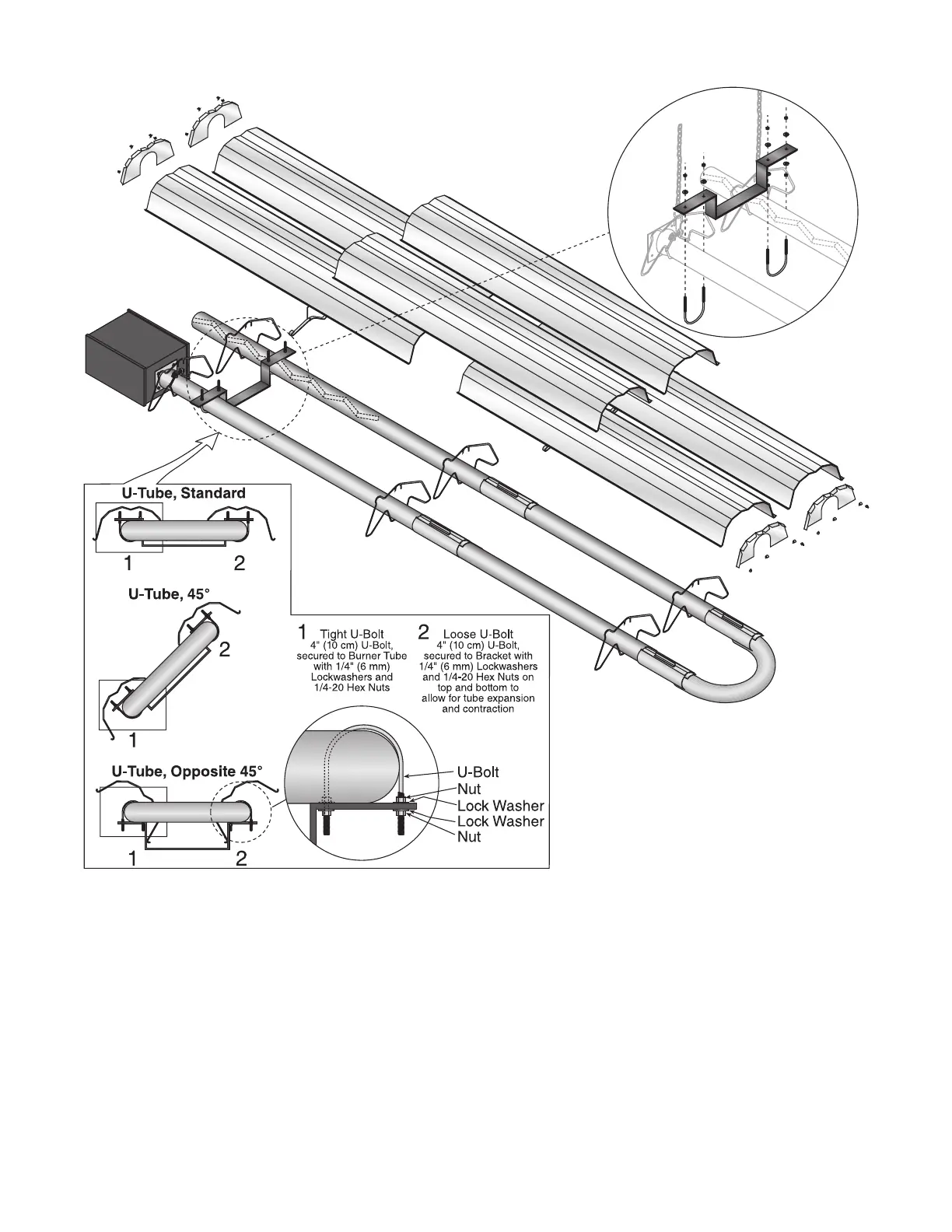

Figure 11. Installation of U-Tube Support Bracket
5. Install reflectors over all tubes except U-tubes (for L-tubes, refer to APPENDIX: L-TUBE REFLECTORS):
a. Slide first reflector through first suspension bracket as shown in Figure 12. Reflector must slide at least 2
inches (4 cm) through suspension bracket with clamp next to burner cabinet.
