INSTALLATION
If your system is equipped with
a GPS, it is required that you bypass
your existing GPS and splitter on the
roof. A simple barrel connector will
allow you to bypass the MotoSAT GPS
and splitter. The coax cable inside the
mount must go directly to the LNB from
the controller.

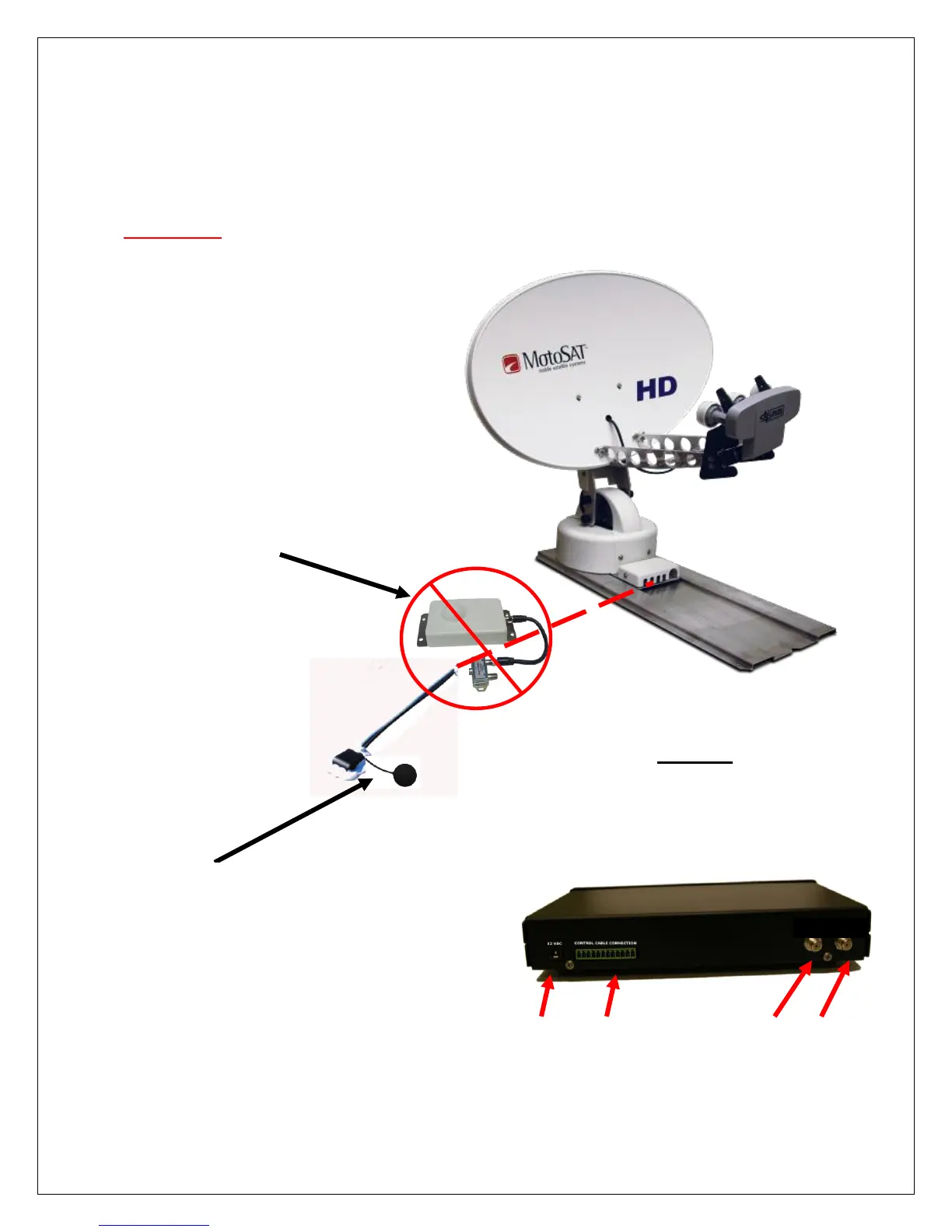

The GPS/Splitter is located in
two possible locations....
1. On the roof near the GPS or
2. Under the cover located in front
of the mount as shown.
Use a threaded coax barrel connector to
bypass the GPS/Splitter if required.
12 Volt power Control cable
w/GPS
To SAT Rec To Mount
EAGLE RE-1 Controller
Note: The GPS may work inside of a RV if
the RV has a non-metal roof. Try it inside
first.
Or install the GPS on the roof
of the RV near the cable
entrance in the roof.
