5 Antenna Recommendation
Any antenna with a male RPSMA fitting 50 Ohm impedance and matched to the 902-928MHz or
868MHz ISM band can be used. The recommended antenna for the TXMOD is the 3 dBi half wave
dipole which is provided in the kit and is available for purchase on the RFDesign store.

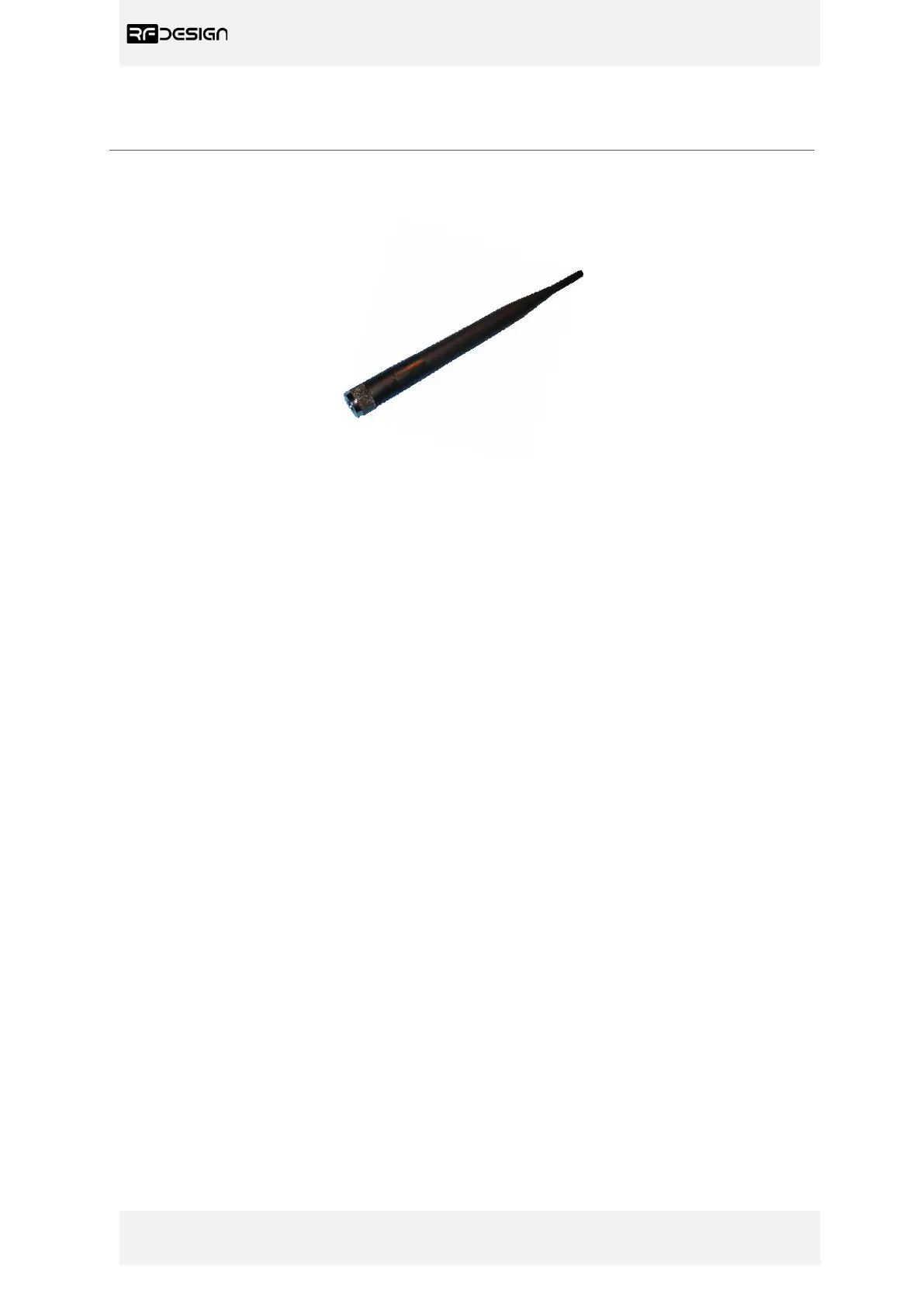

Figure 17 -: 900MHz Half Wave Dipole Antenna 3 dBi.
When assembling and disassembling the TXMOD from the transmitter, be aware the antenna may
have to be removed then reattached due to mechanical interference.
