RGBlink mini-edge Quick Start

www.rgblink.com
12

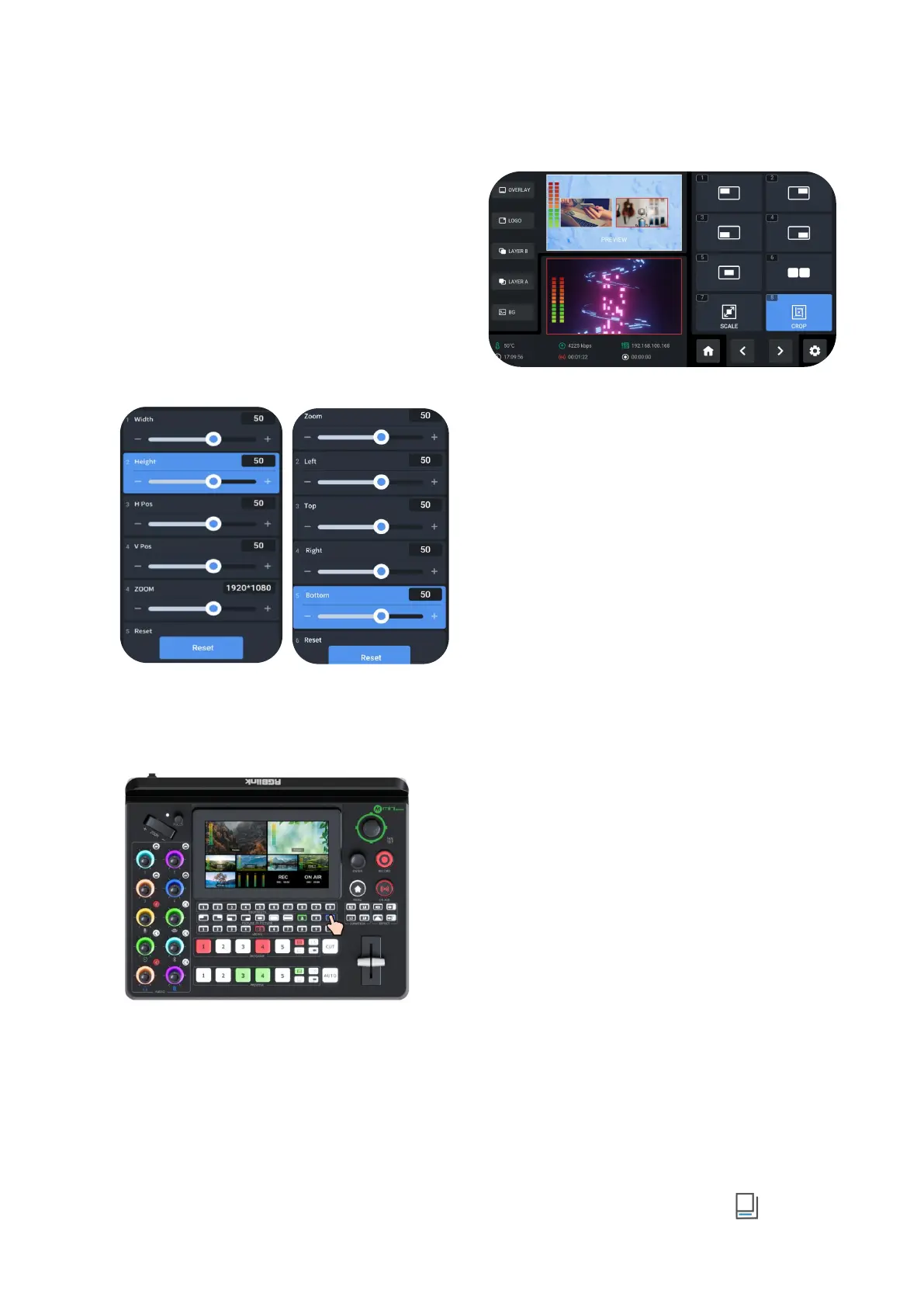

Selecting Layout
The user can gain access to Layout Interface through
the following methods:
1. Long press Layer A or Layer B button.
2.
Push MENU button to enter menu interface. Use
ENTER knob to move the cursor to LAYOUT icon,
press ENTER knob again to enter.
Select required layout for Layer A and place it on the
background.
Layer Scaling and Cropping
mini-edge supports layer scaling and cropping.
Rotate ENTER knob to move the cursor to SCALE or
CROP icon, press ENTER knob again to enter the
interface for more specific parameters.
Use ENTER knob to browse through item and then
do settings by using toggle on the control panel.
Adding Layer B
Enabling Layer B
Push Layer B button on the control panel to edit the
layer.
This operation also simultaneously enables layer B.
