RGBlink Mini User Manual

mini User Manual
16

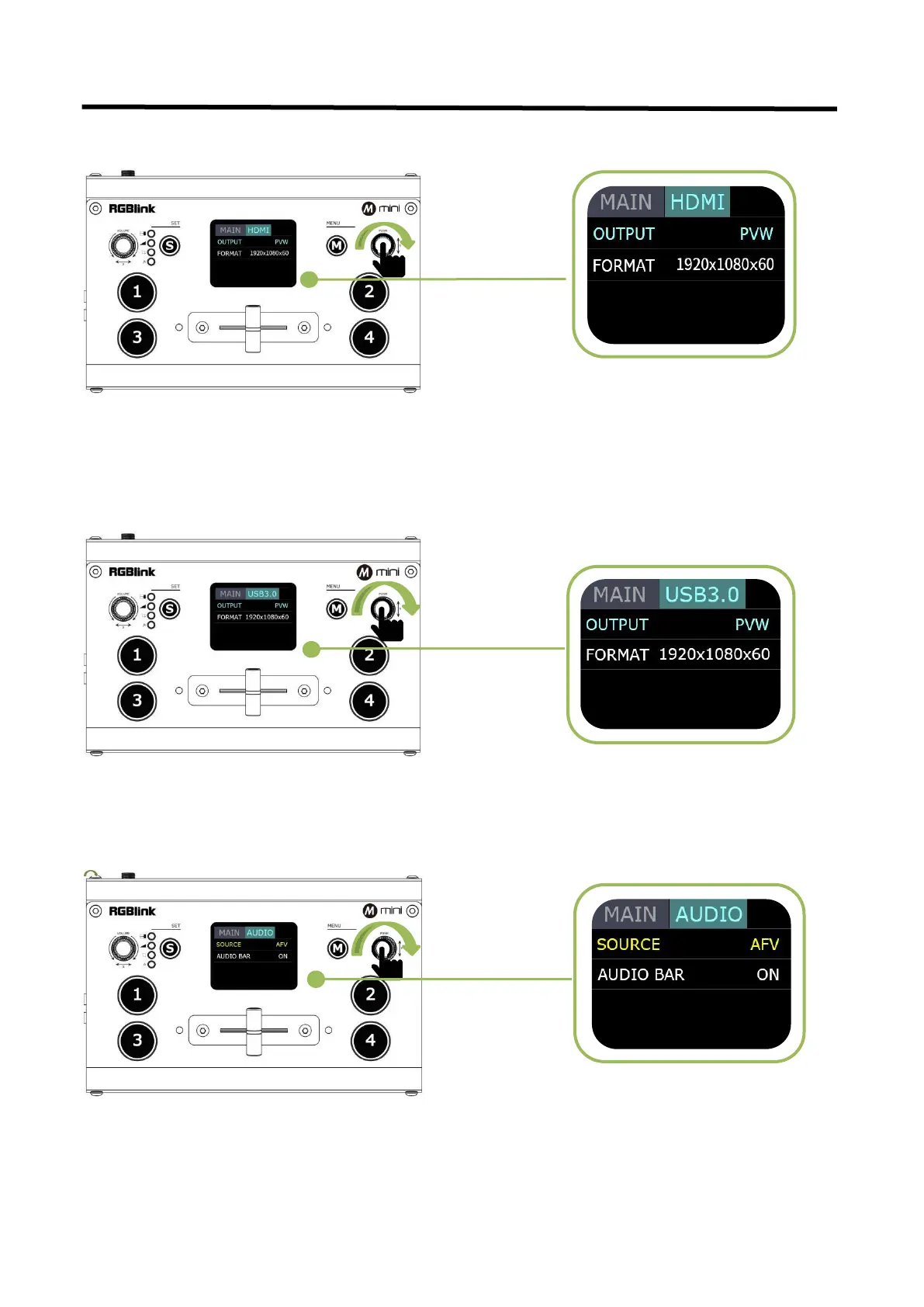

3.1.2 HDMI
3.1.3 USB3.0
3.1.4 Audio
1.Push MENU, rotate and push 「 Y 」 knob to
enter the third menu item<USB3.0>
1.Push MENU and select the second menu item
<HDMI>
Push「Y」knob to enter <HDMI> menu.
2.rotate 「Y」knob to select PVW output and
PGM output for HDMI.
Output：PVW or PGM
Format：1920×1080@60
2.rotate 「Y」knob to select PVW output and
PGM output for HDMI.
Output：Choose PGM or PVW
Format：1920×1080@60
2.Rotate
「
Y
」
knob to select
Audio Source
：
AFV or LINE IN
Audio Bar
：
ON/OFF
1.Push MENU,rotate and push 「Y」knob to
enter the fourth menu item<AUDIO>

RGBlink Mini Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Video Outputs	1x HDMI
Audio Inputs	HDMI embedded
Audio Outputs	HDMI embedded
Control	USB
Transitions	Cut, Fade, Wipe
Power Supply	12V DC
