3.2.3 PIP

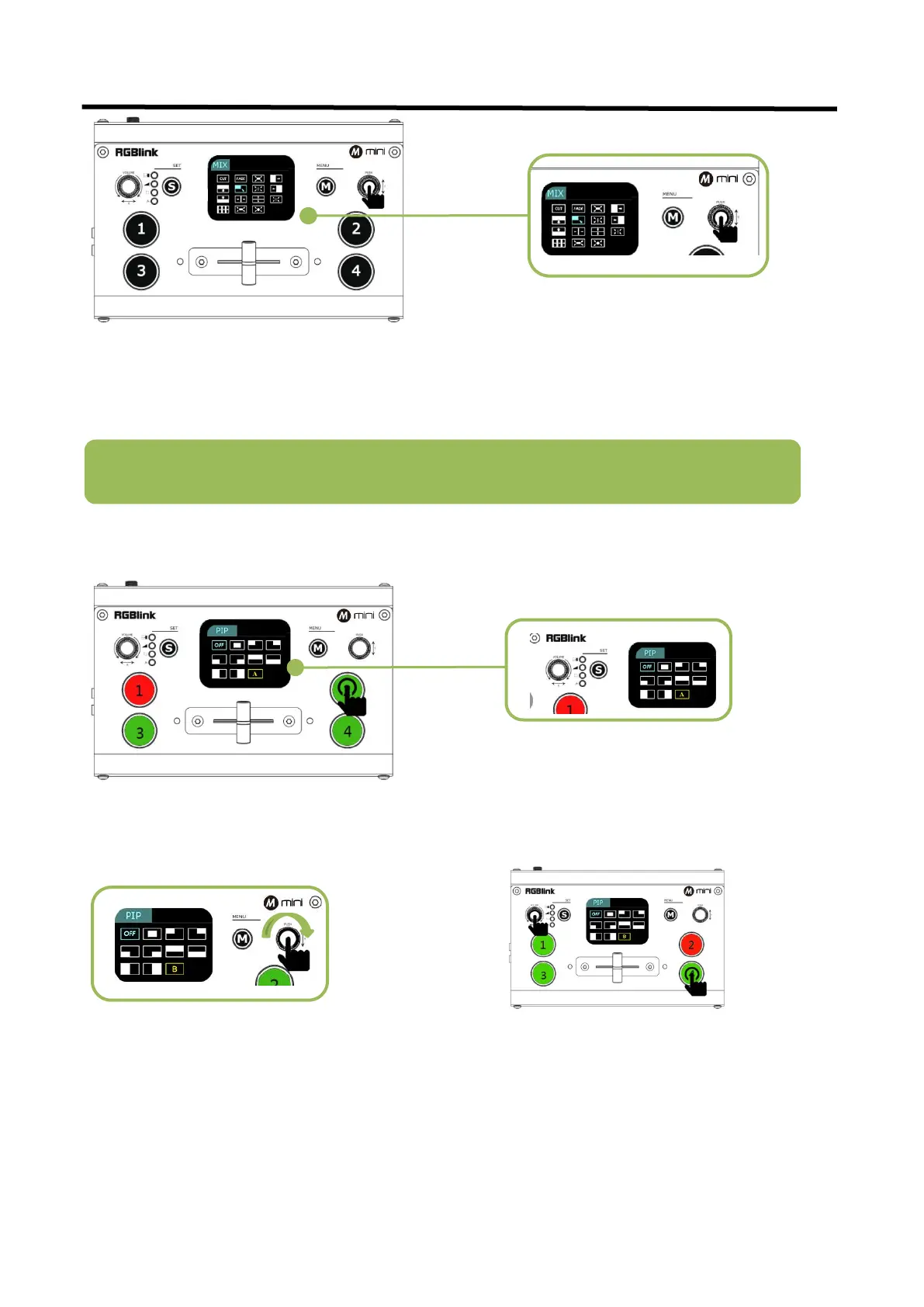

Push S button three times to enter <PIP> menu and select PIP mode(9 PIP modes)The steps are as follows：
Note: In T-Bar mode, you can directly control the progress of the T-Bar manually and customize the
switching.
2. Press the「Y」knob and wait for the option
to turn yellow.3. Turn the 「 Y 」 knob to
change the parameters.
3.Press the
「
Y
」
knob to confirm.
1. Select the signal you want for background.
(When the letter is A, it means background
signal)
2. Push "S" button three times to enter PIP
setting page.
3.Rotate
「
Y
」
button to select layout you
want and confirm by Pressing.
4.Push「X」button first and then push signal
button for sub-picture, when letter is B
meaning sub-picture.

RGBlink Mini Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Video Outputs	1x HDMI
Audio Inputs	HDMI embedded
Audio Outputs	HDMI embedded
Control	USB
Transitions	Cut, Fade, Wipe
Power Supply	12V DC
