RGBlink Mini User Manual

mini User Manual
8

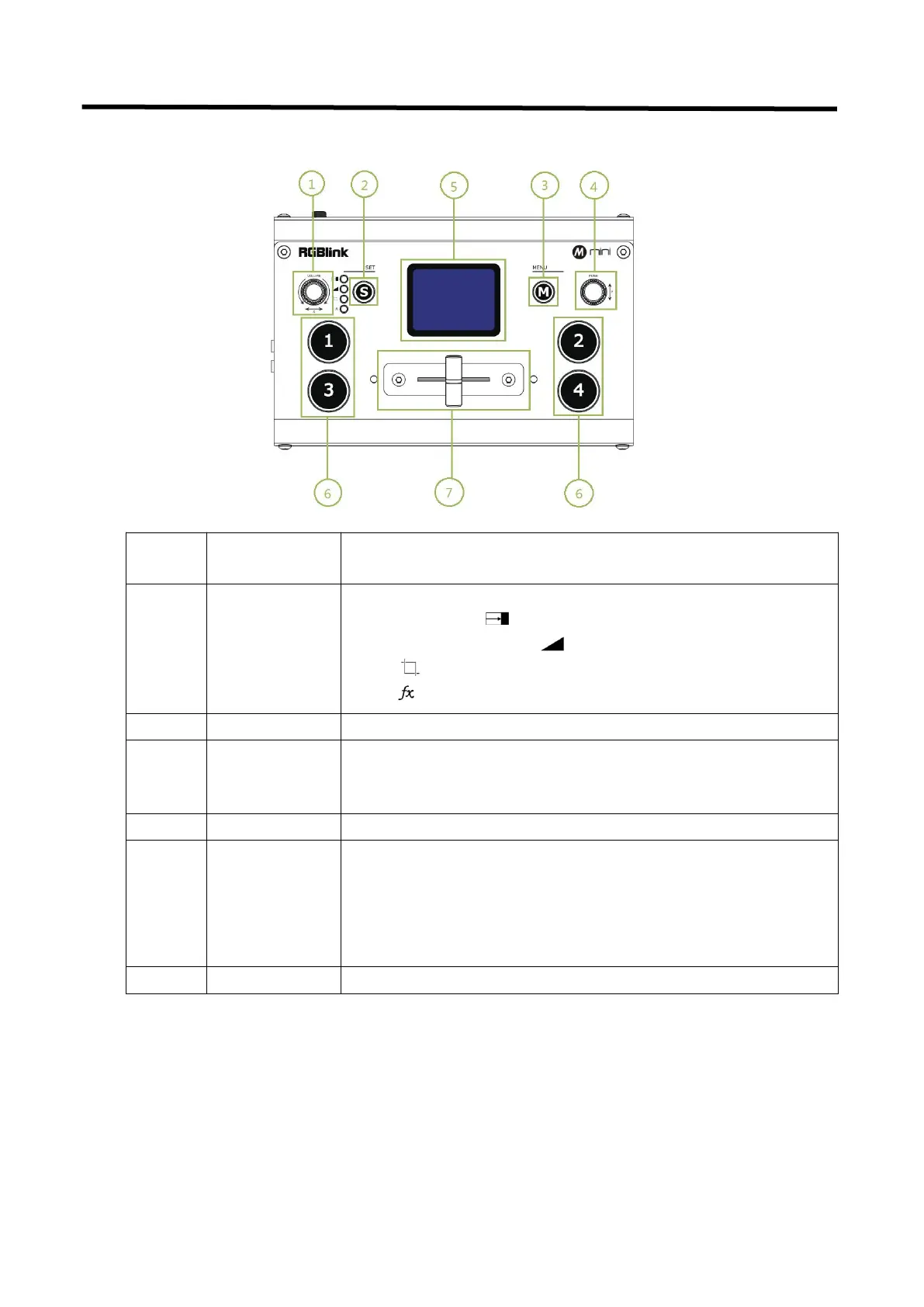

1.2.2 Front Panel
1
VOLUME/X
Turn to adjust volume of PGM
Control camera left-right spinning when it is in PTZ setting
2
S
Function selection button to select
1. Transition Effect ( ),
2. Switch Mode(MODE:CUT or T-Bar),
3. PIP( ),
4. FX( , preview 4 inputs)
3
M(menu)
Menu and back button
4
PUSH/Y
Y:turn knob to select menu item, push to confirm
PUSH:Push knob to quickly switch HDMI Out between 6-Picture PVW
and PGM when TFT is under the state of previewing 4 inputs
5
TFT display
To display 4 inputs and menu
6
1,2,3,4
4 inputs,
1. red: is on air (PGM),
2. static green: signal is standing by,
3. flashing green: ready to be switched,
4. No light: input source is not supported
7
T-Bar
Manual switch, push to left end or right end to switch signal to PGM

RGBlink Mini Specifications

General

Video Inputs	4x HDMI
Ethernet	Yes
Video Outputs	1x HDMI
Audio Inputs	HDMI embedded
Audio Outputs	HDMI embedded
Control	USB
Transitions	Cut, Fade, Wipe
Power Supply	12V DC
