mini User Manual
9

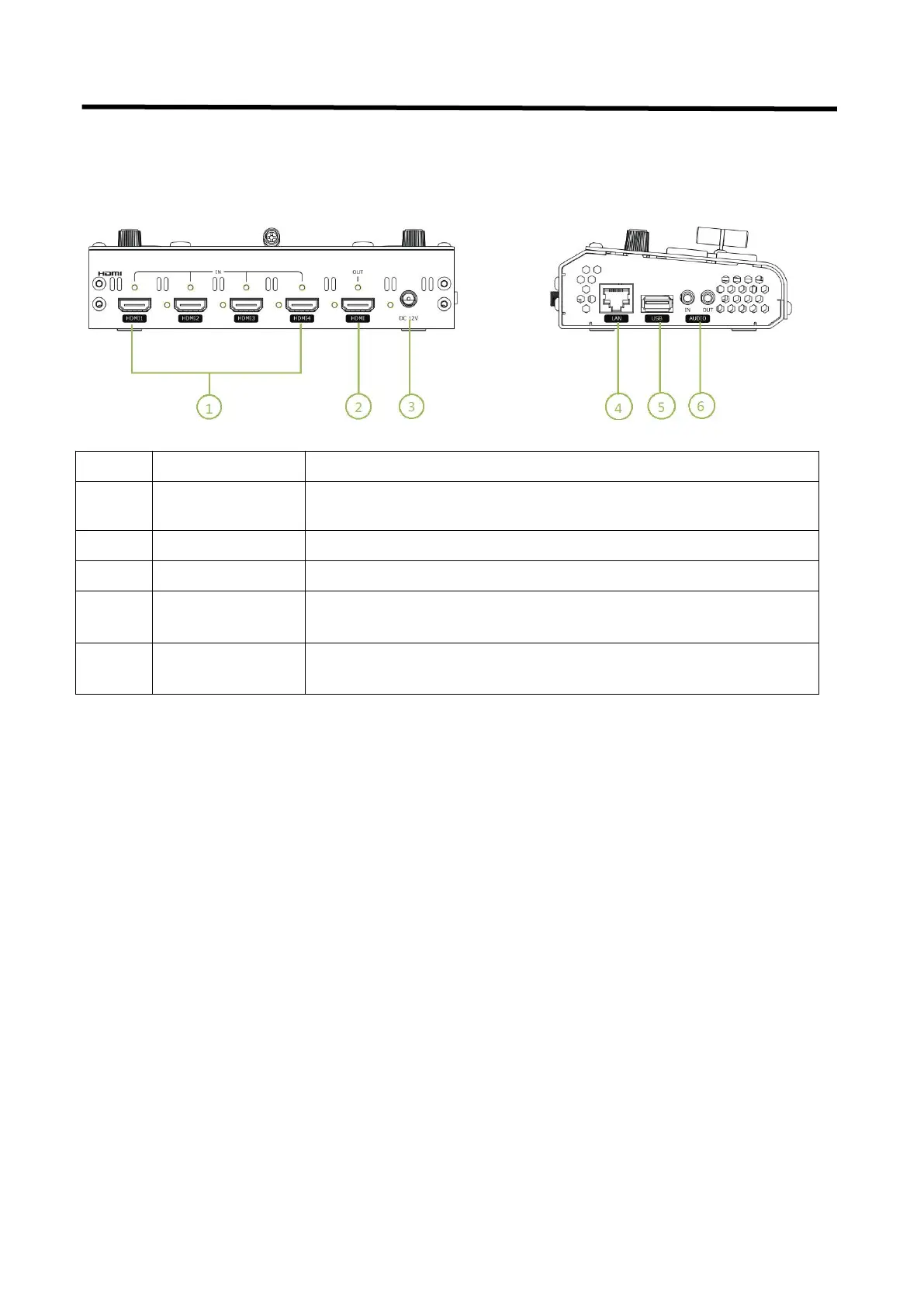

1.2.3 Interface Panel
HDMI IN
4 HDMI Inputs, connect to input source from HD camera or PC
HDMI OUT
1 HDMI Output port, connect to display to show Preview (6 pictures) or
PGM.
DC 12V
1 DC Jack for power input, connect to 12V/4A power adapter.
LAN
Communication port to link dedicated software for control
USB
USB3.0 output, capture signal via third party streaming software and push
to live broadcasting websites
AUDIO IN/OUT
AUDIO In, analog audio input port, connect to microphone with power
AUDIO OUT, analog audio output port, connect to loudspeaker
