RGBlink Mini+ User Manual

mini+ User Manual
39
5.2.7 PTZ Camera Setting
When controlling the PTZ camera, the computer, mini +
and PTZ camera should be in the same network segment.
1. Set the corresponding communication port on the PTZ
camera, such as VISCA or UDP port 1259.

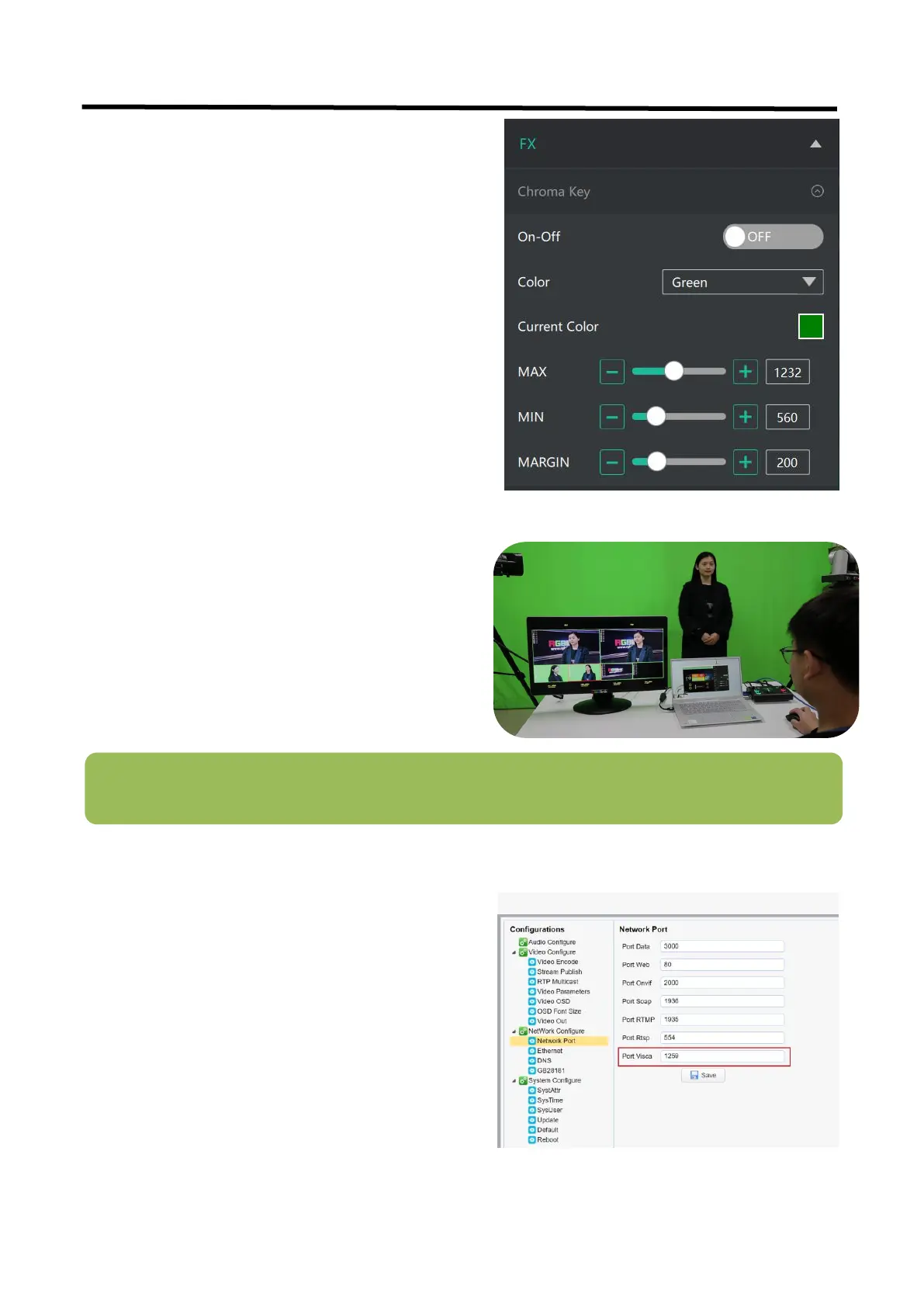

2.adjust color in the range of MAX, MIN and MARGIN. You
can click in the MAX MIN MARGIN data input box to
achieve a more precise keying effect.
Note: When using chroma key, make sure that the layer you want to edit is on the top layer, which is the B
layer in the PIP setting, otherwise you may not see the chromakey effect.
3.Chroma key effect on mini+ as shown in the figure.

RGBlink Mini+ Specifications

General

Control	USB
Switching	Seamless
Downstream Key	Not supported
Audio Mixer	Not supported
Multiview	Not supported
HDR Support	Not supported
HDCP Support	Yes
