mini+ User Manual

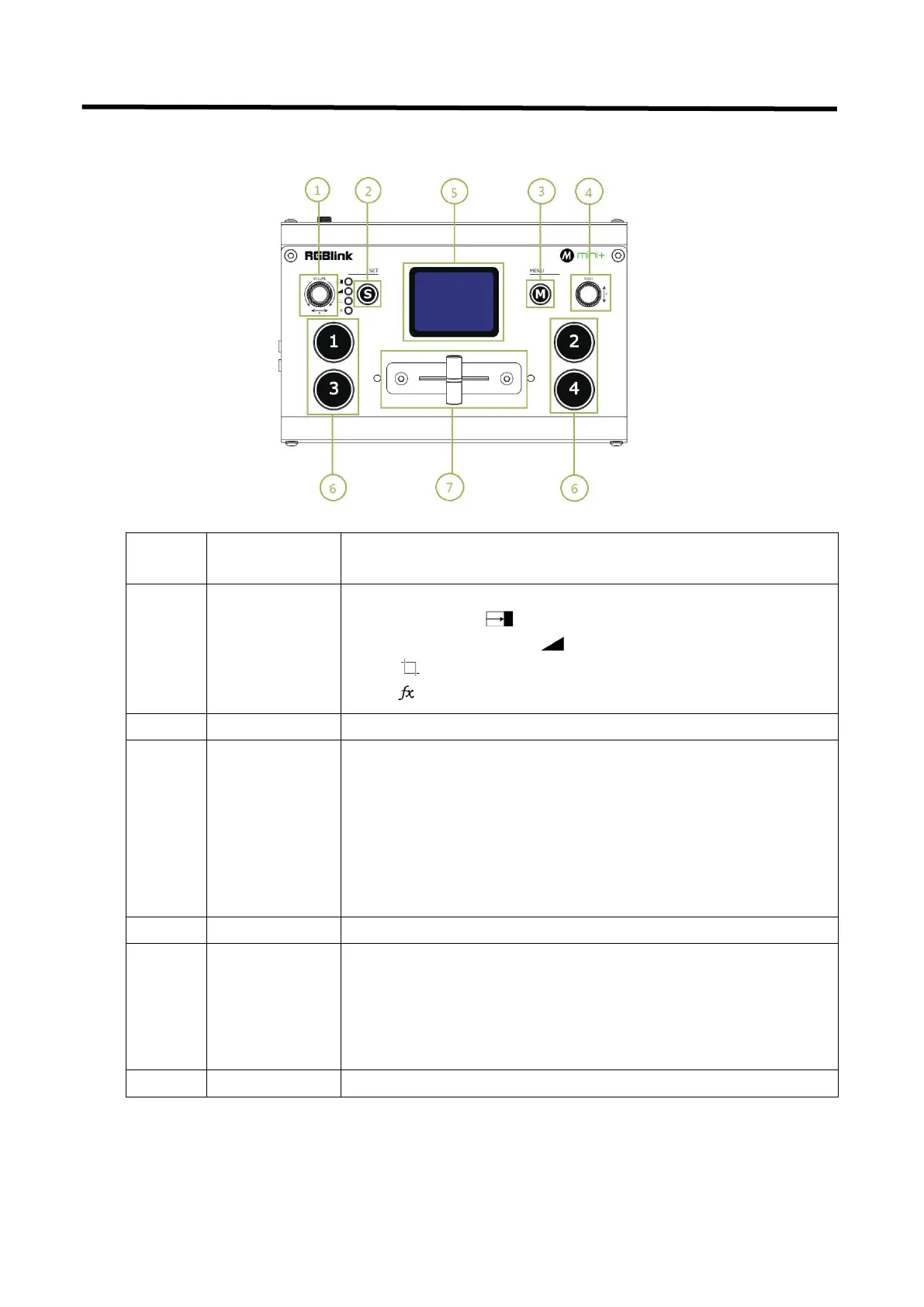

1.2.2 Front Panel

VOLUME/X

1. Turn to adjust volume of PGM

2. Control camera left-right spinning when it is in PTZ setting

Function selection button to select

1. Transition Effect ( ),

2. Switch Mode(MODE:CUT or T-Bar),

3. PIP( ),

4. FX( , enter PTZ camera setting)

M(menu)

Menu and back button

PUSH/Y

1. turn knob to select menu item, push to confirm

2. Push knob to quickly switch HDMI Out between 6-Picture PVW and

PGM when TFT is under the state of previewing 4 inputs

3. Turn knob to control camera lens position, moving up and down

under PTZ control menu-Pos

4. Turn knob to control camera lens zoom in and out under PTZ control

menu-Zoom

TFT display

To display 4 inputs and menu

1,2,3,4

4 inputs,

1. red is on air (PGM),

2. static green is signal is standing by ,

3. flashing green: ready to be switched

4. No light: input source is not supported

T-Bar

Manual switch, push to left end or right end to switch signal to PGM
