Accessories
ELECTRONIC AIR CLEANER
Line voltage power can be supplied from the terminal labeled
“EAC” and a line voltage neutral terminal on the control board.
This will power the electronic air cleaner whenever the circulat-
ing air blower is in operation.
HUMIDIFIER
Line voltage power is supplied from the terminal labeled “HUM”
to a line voltage neutral terminal on the control board. This will
power the humidifier whenever the induced draft motor is ener-
gized.
NOTE: Maximum current – 1.0 amps for each option (humidifier
or electronic air cleaner).
RXGW-C01 4-INCH FLUE ADAPTER
(See Figure 26)
Refer to “Venting” section of this manual for more information.
See National Fuel Gas Code for sizing options.
FILTERS (See Figure 27)
Keep filters clean at all times. A filter is not provided with the
furnace, but one must be field-supplied and installed.
It is recommended to replace the furnace filter periodically to
maintain optimum furnace performance.
RXGW-B01 CHIMNEY ADAPTER
IMPORTANT: CHIMNEY ADAPTER IS CERTIFIED FOR USE
ON 80% SINGLE STAGE CONSTANT TORQUE MODELS.
This appliance is CSA certified for use with RXGW-B01 Chimney
Adapter. Refer to Kit Installation Instructions 92-101682-01.
ACCESSORIES
FIELD INSTALLED OPTIONAL ACCESSORIES
ST-A1220-27-00
1. STANDARD 3” FLUE CONNECTION.
2. 4” ADAPTER
SEE NATIONAL FUEL GAS CODE FOR SIZING OPTIONS
1.
2.
ST-A1220-27

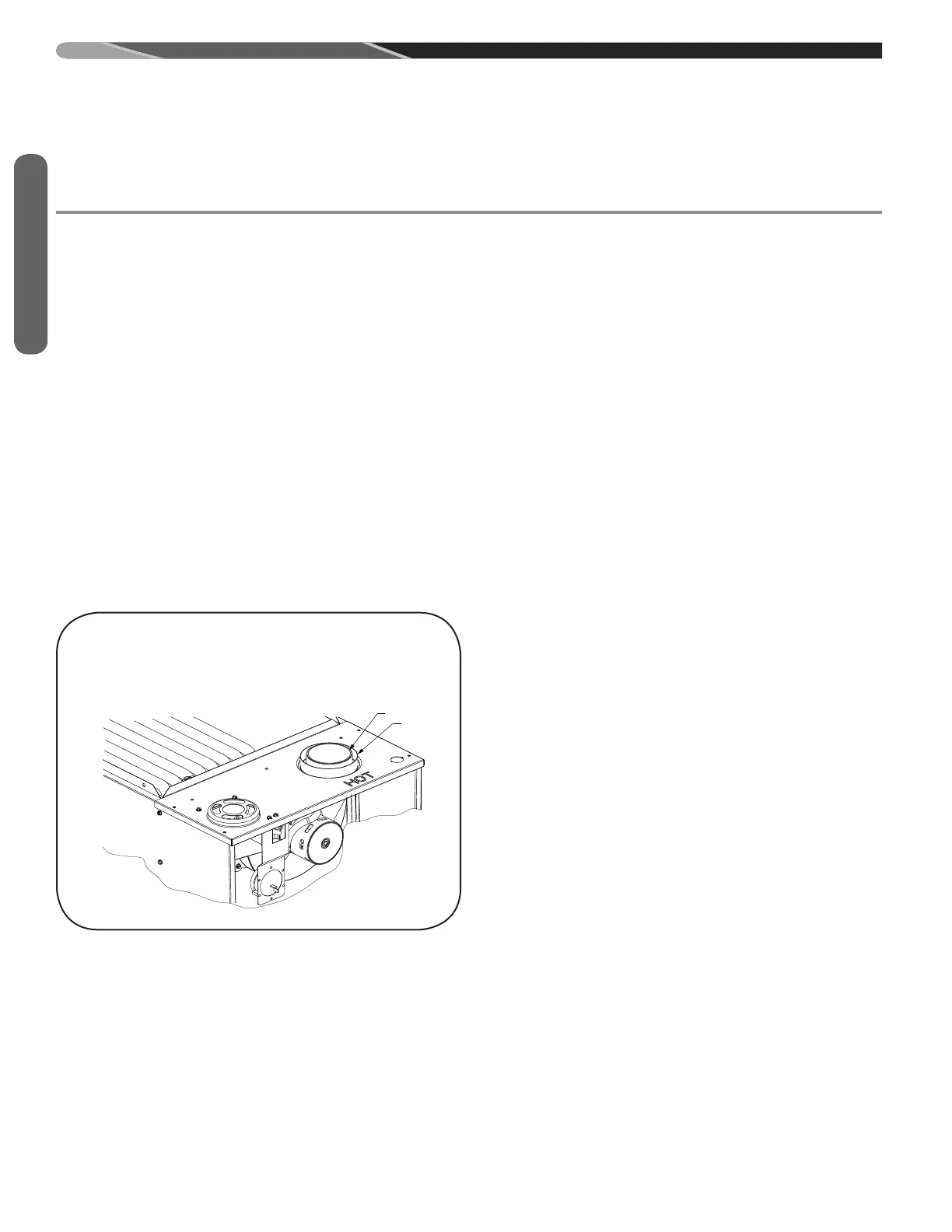

FIGURE 26
1. STANDARD 3” FLUE CONNECTION
2. 4” ADAPTER OPTIONAL
SEE NATIONAL FUEL GAS CODE FOR SIZING OPTIONS
