34
TWINNING
CONTROL BOARDS (cont.)
R
Y
G
W2
W1
COOLING
CONTACTOR

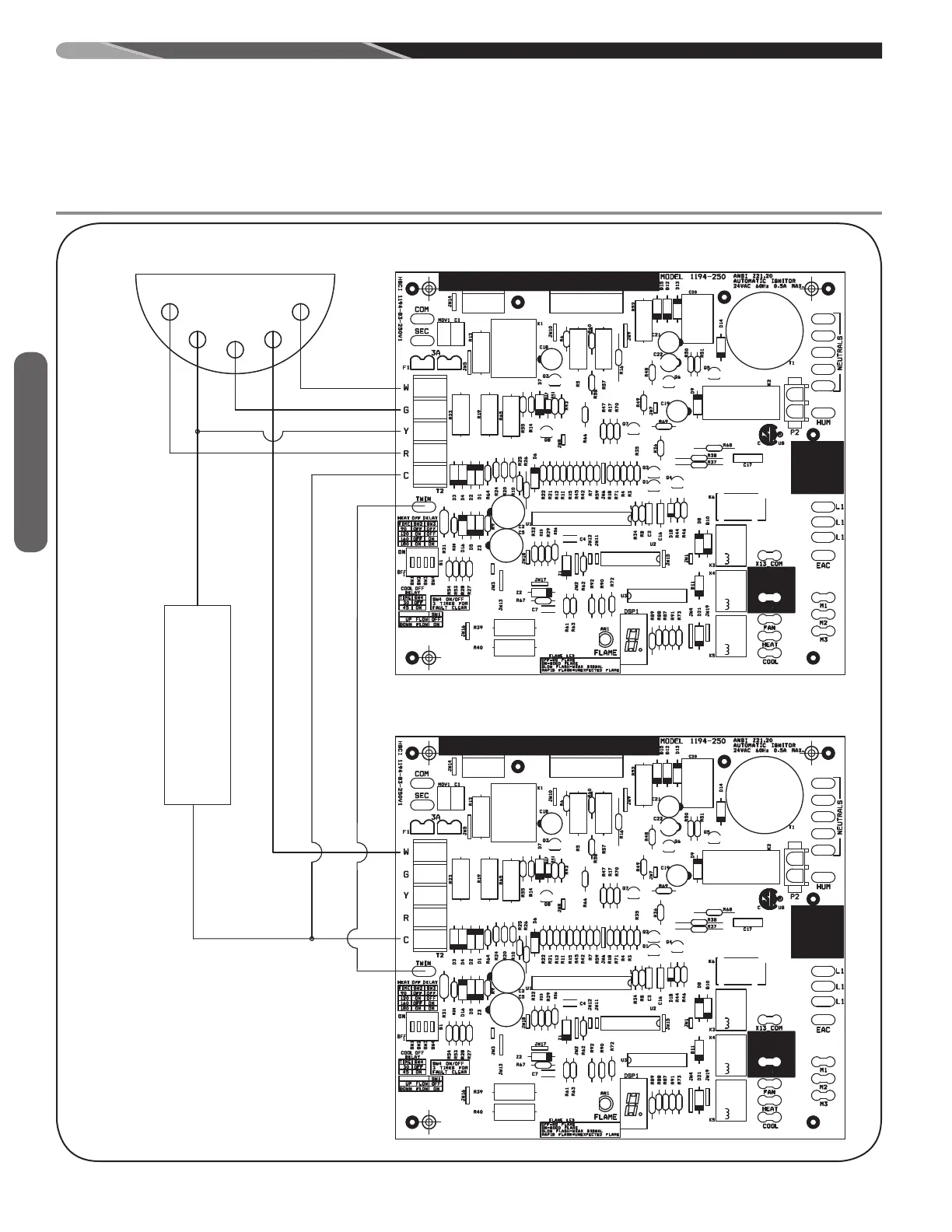

UT ELECTRONIC CONTROLS 1194-250 CONTROL BOARD, TWINNING
CONNECTION -- TWO PHASE OPERATION
THERMOSTAT
ST-A1220-26-00
FIGURE 29
UT ELECTRONIC CONTROLS 1194-250 CONTROL BOARD, TWINNING CONNECTION – TWO STAGE OPERATION
ST-A1220-26-00
