Rheem 801C Series

33
TWINNING
CONTROL BOARDS
R
Y
G
W
COOLING
CONTACTOR
UT ELECTRONIC CONTROLS 1194-250 CONTROL BOARD, TWINNING
CONNECTION -- SINGLE PHASE OPERATION
THERMOSTAT
ST-A1220-25-00
NOTE:
A FAULT CODE 20 WILL FLASH TO
INDICATE A TWINNING PROBLEM.
COMFIRM PROPER WIRING IF THIS
FAULT IS PRESENT.

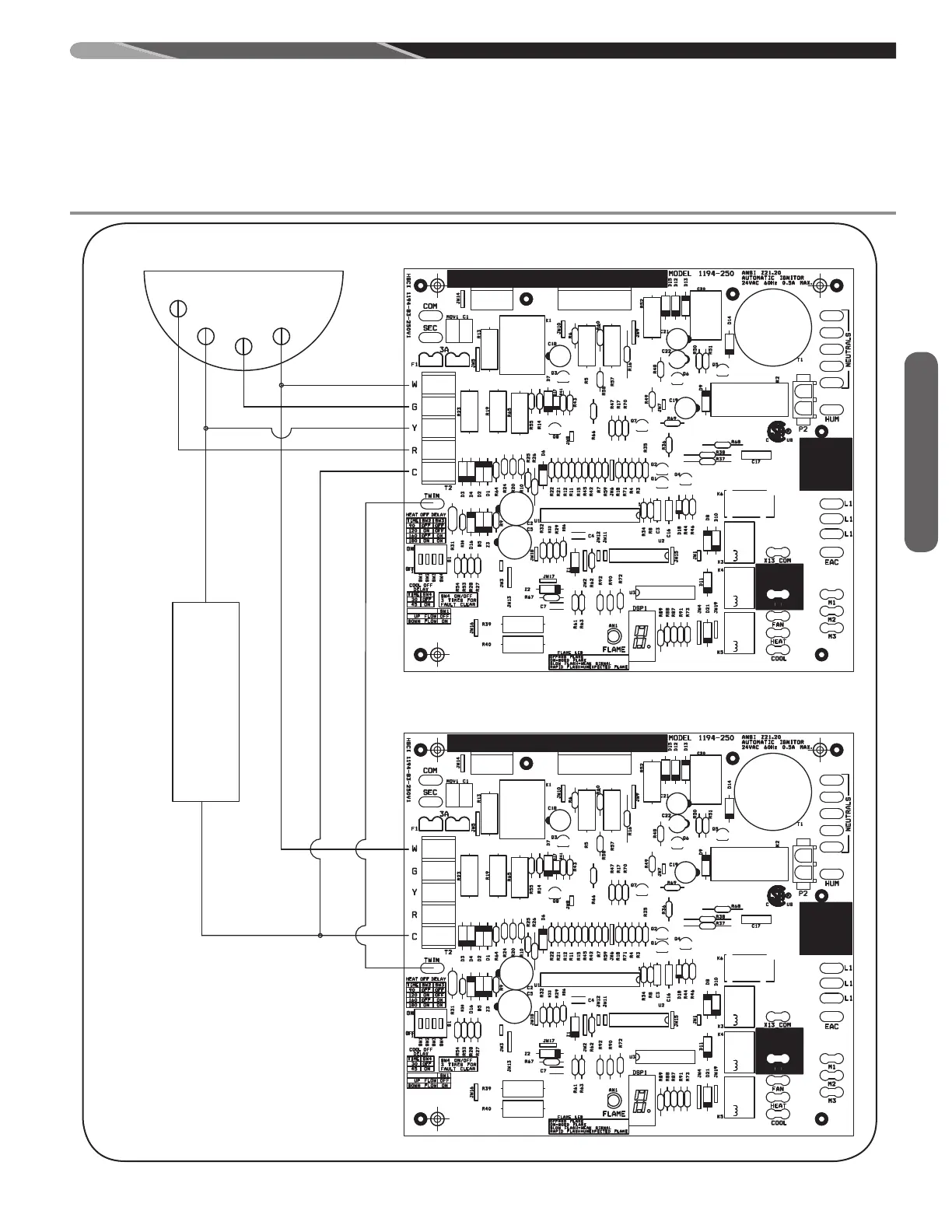

FIGURE 28 UT ELECTRONIC CONTROLS 1194-250 CONTROL BOARD, TWINNING CONNECTION – SINGLE STAGE OPERATION
ST-A1220-25-00
Twinning
