Rheem 801C Series

51

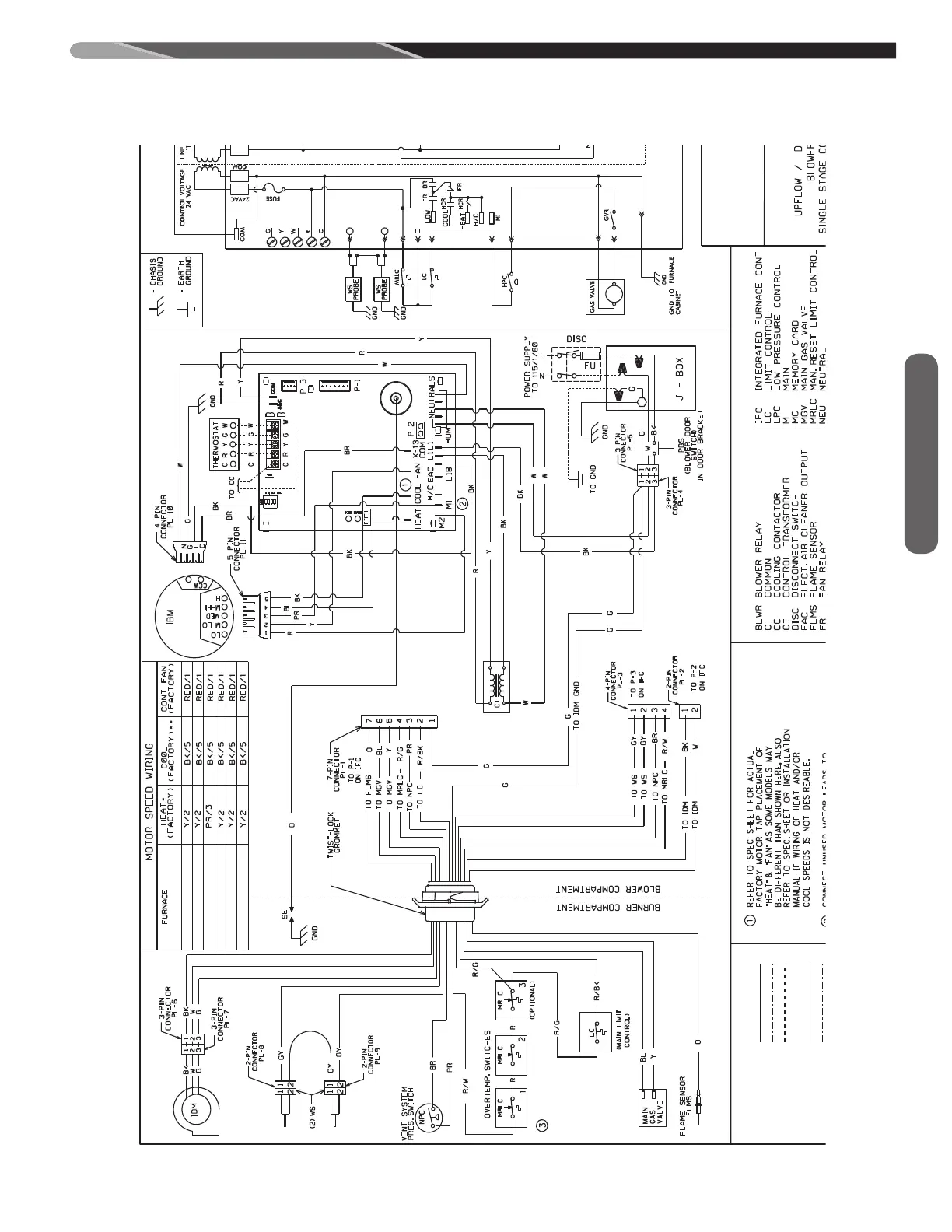

Wiring Diagram
FIGURE 34
FOR MODELS WITH UT ELECTRONIC CONTROLS 1194-200 INTEGRATED FURNACE CONTROL AND DIRECT SPARK IGNITION
NOTES
COMPONENT CODES
WIRE COLOR CODE
BK......BLACK BR......BROWN BL.......BLUE
G........GREEN GY......GRAY O........ORANGE
PR......PURPLE R........RED W.......WHITE Y........YELLOW
WIRING INFORMATION
WARNING -CABINET MUST BE PERMANE NTLY GROUNDED AND CONFORM TO I.E.C., N.E.C., C.E.C., NATIONAL WIRING REGULATIONS, AND LOCAL CODES A S APPLICABLE.
REPLACEMENT WIRE -MUST BE THE SAME SIZE AND TYPE OF I NSULATION AS ORIGINAL (105C. MIN.)
LOW VOLTAGE -FIELD INSTALLED -FACTORY OPTION -FACTORY STANDARD
-FIELD INSTALLED -FACTORY OPTION
-FACTORY STANDARD LINE VOLTAGE
ORIGINAL RELEASE NO.:
ELECTRICAL WIRING DIAGRAM
MODELED BY:
CHECKED:APPROVED:
REV:PART NO.:
DATE:
06
40K / 17” WIDE
60K / 17” WIDE
70K / 17” WIDE 85K / 21” WIDE
100K / 21” WIDE
115K / 24” WIDE
INPUT / SIZE
1 STAGE
90+ CT
P3-1
P3-2 P1-4
P3-4
P1-2
P1-3
P3-3 P1-5
P1-6
P5-1
P1
PL-2
PL-1
MGV
