Rheem Comfort Control2 User Manual

Installation
Thermostat Overview
Thermostat Setup
Advanced Installer Menu
4  Installer’s Guide
Equipment User Menus
This booklet contains installation instruction and information on the
thermostat only. Separate installation instructions for the furnace or air
handler and outdoor AC condensing unit or heat pump are provided.
This thermostat is designed exclusively for the ClimateTalk
TM
communicating system.
Wiring Requirements

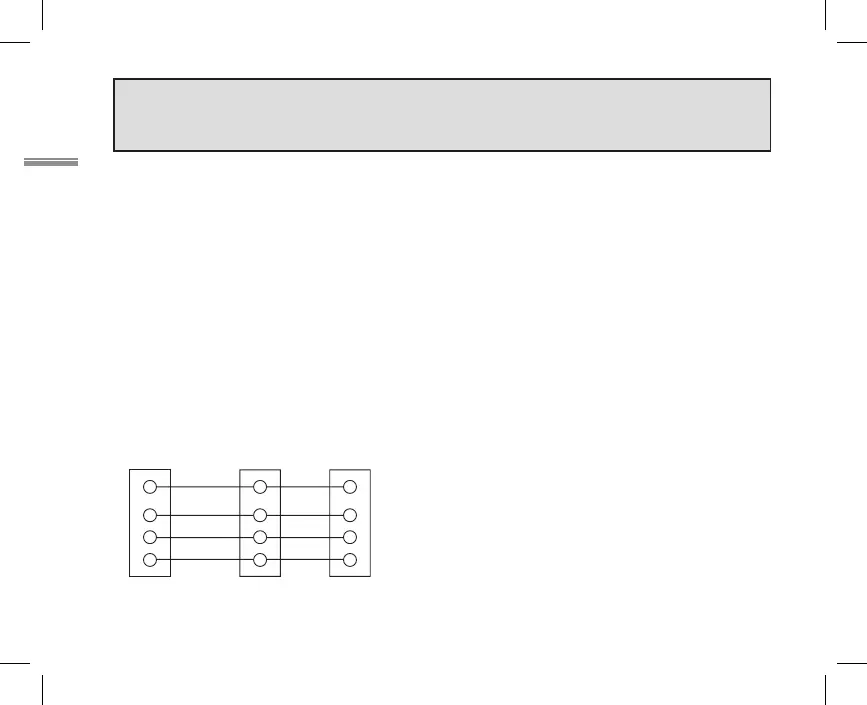

Each communicating device in the system has a four wire connection labelled (R, C,
1, 2). Each R, C, 1, and 2 terminals must be wired consistently. Maximum length from
the thermostat to the indoor unit is 100 feet. Maximum length from the indoor unit to the
outdoor unit is 125 feet.
To uchscreen Indoor
Outdoor
R
C
1
2
R
C
1
2
R
C
1
2
24VAC (Hot)
24VAC
(Common)
Data 1
Data 2
Installation

Rheem Comfort Control2 Specifications

General

Brand	Rheem
Model	Comfort Control2
Category	Thermostat
Language	English
