46

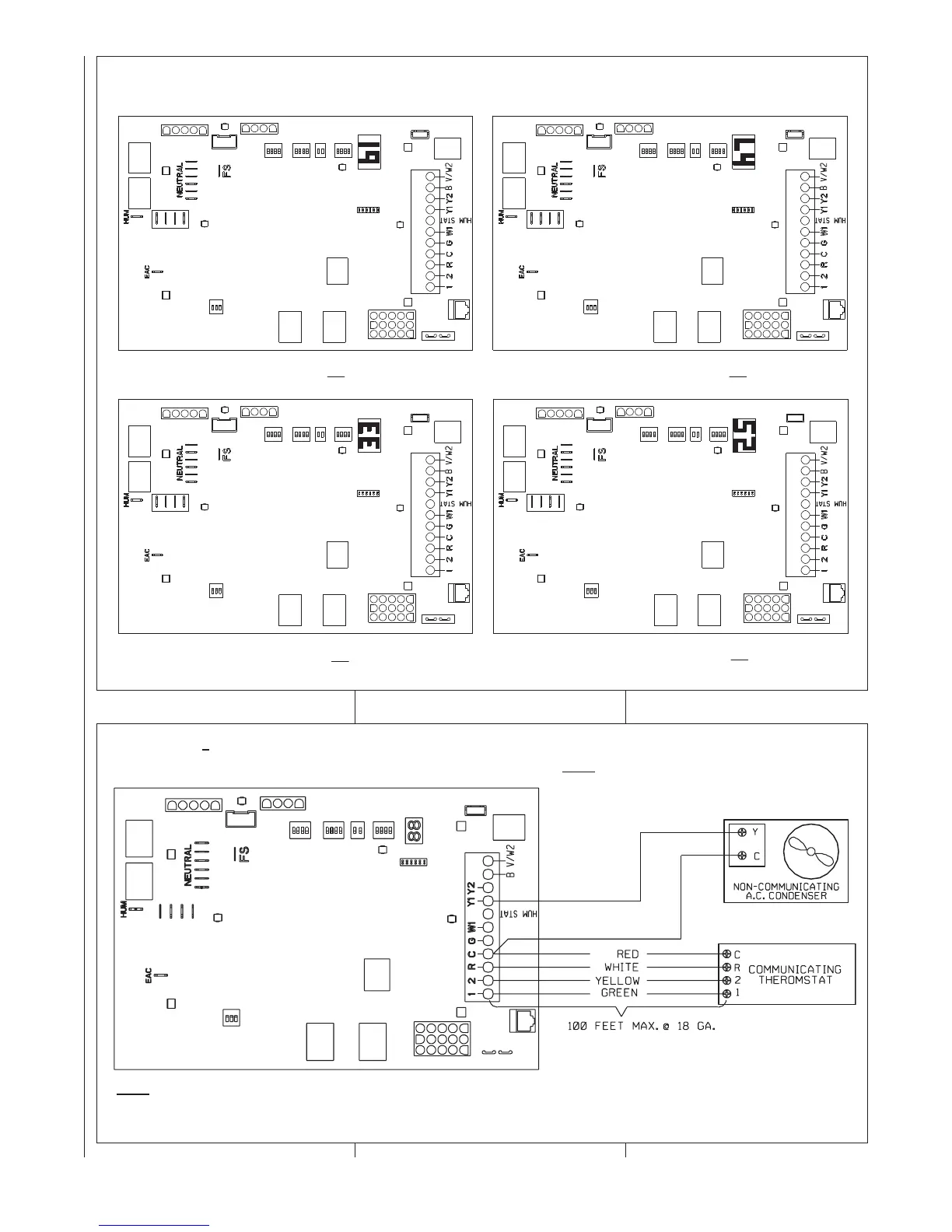

FIGURE 37
WHEN VIEWING THE SEVEN-SEGMENT DISPLAY THE BOTTOM OF THE DIGITS IS ON THE RIGHT SIDE OF THE CONTROL BOARD, CLOSER TO
THE THERMOSTAT TERMINAL BLOCK. FOUR (4) EXAMPLES ARE SHOWN.
THIS EXAMPLE IS 61 NOT 19
THIS EXAMPLE IS h7 NOT L4
THIS EXAMPLE IS 25 NOT 52
THIS EXAMPLE IS 33 NOT EE
FIGURE 38
WIRING DIAGRAM
–
SPECIAL CONFIGURATION: COMMUNICATING THERMOSTAT AND FURNACE WITH NON-COMMUNICATING CONDENSER
NOTE:
DEHUMIDIFICATION FUNCTION FROM A COMMUNICAT-
ING THERMOSTAT WILL NOT BE POSSIBLE WITH THIS
CONFIGURATION.
ST-A1183-01
NOTE:
THIS CONFIGURATION IS VALID FOR A.C. CONDENSERS ONLY. HEAT PUMP CONDENSERS CAN NOT BE INSTALLED IN THIS CONFIGURATION
BECAUSE THERE IS NO CONTROL OUTPUT FOR A REVERSING VALVE AVAILABLE.
ST-A1173-01
