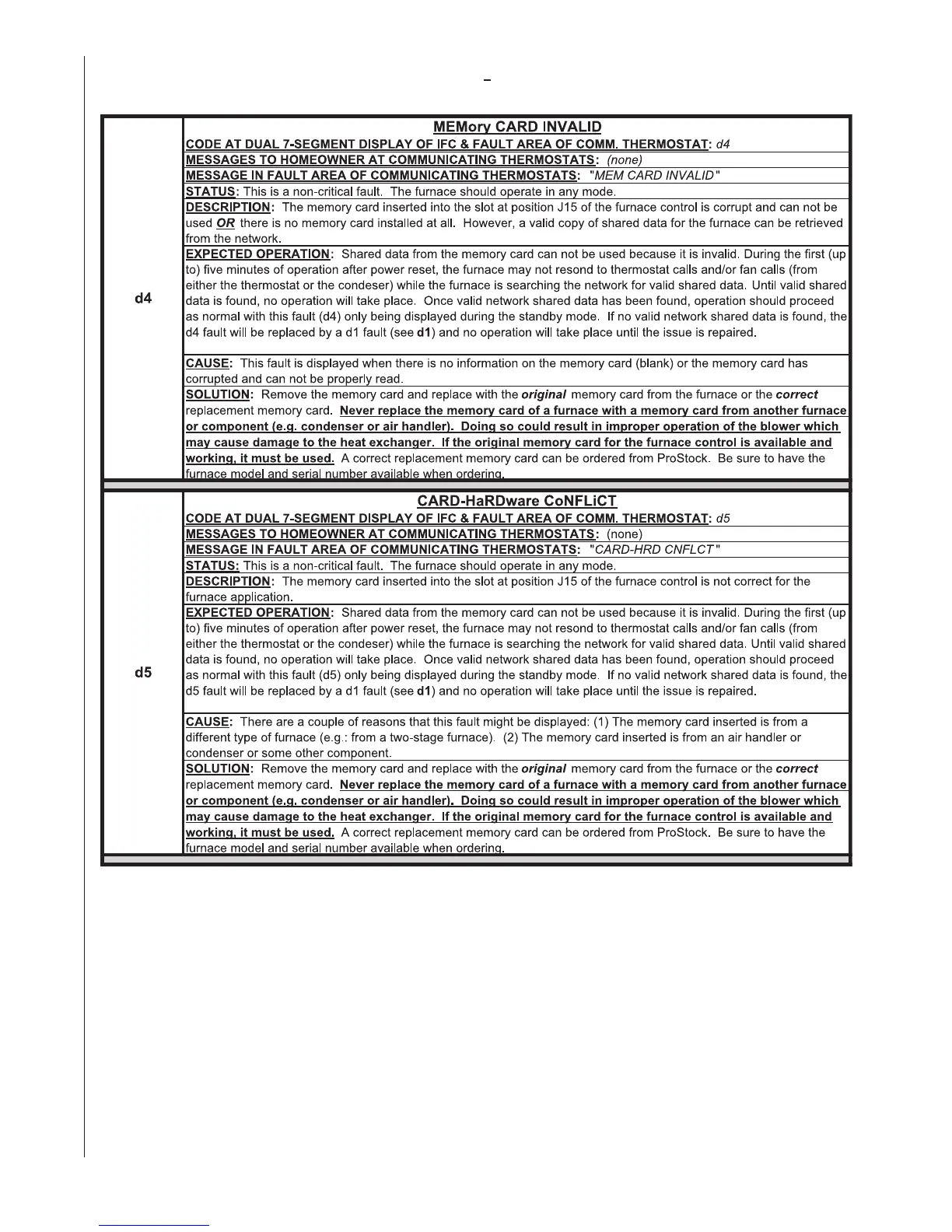

Rheem RGFG - FURNACE FAULT CODES (CONTINUED); MEMORY CARD INVALID (FAULT CODE d4); CARD-HARDWARE CONFLICT (FAULT CODE d5)

116 pages

To Next Page

To Previous Page

TABLE 24 (CONTINUED)

FURNACE FAULT CODES EXPANDED W/DESCRIPTIONS AND SOLUTIONS

–

CONTINUED

(TABLE CONTINUES ON FOLLOWING PAGES)
