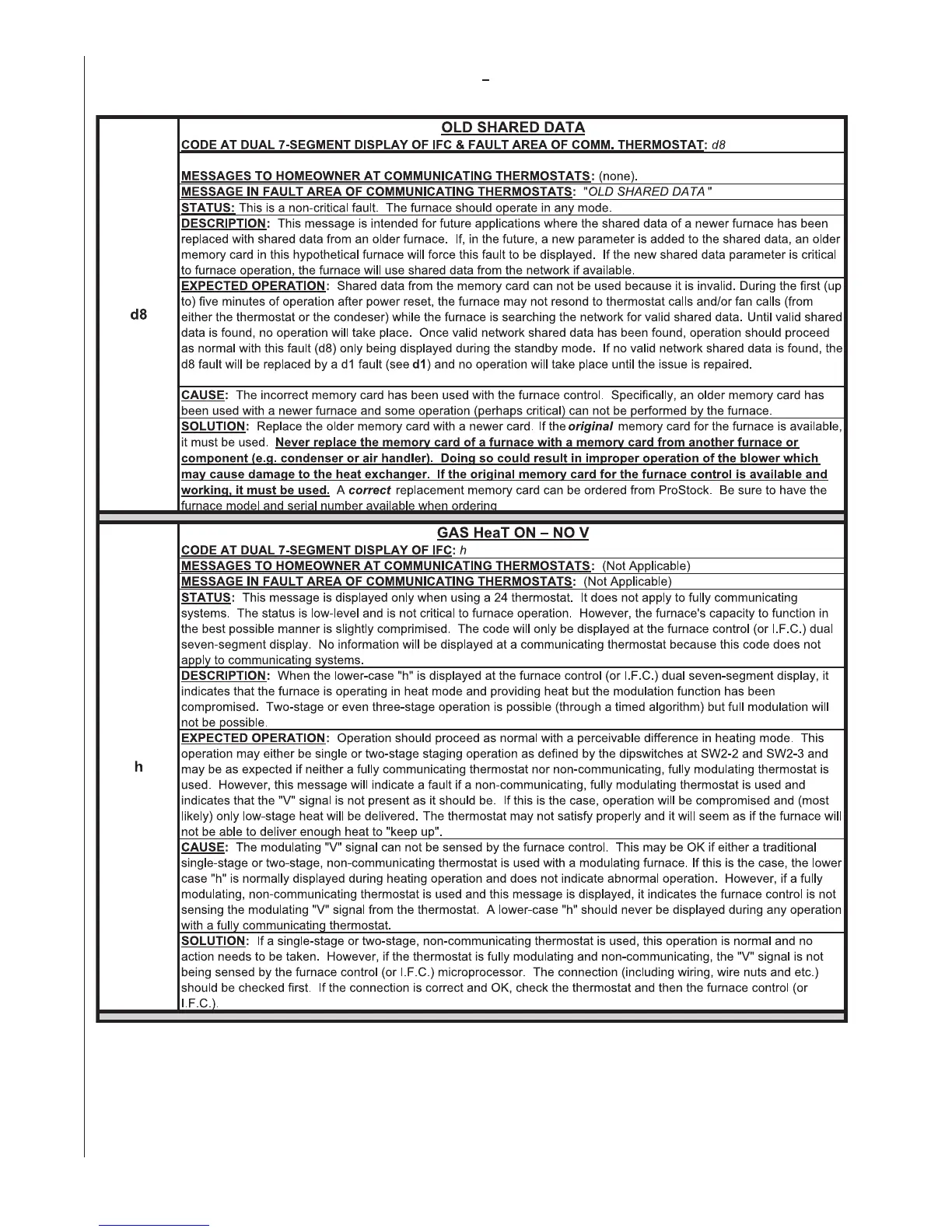

TABLE 24 (CONTINUED)

FURNACE FAULT CODES EXPANDED W/DESCRIPTIONS AND SOLUTIONS

–

CONTINUED

(TABLE CONTINUES ON FOLLOWING PAGES)
