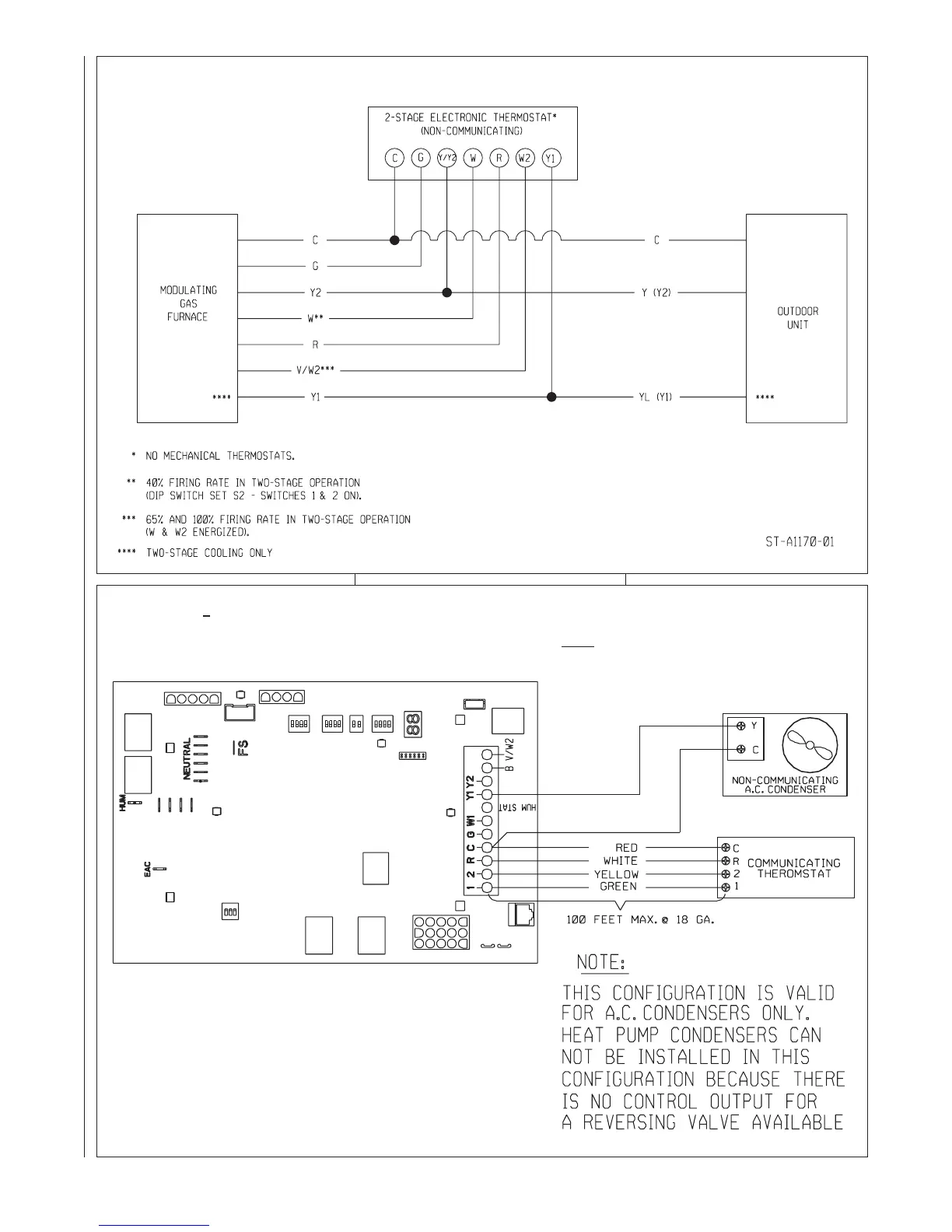

FIGURE 57

WIRING DIAGRAM FROM TWO-STAGE HEAT (NON-COMMUNICATING)

FIGURE 58

WIRING DIAGRAM

–

SPECIAL CONFIGURATION: COMMUNICATING THERMOSTAT AND FURNACE WITH NON-COMMUNICATING CONDENSER

ST-A1173-01

NOTE:

DEHUMIDIFICATION FUNCTION FROM A COMMUNICAT-

ING THERMOSTAT WILL NOT BE POSSIBLE WITH THIS

CONFIGURATION.
