COVER PANEL INSTALLATION / CONVERSION PROCEDURE
DOWNFLOW TO HORIZONTAL
1. Remove the screws and covers from the outside of the supply and return sec-
tions. See Figure 7.
2. Install the covers over the bottom supply and return openings, painted side
up, inserting the leading ange under the bracket provided. Place the back
ange to top of the front bracket provided. See Figures 10 and 11.
3. Secure the return and supply cover to front bracket with two (2) screws.
E.
FILTER REPLACEMENT
This unit is provided with 8 – 20” × 25” × 2” disposable lters. When replacing lters,
ensure they are inserted fully to the back to prevent bypass. See Figure 5.
Recommended supplier of this lter is Glassoss Industries, Inc. or
AAF International
215 Central Avenue
P.O. Box 35690
Louisville, KY 40232
Phone: 1-800-501-3146
Part #: 54-42541-04 (20” × 25” × 2”)

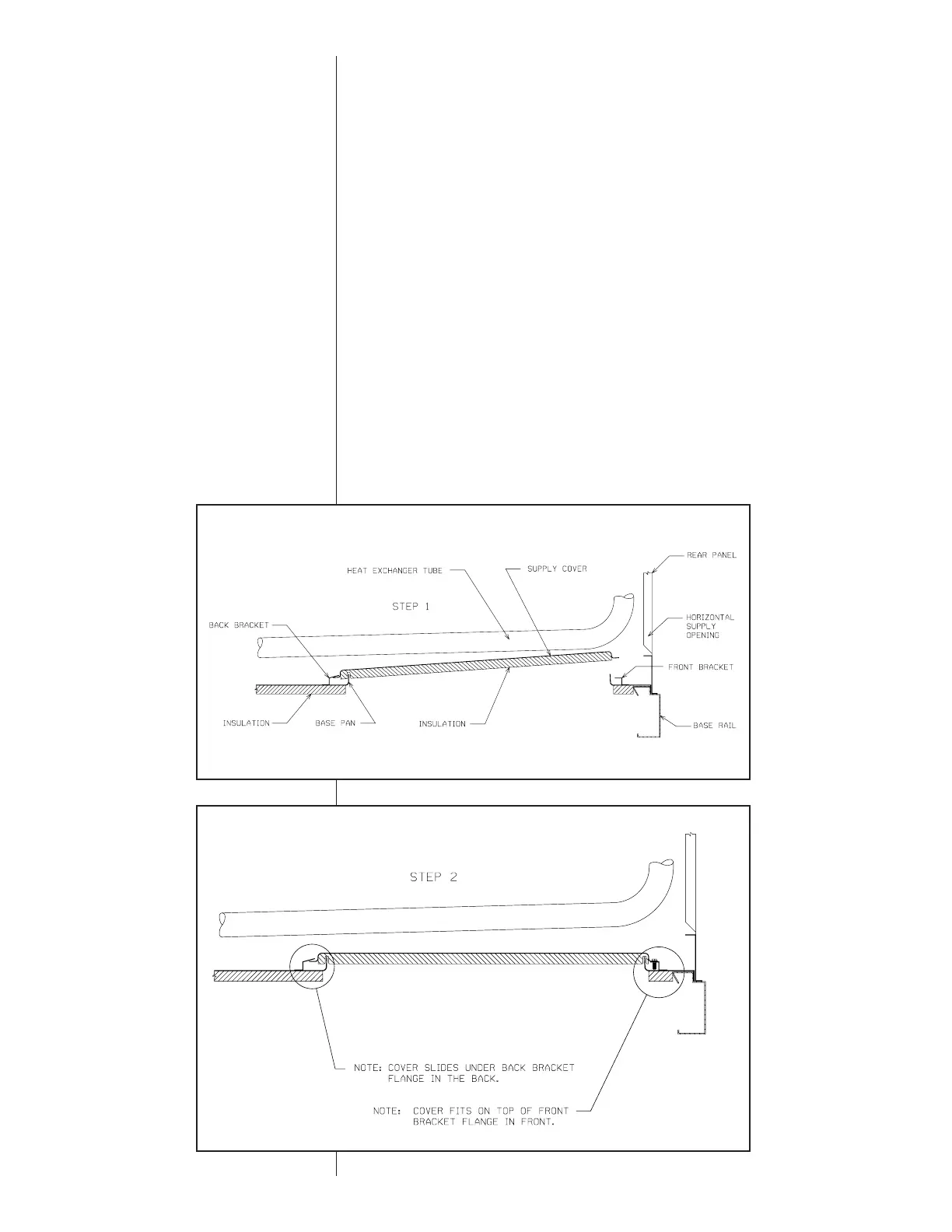

FIGURE 10
HORIZONTAL CONVERSION DETAIL
ST-A0886-30
FIGURE 11
HORIZONTAL CONVERSION DETAIL
ST-A0886-31
