Rheem RKNL-B Series User Manual

6
Unit
Dimensions
FOR CLEARANCES
SEE PAGE 12, FIGURE 12.
IMPORTANT: THIS
UNIT MUST BE
MOUNTED LEVEL IN
BOTH DIRECTIONS
TO ALLOW WATER
TO DRAIN FROM
THE CONDENSER
SECTION AND
CONDENSATE PAN.
CONTROLS &
FILTER
ACCESS
RETURN
AIR
SUPPLY
AIR
CONDENSER
COIL #1
(RIGHT SIDE)
BLOWER
ACCESS

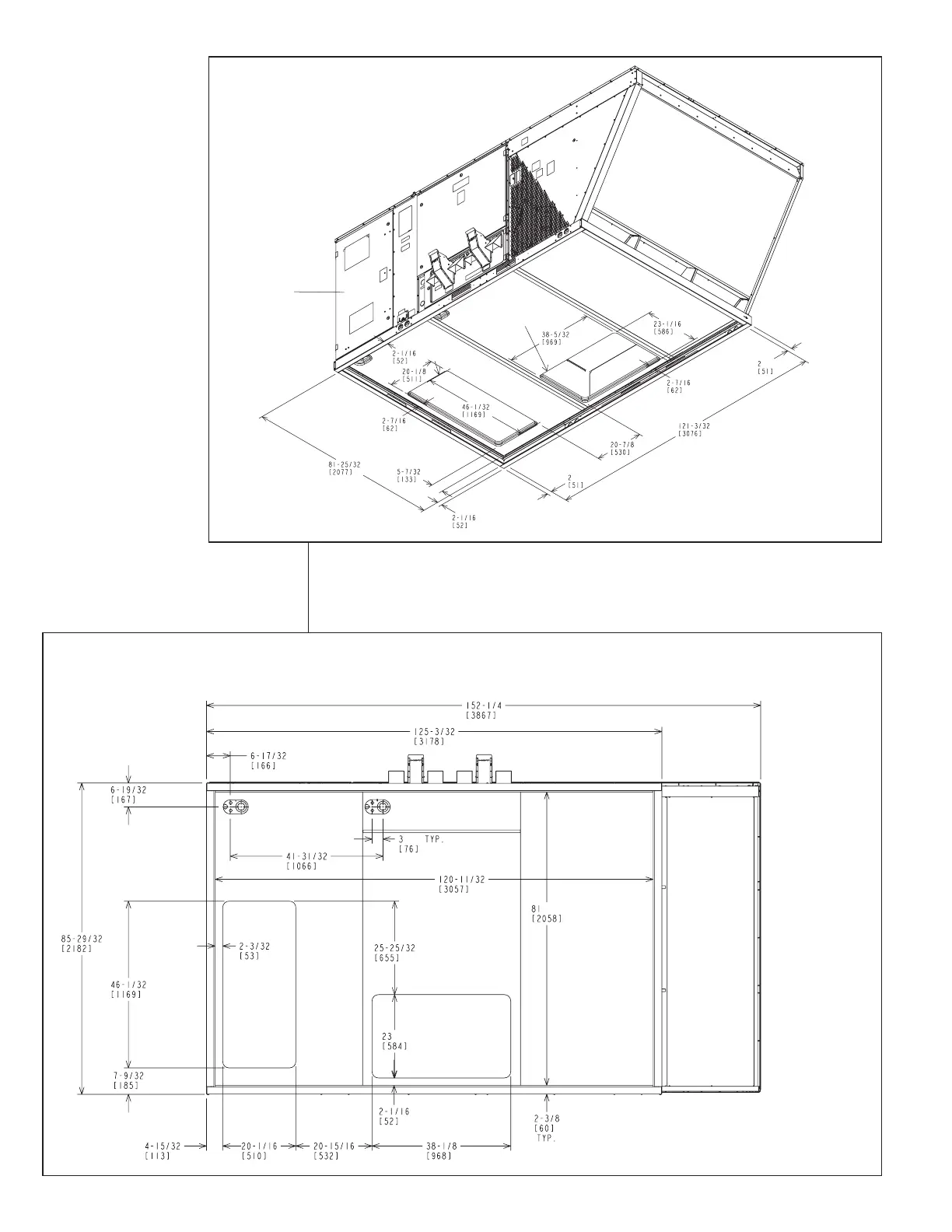

FIGURE 1
BOTTOM VIEW
ST-A1125-02A
Typical Dimensions Shown
in Inches
ELECTRICAL ENTRY
GAS ENTRY
C
O
N
D
E
N
S
E
R
C
O
I
L
SUPPLY AIR
RETURN
AIR
FIGURE 2
SUPPLY AND RETURN DIMENSIONS FOR DOWNFLOW APPLICATIONS – BOTTOM VIEW
ST-A1125-09A
(FRONT SIDE)
(RIGHT
SIDE)
