Rheem RKNL-B Series User Manual

49

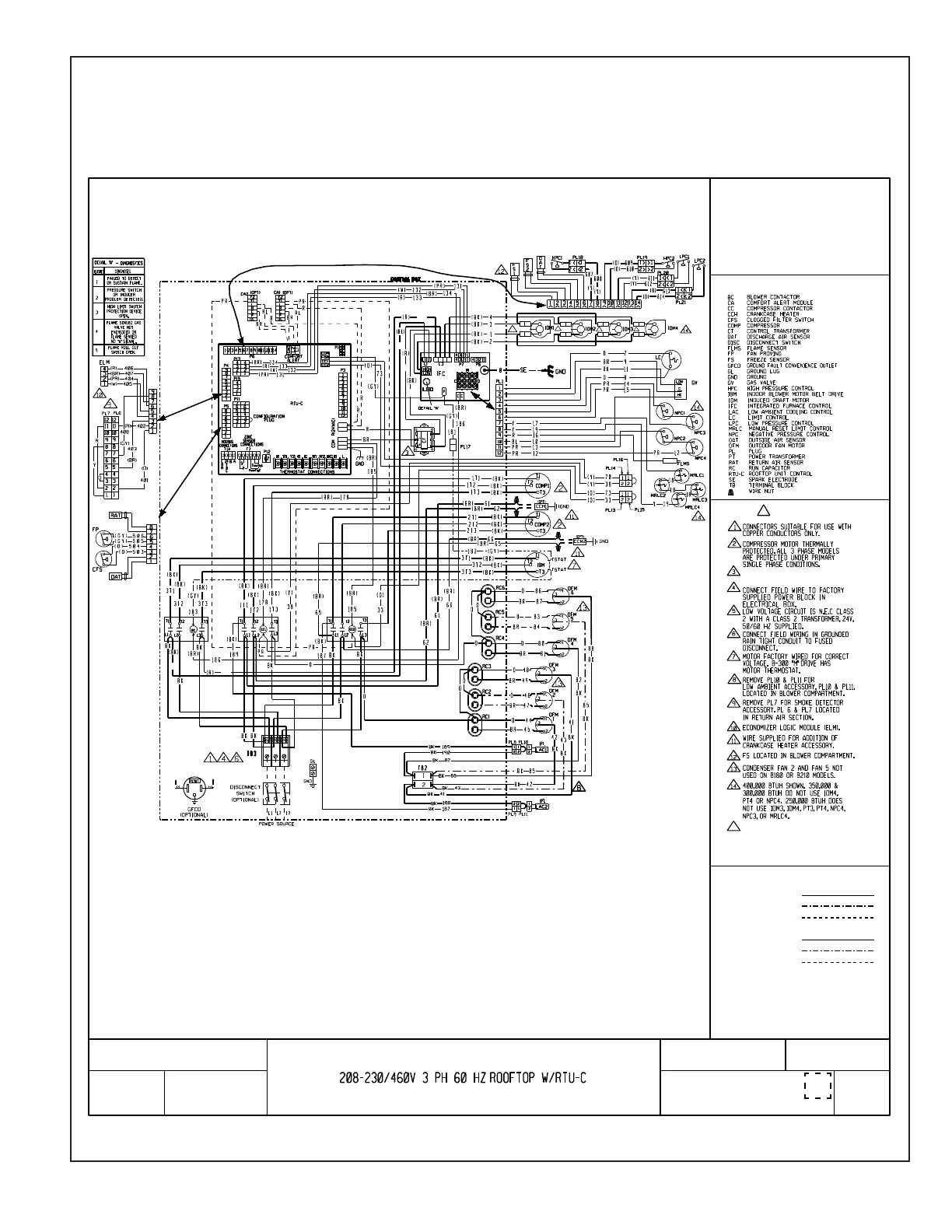

FIGURE 34
RKNL-C SERIES
Y-0603S001
208V
15
208V
15
208V
15
208V
15
180
184
159
179
184
180
INDUCER VOLTAGE CHANGE (208/240V):
UPLUG BLACK WIRE FROM INDUCER. MOVE
INSULATED PLUG FROM (RED) WIRE TO
(BLK) WIRE. PLUG INDUCER (RED) WIRE
INTO (BLK) WIRE.
TRANSFORMER AND INDUCERS
FACTORY WIRED FOR 230 VOLTS.
15
NOTES
COMPONENT CODES
WIRE COLOR CODE
BK......BLACK
BR......BROWN
BL.......BLUE
G........GREEN
GY......GRAY
O........ORANGE
PR......PURPLE
R........RED
W.......WHITE
Y........YELLOW
WIRING INFORMATION
WARNING
-CABINET MUST BE PERMANENTLY GROUNDED
AND CONFORM TO I.E.C., N.E.C., C.E.C.,
NATIONAL WIRING REGULATIONS, AND LOCAL
CODES AS APPLICABLE.
REPLACEMENT WIRE
-MUST BE THE SAME SIZE AND TYPE
OF INSULATION AS ORIGINAL (105C. MIN.)
-FIELD INSTALLED
-FACTORY STANDARD
LOW VOLTAGE
-FIELD INSTALLED
-FACTORY OPTION
-FACTORY STANDARD
LINE VOLTAGE
-FACTORY OPTION
ORIGINAL RELEASE NO.:
ELECTRICAL WIRING DIAGRAM
MODELED BY:
CHECKED:
APPROVED:
TE:
REV:
PART NO.:
DA
90-103079-02 06
MGR 4-13-09
