MID WALL SHELF
Installation Guide (Continued)
Page
5

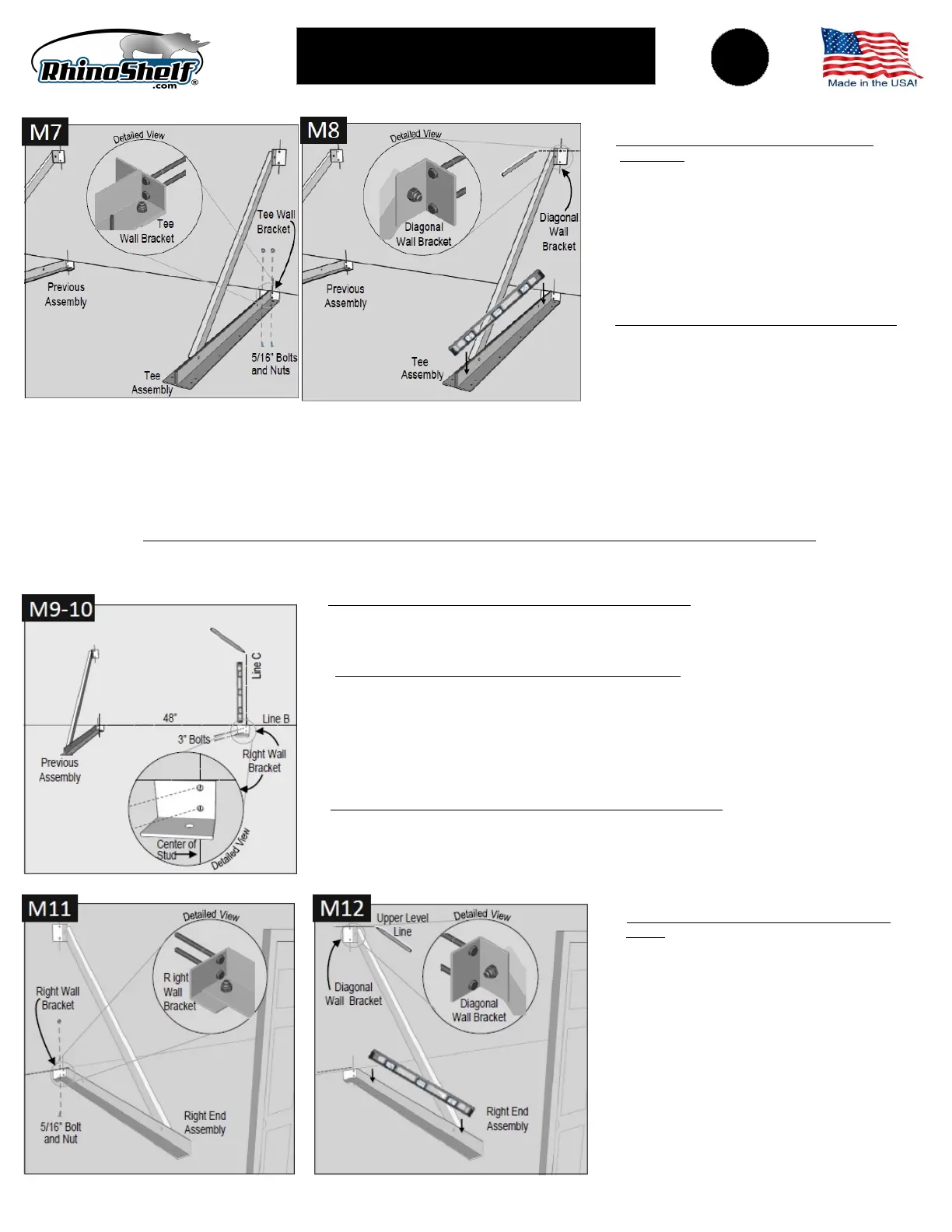

M7. FASTEN TEE ASSEMBLY TO TEE WALL
BRACKET. Slide the pre-assembled Tee
Assembly under the Tee Wall Bracket's lower lag
bolt head. This will temporarily hold the Assembly
in place. Insert 5/16” bolts through bottom of the
Tee Wall Bracket and the Assembly and hand
tighten. Check to make sure the Tee Assembly is
perpendicular to the wall with a framing square.
Tighten bolts with 1/2” wrench and socket or
wrench and nut driver.
M8. ATTACH TOP OF TEE ASSEMBLY TO WALL.
Place 2' level on the Assembly and push the top
of the diagonal to the wall so that the top wall
bracket rests flat on the wall, aligning holes to
upper vertical Line C. Check level and draw 2”
horizontal level line at the top of the bracket.
If your Kit is an 8' Model, proceed to step M9;
if not, repeat Steps M5 – M8 until all of the
pre-assembled Tee Assemblies are installed.
INSTALL RIGHT END ASSEMBLY:
M9. MARK LOCATION OF RIGHT END ASSEMBLY ON WALL. Along Line B, find the first
available stud nearest to 48” from the previously installed assembly. This is your stopping
point for the shelf. Locate the center of stud and mark with a 2” vertical mark (Line C).
M10. ATTACH RIGHT WALL BRACKET (PART #7) TO WALL. Place bottom of 2’ level on Line B
aligning with the edge of Line C. With level plumb, mark 2” vertical mark at top of the level.
Place the top of the Right Wall Bracket on horizontal Line B and align the center of the two
holes on vertical Line C. Holding the Right Wall Bracket in position, drill pilot hole in top hole
using 3/16” drill bit. Use a 7/16” socket or nut driver to attach Right Wall Bracket to wall with
3” Lag bolt. Tighten until snug but movable. Ensure Right Wall Bracket is level. Drill second
pilot hole and attach second 3” lag bolt. Tighten both bolts.
M11.FASTEN RIGHT END ASSEMBLY TO RIGHT WALL BRACKET. Slide the pre-assembled
Right End Assembly under the Right Wall Bracket's lower lag bolt. This will temporarily hold
the Assembly in place. Insert 5/16” bolt through bottom of the Right Wall Bracket and the
Assembly and hand tighten with included nut. Check to make sure the Right End Assembly is
perpendicular to the wall with a framing square. Tighten bolt with 1/2” wrench and socket or
wrench and nut driver.
M12. ATTACH DIAGONAL WALL BRACKET TO
WALL. Place 2' level on the assembly and
push the diagonal to the wall so that the top
wall bracket rests flat on the wall, aligning
holes to upper vertical Line C. Check level and
draw 2” horizontal level line at the top of the
bracket. Holding the top bracket in position, drill
the first pilot hole with a 3/16” drill bit. Use
7/16” socket wrench or nut driver to attach the
top bracket to the wall with 3” lag bolt. Make
sure that the top bracket is level and pre-drill
pilot hole and attach second lag bolt. Use a
1/2” wrench and socket or wrench and nut
driver to tighten all the 5/16” bolts and nuts on
the Right End Assembly.
Go to Page 12, “Cut and Install 2x4
Boards” to complete your installation.
Holding the top bracket in position, drill the first pilot hole with a 3/16” drill bit. Use 7/16” socket wrench or nut driver to attach the
top bracket to the wall with 3” lag bolt. Make sure that the top bracket is level and pre-drill pilot hole and attach second lag bolt.
Use a 1/2” wrench and socket or wrench and nut driver to tighten all the 5/16” bolts and nuts on the Tee Assembly.
