RIGHT WALL START
Installation Guide
Page
8
Make sure you've read Pages 1 -3 first.

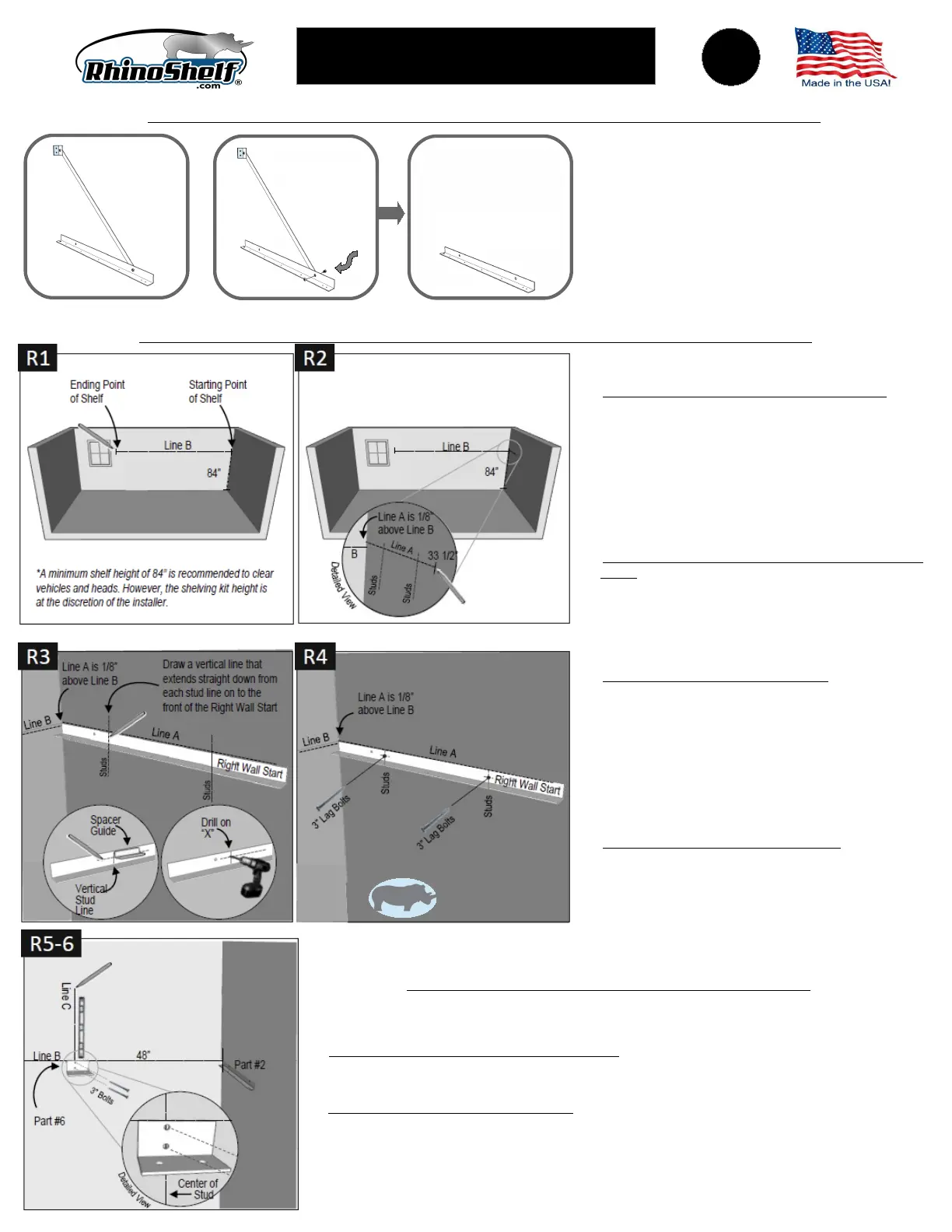

FIRST, DISASSEMBLE RIGHT END ASSEMBLY TO
OBTAIN RIGHT WALL START. Remove the diagonal
support arm from the Right End Assembly by removing the
5/16" nut and bolt connecting the diagonal to the 33 1/2"
angled component. This give you the Right Wall Start
component. Set aside.
Right-End Assembly
Remove nut & bolt from Right End
Assembly to get Right Wall Start
Right Wall Start
INSTALL RIGHT WALL START
R1. MARK LOCATION OF SHELF ON FRONT WALL. To
determine the starting point, in the right corner of the wall,
measure 84” from the floor and make a small mark. This
will be your starting point. From that point, draw a level and
horizontal line the length of the kit you ordered. This line
will be referred to as Line B. For example, if you
purchased a 12’ kit, from the starting point you would draw
a 12’ horizontal level line. Locate the nearest stud to the
end of this line. It may be to the left or right of this point.
This stud will be your stopping point.
R2. MARK LOCATION OF RIGHT WALL START ON RIGHT
WALL. Starting from right corner, referencing Line B,
make a small horizontal mark on right wall 1/8” above Line
B. From this mark, use a level to draw a 33 1/2” horizontal
line onto the right wall. This is Line A. Locate and mark the
center of each stud along Line A. See “How To Locate
Center of Stud” on Page 2.
R3. DRILL HOLES IN RIGHT WALL START. Align the top of
the Right Wall Start with Line A making sure the side with
only two holes is against the wall. Place it 1/8” from
corner. Holding the part in position, draw a vertical line
that extends straight down from each stud line onto the
front of the part. Place the Right Wall Start on a scrap
piece of wood. Use the 3/4” side of the Spacer Bar to draw
a perpendicular line across each vertical line on the front
of the part. Drill holes through front of the Right Wall Start
on each “x” using a 1/4” drill bit.
R4. FASTEN RIGHT WALL START TO WALL. Align the Right
Wall Start’s top edge with Line A, placing it 1/8” from
corner. Make sure that the new 1/4” holes on the front of
the Right Wall Start are aligned with the center of stud
lines. Holding the part in position, use a 3/16” bit to pre-drill
pilot hole through right 1/4” hole. Use a 7/16” socket
wrench or nut driver to attach the Right Wall Start to the wall with 3” lag bolt. Tighten until snug but
movable. Ensure the part is level and that its top edge is aligned with Line A. Drill second pilot hole
through right 1/4” hole and attach second 3” lag bolt. Level the part and tighten both 3" bolts.
INSTALL TEE ASSEMBLY(IES) - IF YOUR KIT IS THE 4’ MODEL, SKIP TO STEP R9
R5. MARK LOCATION OF TEE ASSEMBLY ON WALL. Along Line B find the first available stud nearest 48”
from the corner (or previously installed assembly). Locate the center of the stud and mark with a 2” vertical
mark (Line C).
R6. ATTACH TEE WALL BRACKET TO WALL. Place bottom of 2’ level on Line B aligning with the edge of
Line C. Make a 2” plumb (vertical) mark at top of the level. Place the top of the Tee Wall Bracket on
horizontal Line B and align the center of the two holes on vertical Line C. Holding the Tee Wall Bracket in
position, drill pilot hole in top hole using 3/16” drill bit. Use a 7/16” socket wrench or nut driver to attach the
Tee Wall Bracket to wall with 3” lag bolt. Tighten until snug but movable. Ensure the Tee Wall Bracket is
level, drill second pilot hole and attach second 3” lag bolt. Tighten both lag bolts.
FOR RHINO MINI R3 AND R4 SEE “SPECIAL INSTRUCTIONS” BOTTOM OF PAGE 3
MINI Special Instruction
For Rhino Mini Pg 3
