MAINTENANCE

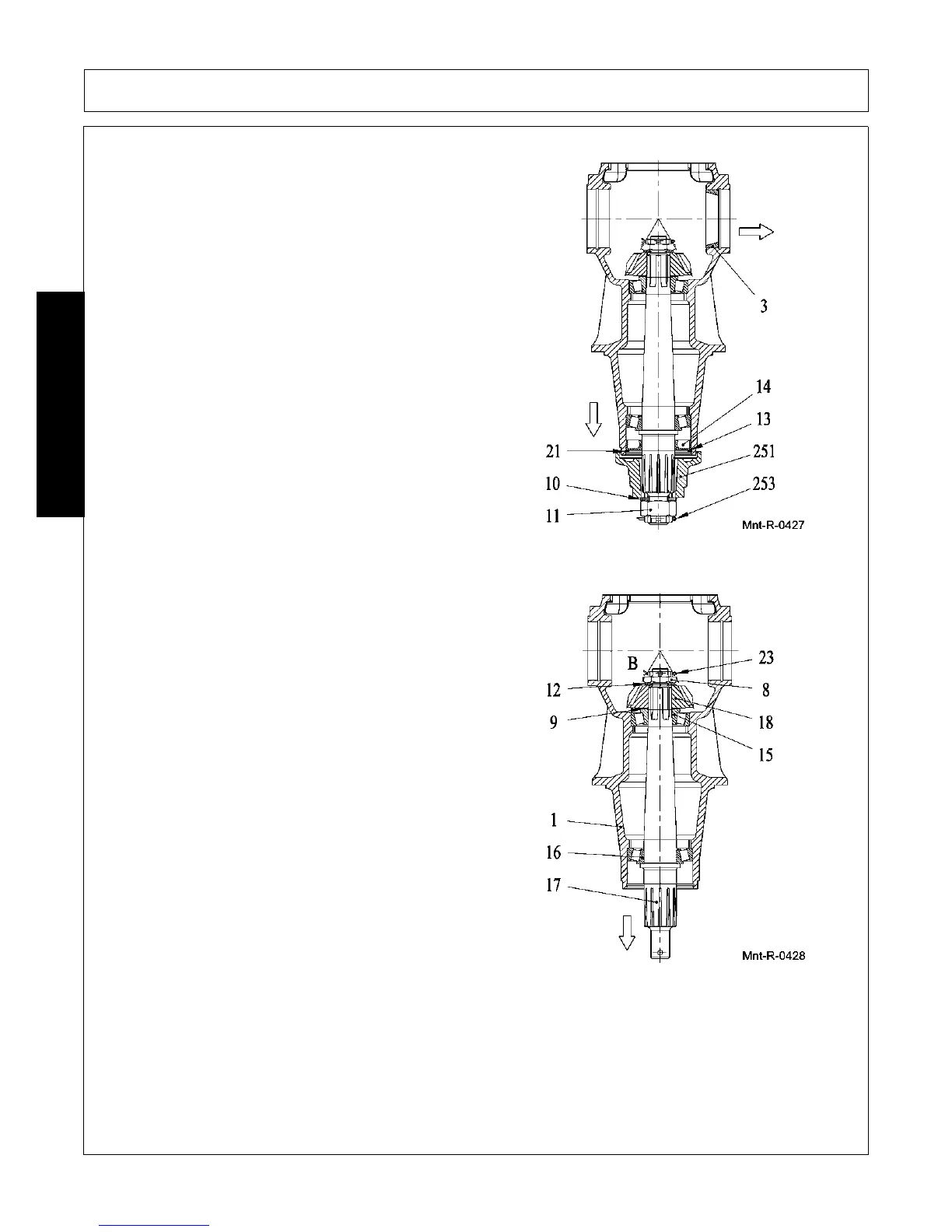

9. Straighten cotter pin (23).
10. Extract cotter pin (253), unscrew nut (11),
disassemble bolt washer (10) and bush (251).
11. Disassemble snap ring (21), take away
protective washer (13).
12. Disassemble oil seal (14), using chisel and
hammer.
13. Disassemble outer ring (3) from housing, using
a pipe and hammer.
14. Straighten cotter pin (23).
15. Extract cotter pin (23), unscrew castle nut (8).
16. Disassemble shim (12), pinion (18), shims (9)
using and extractor if necessary.
17. Hit the shaft (17) from side B and extract it
from housing (1), using a chisel and hammer,
pick up inner ring (15).
18. Extract inner ring (16) from shaft (17), using a
chisel and hammer.
