ASSEMBLY
172 08/12 Assembly Section 3-2
© 2012 Alamo Group Inc.
ASSEMBLY
DEALER SETUP INSTRUCTIONS
The mower as received from the factory is partially assembled and requires minimum time to complete
assembly and is ready for sale.

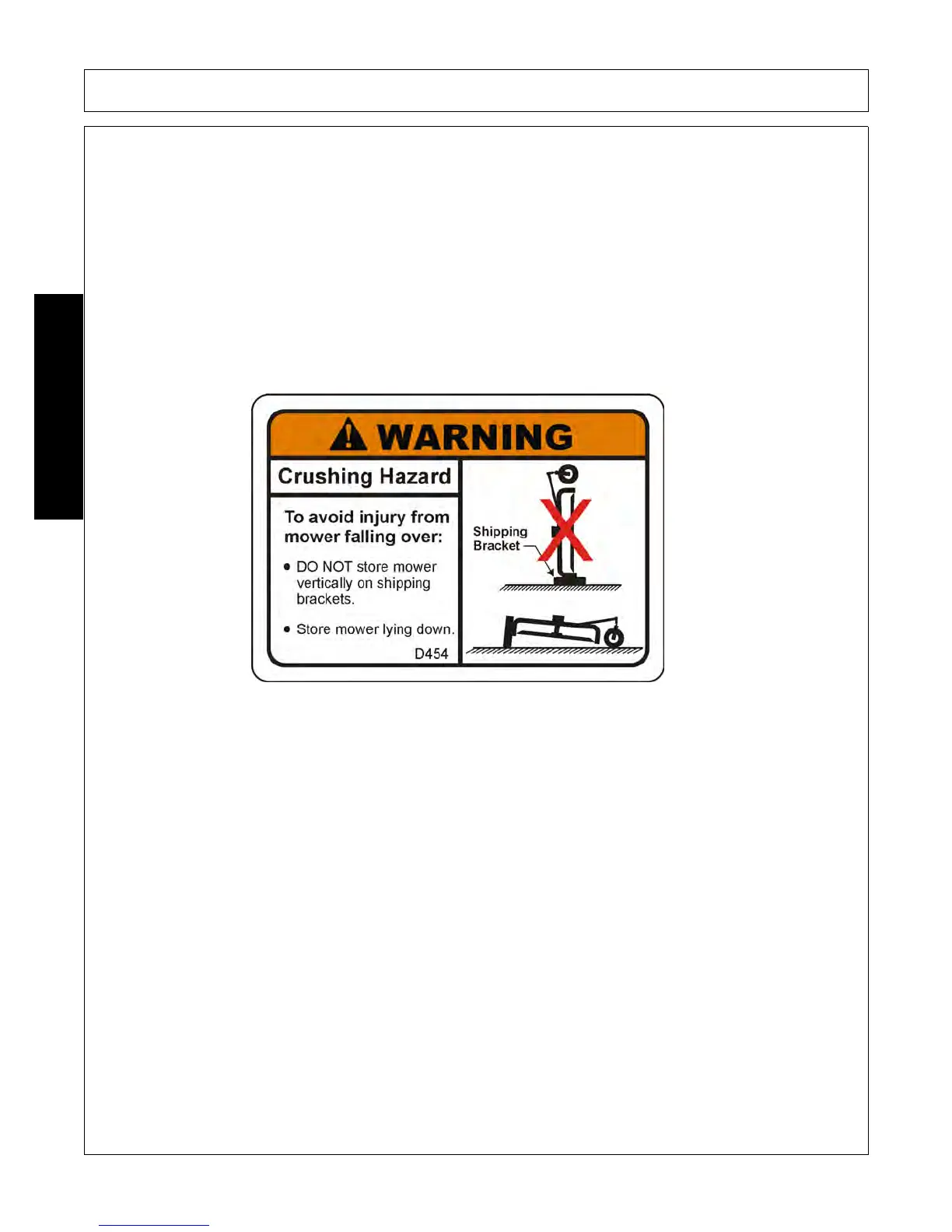

The mower is shipped vertically with shipping brackets. These shipping brackets are intended for use in
transporting the mower from the factory to dealer.
DO NOT use these brackets to store the unit. DO NOT store mower vertically, the mower can fall over resulting
in serious injury or death. To avoid injury, always store mower lying down on flat ground.
Assembly will be easier if components are aligned and loosely assembled before tightening hardware. Refer to
bolt torque chart in Maintenance Section. All bolts are grade 5 unless otherwise specified.
