RHINO 172 - GEARBOX SERVICING ON COMER GEARBOX

MAINTENANCE
172 08/12 Maintenance Section 5-20
© 2012 Alamo Group Inc.
MAINTENANCE
GEARBOX SERVICING ON COMER GEARBOX
Disassembled shims must be assemble in the same positions.
TOOLS NEEDED FOR DISASSEMBLY AND ASSEMBLY OF COMER GEARBOX
-Wrench n° 13-17-19 -Snap Ring Pliers -Extractor
-Wrench n°17-36 -Hammer -Torquemeter
-Wrench n°13-19 -Wrench n°36 -Dynamometric wrench
-Chisel -Pipe

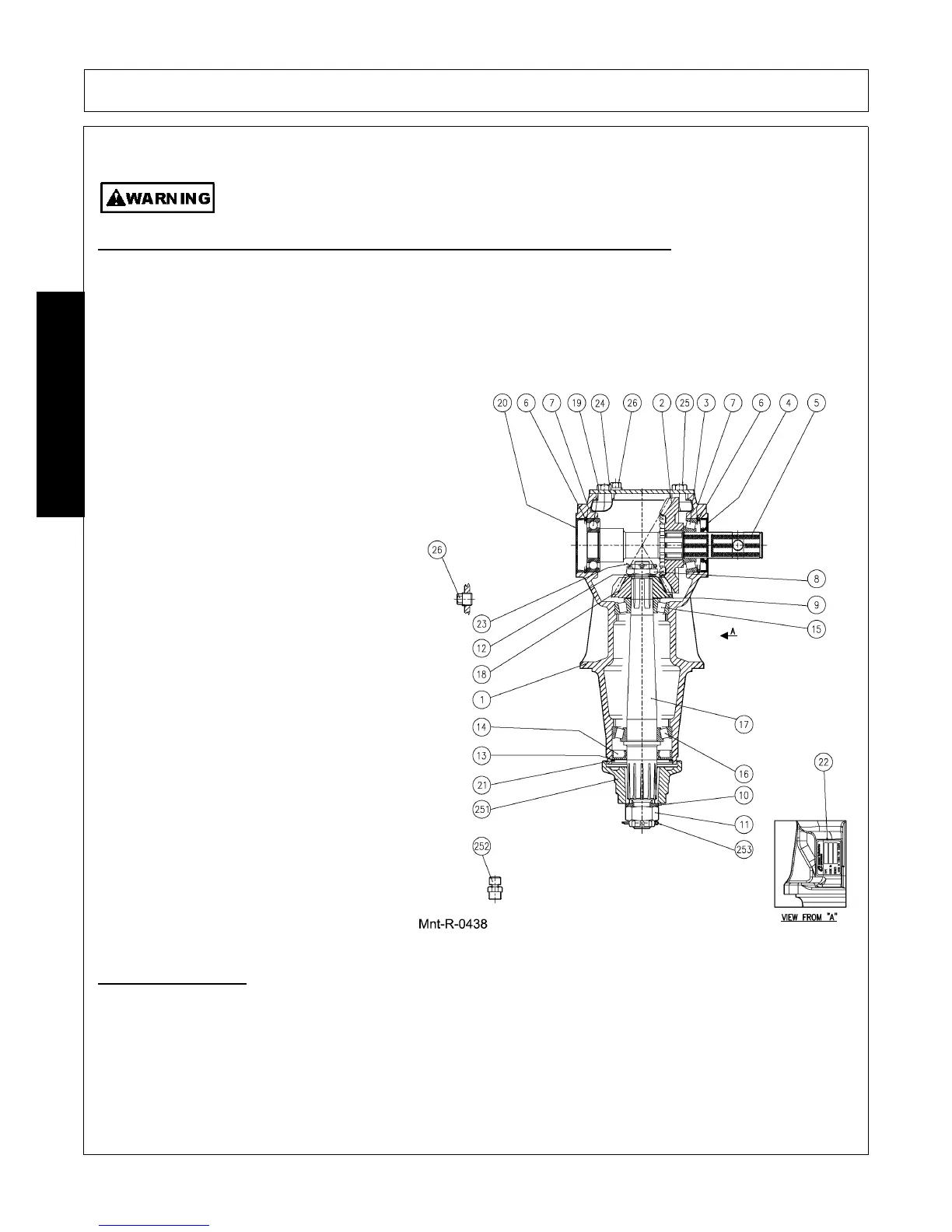

1. Housing
2. Crown Gear
3. Roller Bearing (35 x 72 x 18.25)
4. Dust Lip (35 x 72 x 10)
5. Input Shaft
6. Snap Ring (72 x 75 x 2.5 for holes)
7. Shim Kit (60.3 x 71.7)
8. Castle Nut (M20 x 1)
9. Shim Kit (30.3 x 44)
10. Flat Washer (25 x 44 x4)
11. Castle Nut (M24 x 2)
12. Flat Washer (21 x 37 x 3)
13. Protective Flat Washer (40.4x79.9x1)
14. Dust Lip (40 x 80 12)
15. Roller Bearing (30 x 72 x 2.75)
16. Roller Bearing (40 x 80 x 19.75)
17. Output Shaft
18. Pinion Gear
19. Ball Bearing
20. Oil Cap
21. Snap Ring (81 x 82.8 x 2)
22. Name Plate
23. Cotter PIn (4 x 40)
24. Top Cover
25. Bolt M10 x 15 HHB
26. 3/8” Gas Solid Plug
Supplied Separately
251. Bush
252. 3/8” Gas Oil Breather Plug
253. Cotter Pin (5 x 50)
