MAINTENANCE
172 08/12 Maintenance Section 5-23
© 2012 Alamo Group Inc.
MAINTENANCE

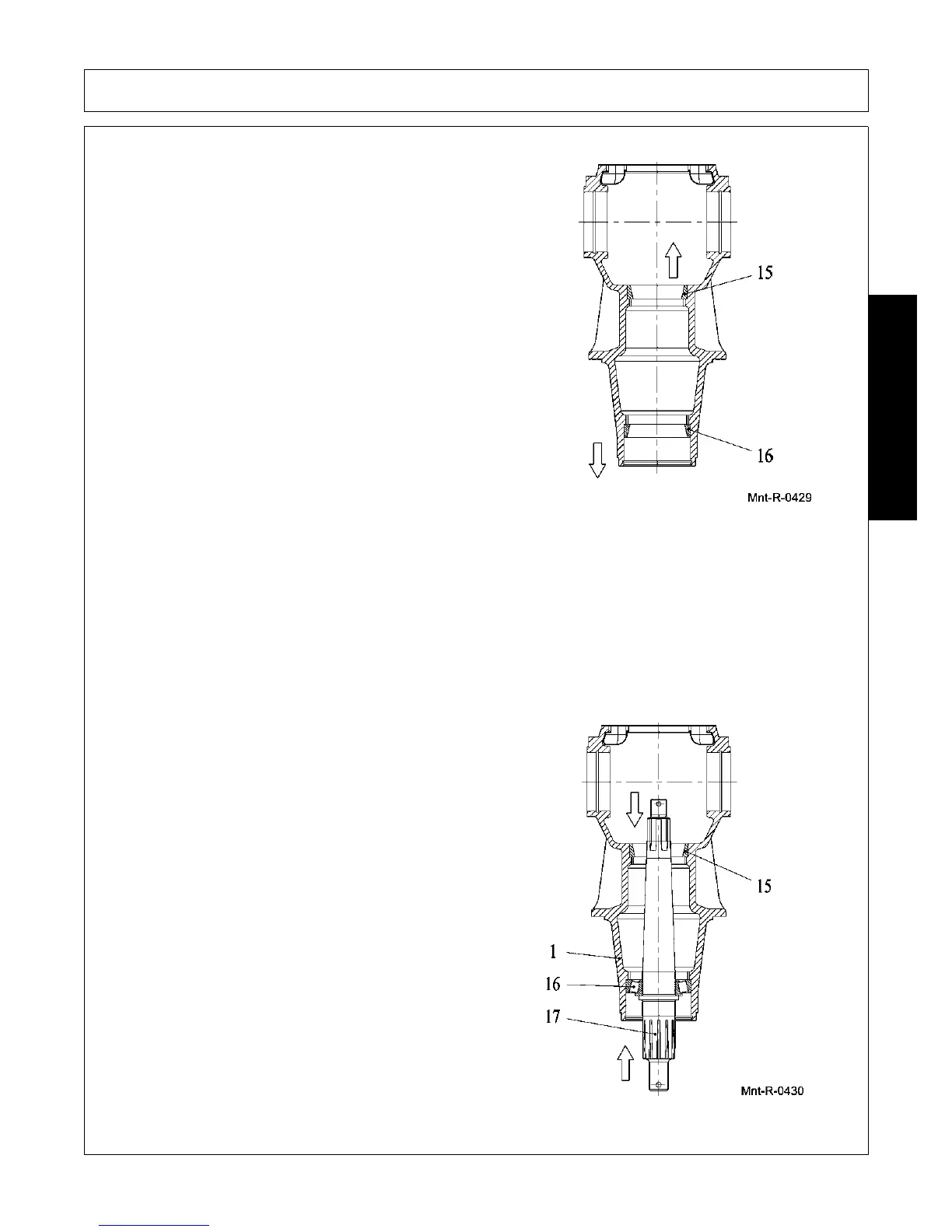

19. Extract outer rings (15), (16) using a chisel and
hammer or an extractor.
Assembly
NOTE: -Clean all the components from remaining oil, grease and silicone.
-Replace any particular damage.
-When assembling the bearings, pay attention to not make any pressure on the rollers or cages in
order to avoid any damage.
-When assembling oil seals, avoid contact with cutting parts in order to prevent any damage to the
inner lip.
-When assembling the cap, use a cylindrical shaft of same diameter of the cap.
1. Assemble inner ring (16) on shaft (17) using
pipe and hammer.
2. Assemble outer rings (15), (16) inside housing
(1), using pipe and hammer.
3. Insert shaft (17) inside housing (1).
To Next Page
