SAFETY
SE6 05/05
Safety Section 1-22
© 2005 Alamo Group In
c.

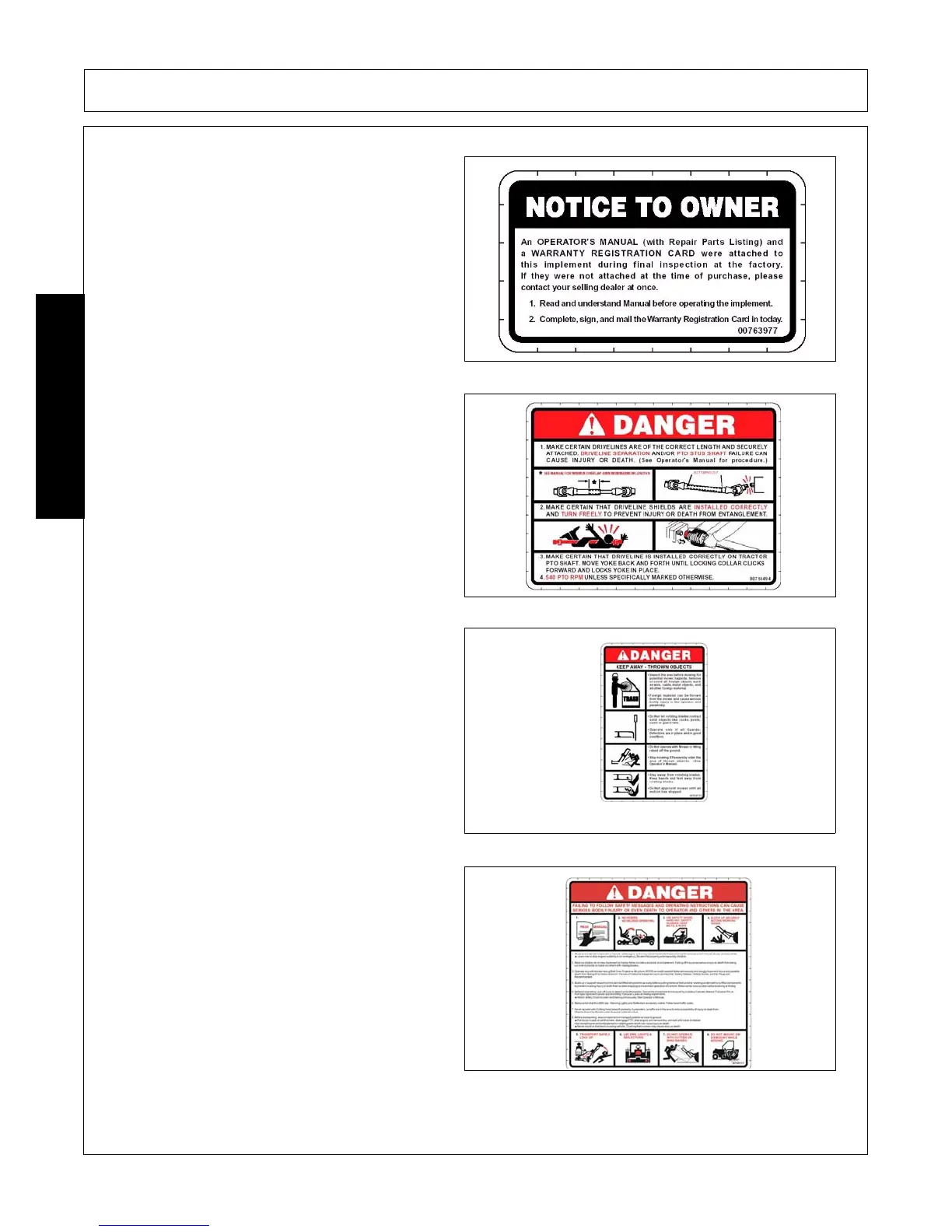

SAFETY
Operator's Manu
al (with repair
part
s) and warranty
was attached
to this implement during fina
l
inspection.
P/N 00763977
DANGER! Make certain that drivelin
es are correct
length and are se
curely att
ached.
P/N 00756494
DANGER! Keep Away Thrown Object
s.
P/N 00769737
DANGER! Multi-Hazard Decal
(Refer T
o Front Cover)
P/N 007491
17
27
29
Table of Contents
Default Chapter
1
Rotary Mower
1
Table of Contents
5
Safety Section
7
General Safety Instructions and Practices
8
Operator Safety Instructions and Practices
9
Equipment Operation Safety Instructions and Practices
11
Connecting or Disconnecting Implement Safety Instructions and Practices
17
Transporting Safety Instructions and Practices
18
Maintenance and Service Safety Instructions and Practices
20
Storage and Parking Safety Instructions and Practices
22
Concluding Safety Instructions and Practices
22
Decal Location
23
Decal Description
27
Federal Laws and Regulations
32
Introduction Section
77
Attention Owner/Operator
80
Assembly Section
81
Dealer Setup Instructions
82
SHIELD ASSEMBLY (Figure Asmp-R-0016)
82
A-FRAME INSTALLATION (FIGURE Asm-R-0075)
83
TAIL WHEEL INSTALLATION (FIGURE Asm-R-0076)
84
TONGUE ASSEMBLY PULL-TYPE MOWER (FIGURE Asm-R-0077)
85
TAILWHEEL- ASSEMBLY PULL-TYPE MOWER (FIGURE Asm-R-0078)
86
SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION
87
Front and Rear Deflectors (Standard Equipment)
88
CHAIN GUARDS (Optional Equipment at Extra Cost) (Figures Asm-R-0081 & Asm-R-0082)
89
CHECK CHAINS (Extra Equipment) - FIGURE Asm-R-0083
90
OFFSET ADAPTER HITCH (EXTRA EQUIPMENT) (Figure Asm-R-0084)
91
Operation Section
93
Operation Instructions
94
Standard Equipment and Specifications
95
Operator Requirements
96
Tractor Requirements
97
ROPS and SEAT BELT
97
Tractor Safety Devices
98
Tractor Horsepower
98
3-Point Hitch
98
Front End Weight
99
Drawbar-Pull Type Mower
99
Power Take off (PTO)
100
Getting on and off the Tractor
100
Boarding the Tractor
101
Dismounting the Tractor
101
Starting the Tractor
102
Connecting the Mower to the Tractor
102
Connecting the Mower-Lift Type
103
Connecting the Mower-Pull Type
104
Safety Chains
104
Setting the Mower
105
Setting Mower Height- Lift Type
105
Setting Mowing Height-Lift Type
106
Setting Deck Pitch
107
Driveline Attachment
107
Driveline Length Check
108
Pre-Operation Inspection and Service
109
Tractor Pre-Operation Inspection/Service
110
Mower Pre-Operation Inspection/Service
110
Cutting Component Inspection
114
Driving the Tractor and Implement
115
Starting the Tractor
116
Brake and Differential Lock Setting
116
Raising the Mower
117
Driving the Tractor and Mower
117
Crossing Ditches and Steep Inclines
118
Operating the Tractor and Implement
119
Foreign Debris Hazards
120
Bystanders/Passersby Precautions
120
Engaging the Power Take off (PTO)
121
PTO RPM and Ground Speed
122
Operating the Mower
122
Shutting down the Implement
125
Disconnecting the Mower from the Tractor
126
Mower Storage
128
Transporting the Tractor and Implement
128
Transporting on Public Roadways
129
Hauling the Tractor and Implement
131
Troubleshooting Guide
133
Maintenance Section
137
Lubrication
138
Gearbox
139
Driveline Lubrication
140
Blade Servicing
141
Blade Sharpening
142
Blade Carrier Removal/Installation
142
Blade Carrier Removal
143
Blade Carrier Installation
143
Blade Removal
143
Slip Clutch
144
Seasonal Clutch Maintenance
145
Mower Storage
146
Torque Chart
146
Gearbox Servicing
147
GEARBOX DISASSEMBLY (Figure Mnt-R-0083)
148
INPUT SHAFT DISASSEMBLY and ASSEMBLY (Figure Mnt-R-0084)
149
Gearbox Input Shaft Rear Bearing
151
Limited Warranty
152
