ASSEMBLY

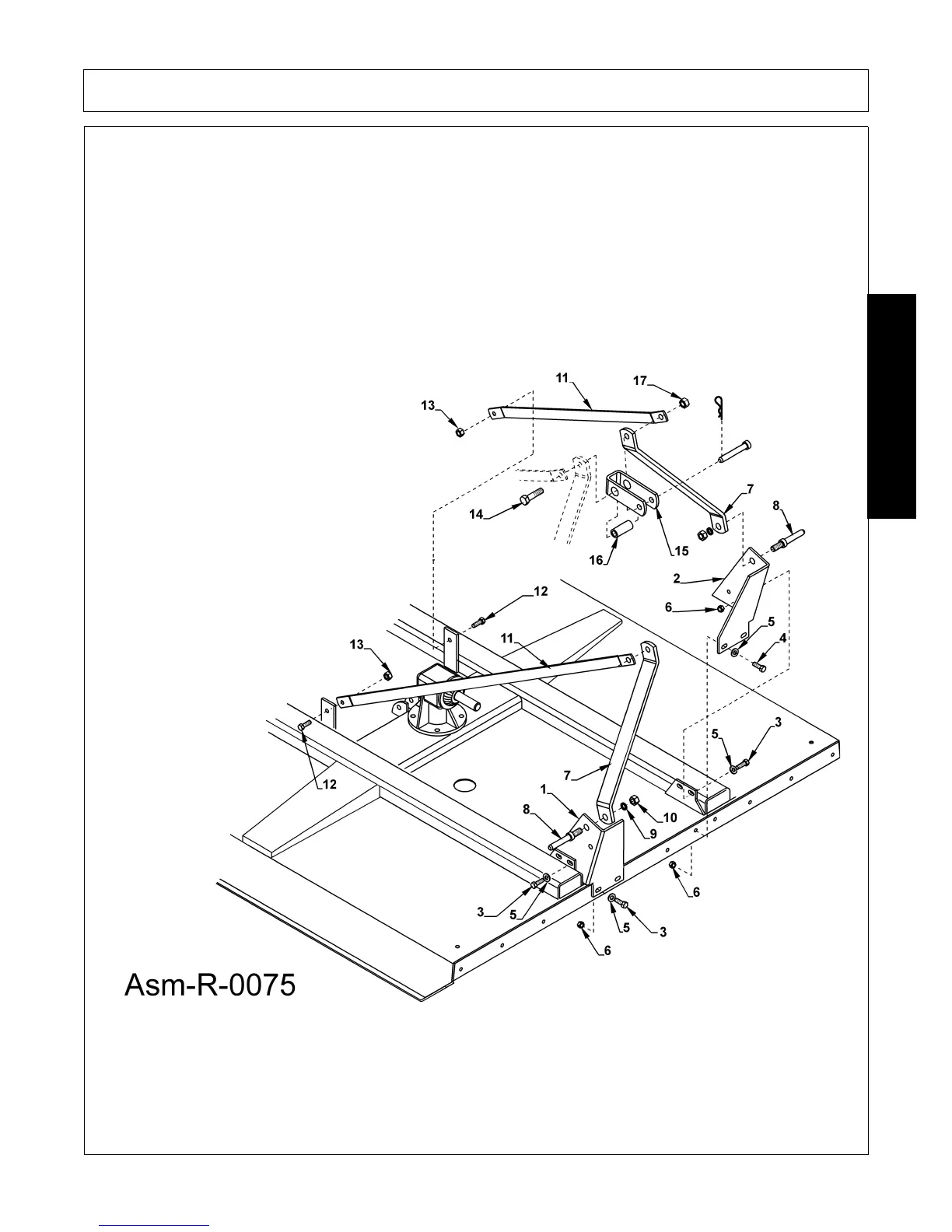

A-FRAME INSTALLATION (FIGURE Asm-R-0075).
1. Attach the Right and Left Hitch Ears (1 & 2) to the Mainframe with eight M12 x 40 bolts (3), retain with
Flatwashers (5), and Nuts (6).
2. Attach the A-Frame Bars (7) to the right and left Hitch Ears (1 & 2) with two Cat. 1 Hitch Pins (8),
Flatwashers (9), and Nuts (10).
3. Attach the Lift Strap Bars (11) to the Mainframe with two M12 x 30 Bolts (12), and Nuts (13).
4. Attach the Lift Strap Bars (11) to the A-Frame Bars (7) with one Bolt (14), Top Link (15), Bushing, (16), and
Nut (17).
5. Tighten all bolts to the proper torque.
