ASSEMBLY
SE6 05/05 Assembly Section 3-7
© 2005 Alamo Group Inc.
ASSEMBLY
SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION
Attach rear driveline of U-Joint to input Shaft on gearbox, install Snap Ring in groove on Input Shaft. NOTE:
Check that Snap Ring is properly seated in groove. This Snap Ring retains Driveline when shear bolt shears.

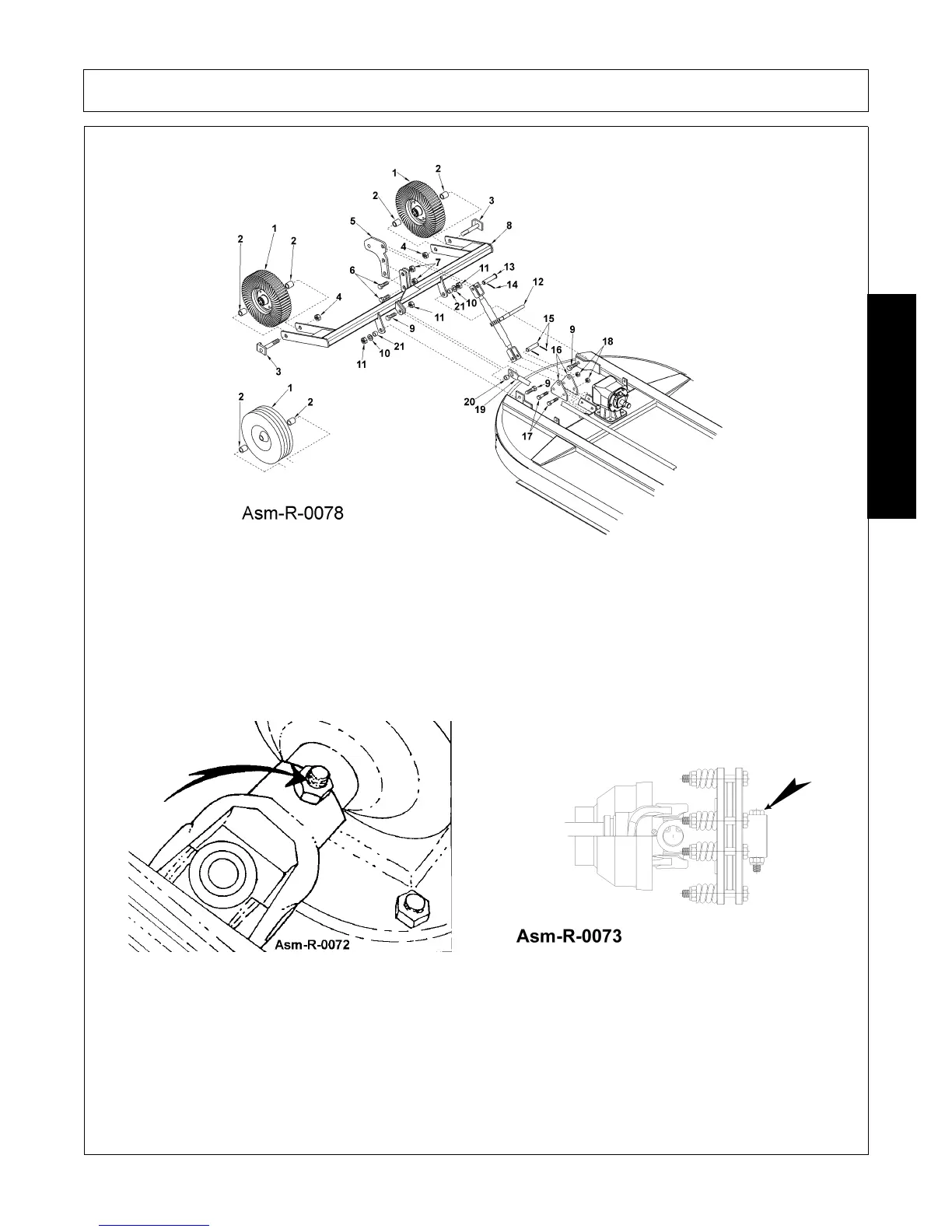

Install Grade 2 (only) shear bolt 1/2" by 3-1/2". Use of a stronger shear bolt than Grade 2, will result in driveline
failure and will void warranty. Figure Asm-R-0072.
Attach slip clutch driveline to input shaft on gearbox with Grade 8 Bolt Figure Asm-R-0073. Refer to proper
Torque Chart in Maintenance Section of this manual.
