ASSEMBLY
SE6 05/05 Assembly Section 3-8
© 2005 Alamo Group Inc.
ASSEMBLY
Front and Rear Deflectors (Standard Equipment)
Deflectors: Front and Rear Deflectors (Standard Equipment) are recommended for the average user and will
provide protection from thrown objects with proper operation under normal conditions. Deflectors must be
maintained in good repair or replaced after no more than two inches of wear off lower edge.
Front Rubber Fabric Deflectors (Standard Equipment)

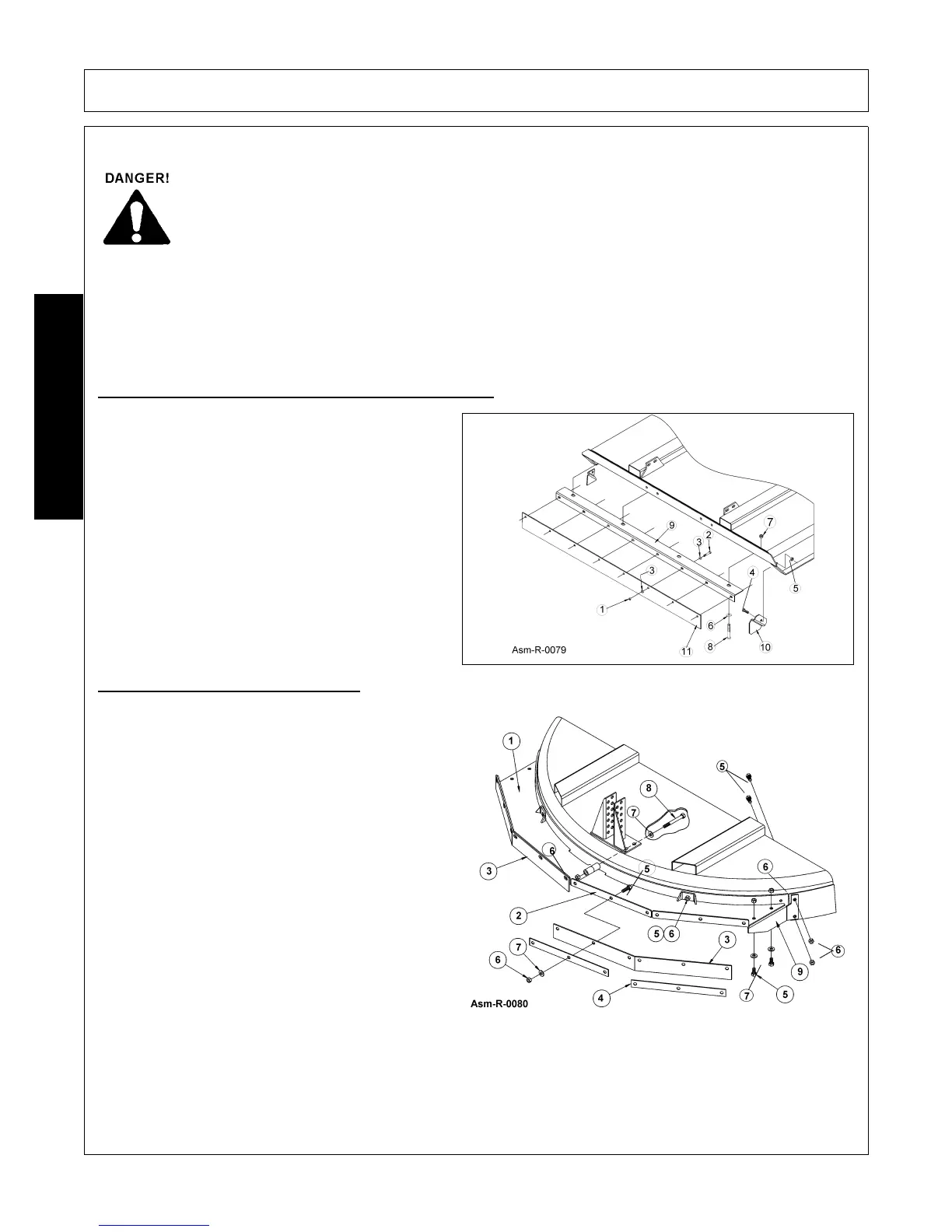

Front Deflector (Figure Asm-0003)
1. Attach the Front Bracket (9) to the front of the
mower with 1/2" x 3" Bolts (8), Flatwashers (6)
and Locknuts (7).
2. Attach the Front Deflector (11) to the Bracket
with 3/8" x 1-1/2" Bolts (2), Flatwashers (3), and
Locknuts (1).
3. Attach the corner plate (10) to the side of the
deck with a 1/2” x 1-1/2” Bolt (4). and Locknut
(5).
Rear Deflector - Figure Asm-R-0080
1. Attach both Deflectors (1 & 2) to deck using 1/
2" x 1-1/4" Bolts (5) and Locknuts (6). In center
of deck use 1/2" x 4" Bolt (8) and Locknut (6)
to tie both Deflectors (1 & 2) together.
2. Secure Debris Deflector (3) to Deflector (1 & 2)
using 1/2" x 1-1/4" Bolts (5), Bar (4),
Flatwashers (7), and Locknuts (6).
3. Fasten Rear Plate (9) on both ends of Deflector
(1 & 2) using 1/2" x 1-1/4" Bolts (5) and
Locknuts (6).
Front and Rear rubber-fabric Deflectors are Standard Equipment and Front and Rear
Chain Guards are optional . One type of guard must be installed (and maintained in good
repair) except for agricultural purposes only in areas where persons, vehicles, livestock, or
other property will not be endangered by thrown objects and where such safety equipment
would prevent the mower's reasonable performance of its assigned agricultural task.
Assy01-Shielding
