ASSEMBLY

160 07/12 Assembly Section 3-6

ASSEMBLY

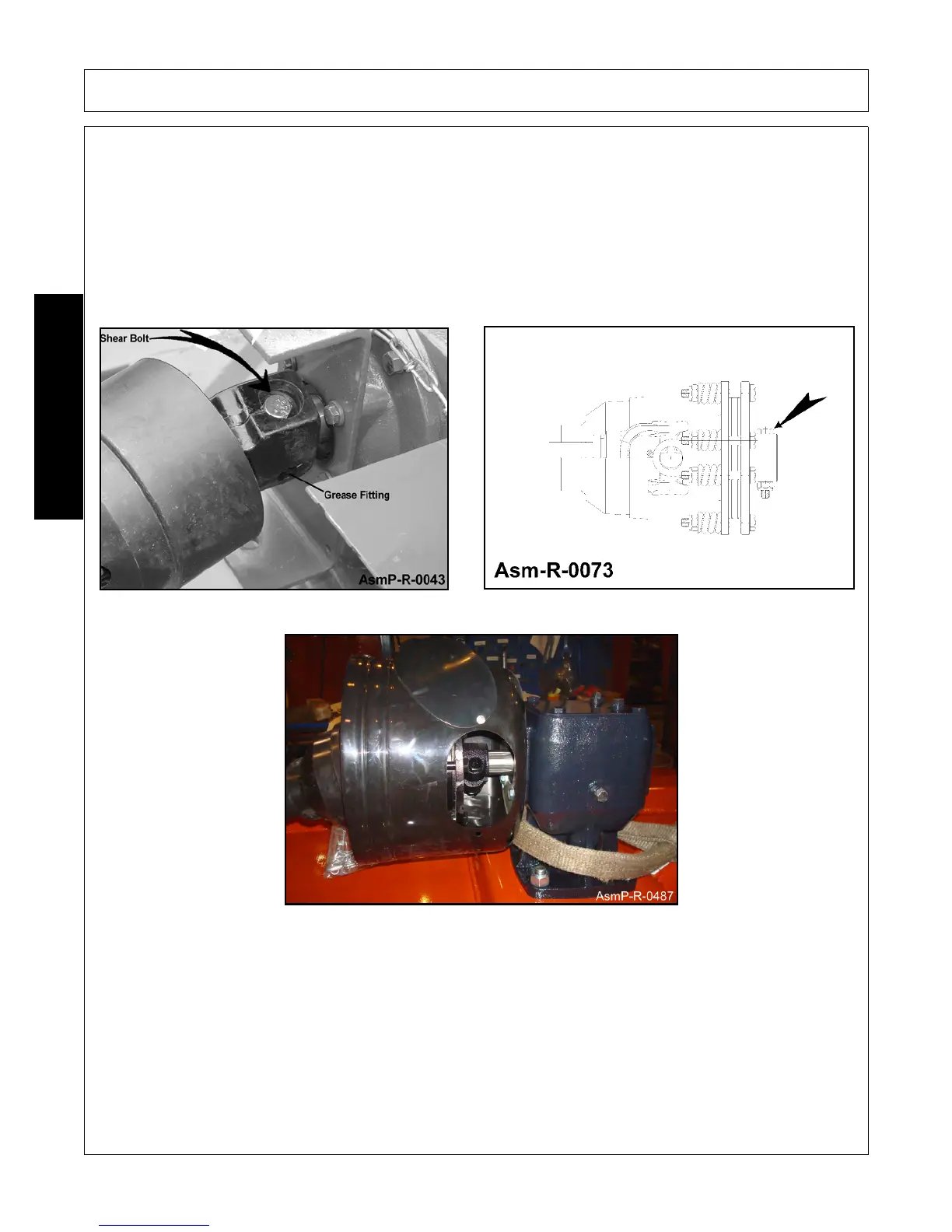

SHEAR BOLT or SLIP CLUTCH DRIVELINE INSTALLATION

Attach rear driveline of U-Joint to input Shaft on gearbox, install Snap Ring in groove on Input Shaft.

NOTE: Check that Snap Ring is properly seated in groove.

This Snap Ring retains Driveline when shear bolt shears. Install Grade 2 (only) shear bolt 1/2” by 3". Use of a

stronger shear bolt than Grade 2, will result in driveline failure and will void warranty. Figure Asm-R-0043.

Attach slip clutch driveline to input shaft on gearbox with Grade 8 Bolt Figure Asm-R-0073 & AsmP-R-0487.

Refer to proper Torque Chart in Maintenance Section of this manual.

RHINO RH6 User Manual
