ASSEMBLY

160 07/12 Assembly Section 3-5

ASSEMBLY

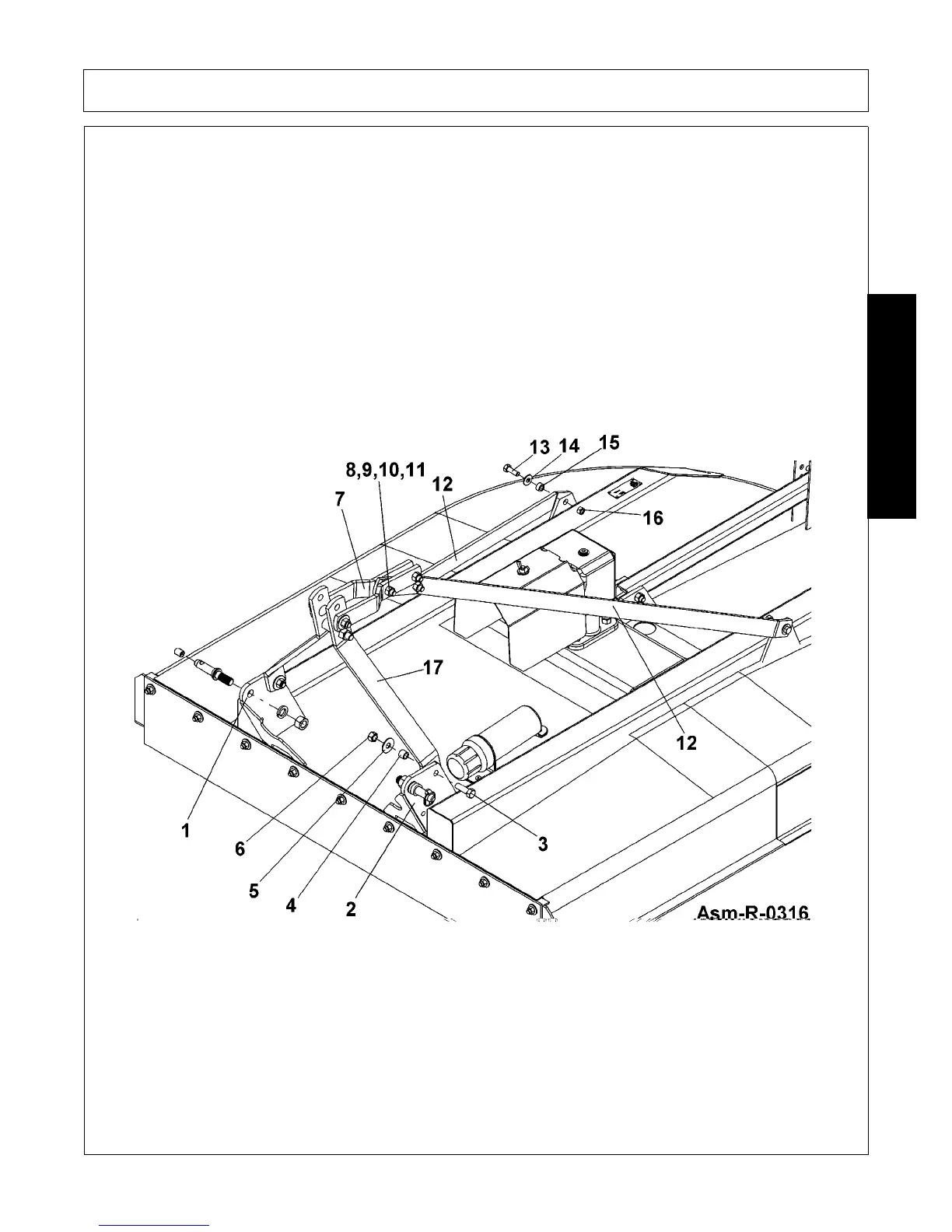

A-FRAME INSTALLATION (Quick Hitch)

1. Attach the A-Frame Bars (17) to the right and left Hitch Lugs (1 & 2) with two 5/8” x 2” bolts (3), 5/8”

washers (5), bushing (4) and 5/8” locknuts (6).

2. Attach the Lift Strap Bars (12) to the Mainframe with two 1/2”-13 x 1-1/4” bolts (13), 1/2” flatwasher (14),

bushing (15) and 1/2”-13NC locknut (16).

3. Attach flex links (7) to A-Frame bars (17) with 5/8” x 2” carriage bolts (8), bushings (9), flatwashers (10)

and Nut (11).

4. Insert quick hitch bushing between A-Frame and insert 5/8” x 4-1/2” bolt and locknut.

5. Insert 5/8” x 2-3/4 bolt (8) through flex links (7), rear braces (12) and bushing (9) inserted in rear braces.

6. Insert 5/8” x 2-3/4 bolt (8) through rear holes in flex link (7) with bushing (9) between and above rear

braces.
