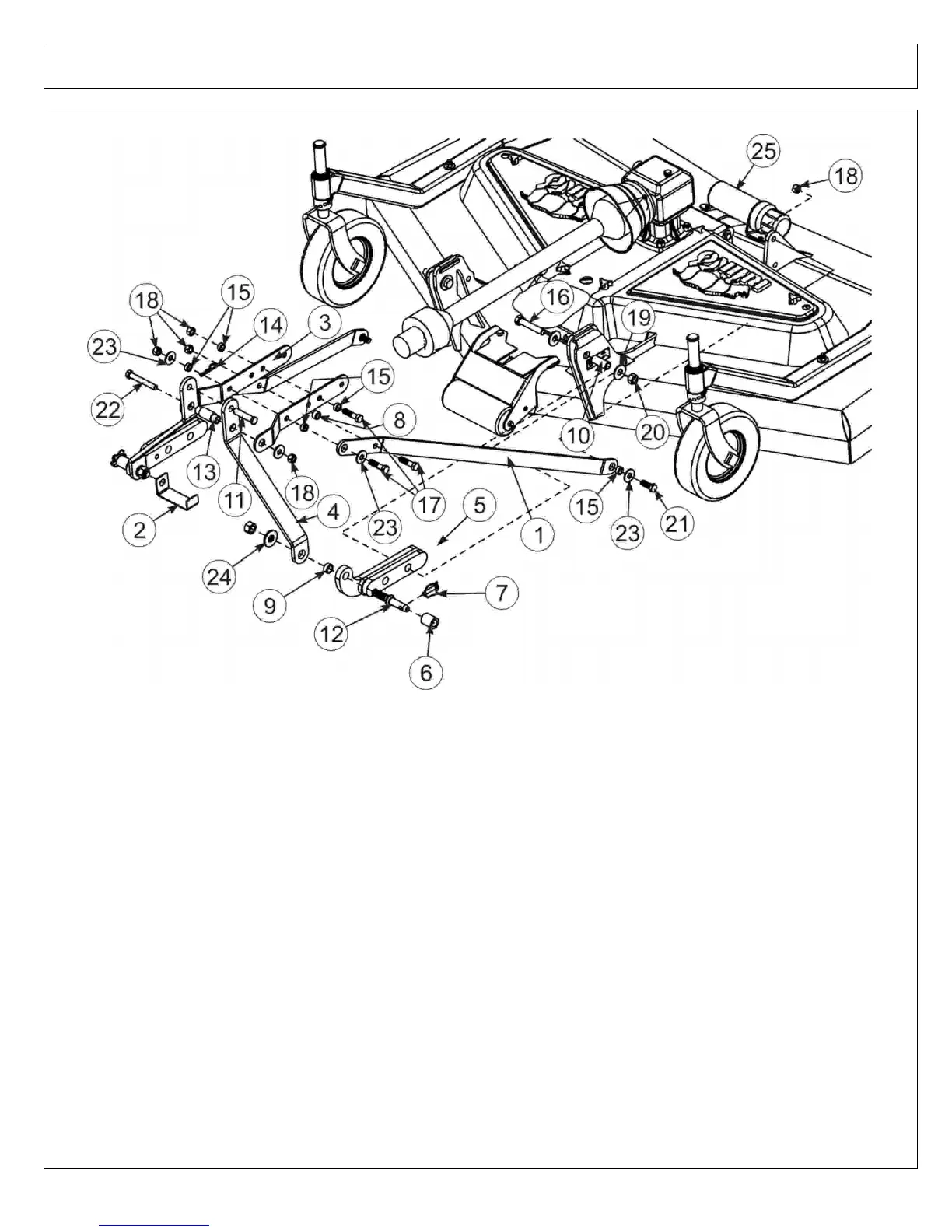

A-FRAME ASSEMBLY TM84
ITEM PART NO. QTY. DESCRIPTION
1 00779630 2 ARM, REAR A-FRAME
2 00785486 1 FLAT, DRIVELINE HOLDER
3 00779659 2 ARM, UPPER LINK TM84/TM100
4 00785716 2 ARM, FRONT A-FRAME TM84
5 00786029 1 WDMT, LOWER LINK - LH TM84
00786028 1 WDMT, LOWER LINK - RH TM84 (NOT SHOWN)
6 00777564 2 BUSHING, LOWER OUTSIDE HITCH
7 00773592 2 PIN, SAFETY LOCK LYNCH
8 00779866 1 BUSHING, UPPER LINK
9 00779848 2 BUSHING, 84/100 LOWER A-FRAME
10 00785739 2 BUSHING, TM84 A-FRAME LOWER
11 00779869 1 PIN, TOP LINK
12 00779748 2 ASY, CAT.1 HITCH PIN W/LW & NUT
13 00779850 1 BUSHING, 84/100 TOP LINK
14 37107B13 1 CLIP-X HAIR PIN
15 00779867 6 BUSHING, UPPER LINK
16 00003300 2 HEX CAP 3/4-10 X 4 GR.5
©2014 Alamo Group Inc. Parts Section -8
TM60 TM72 TM84 TM100
