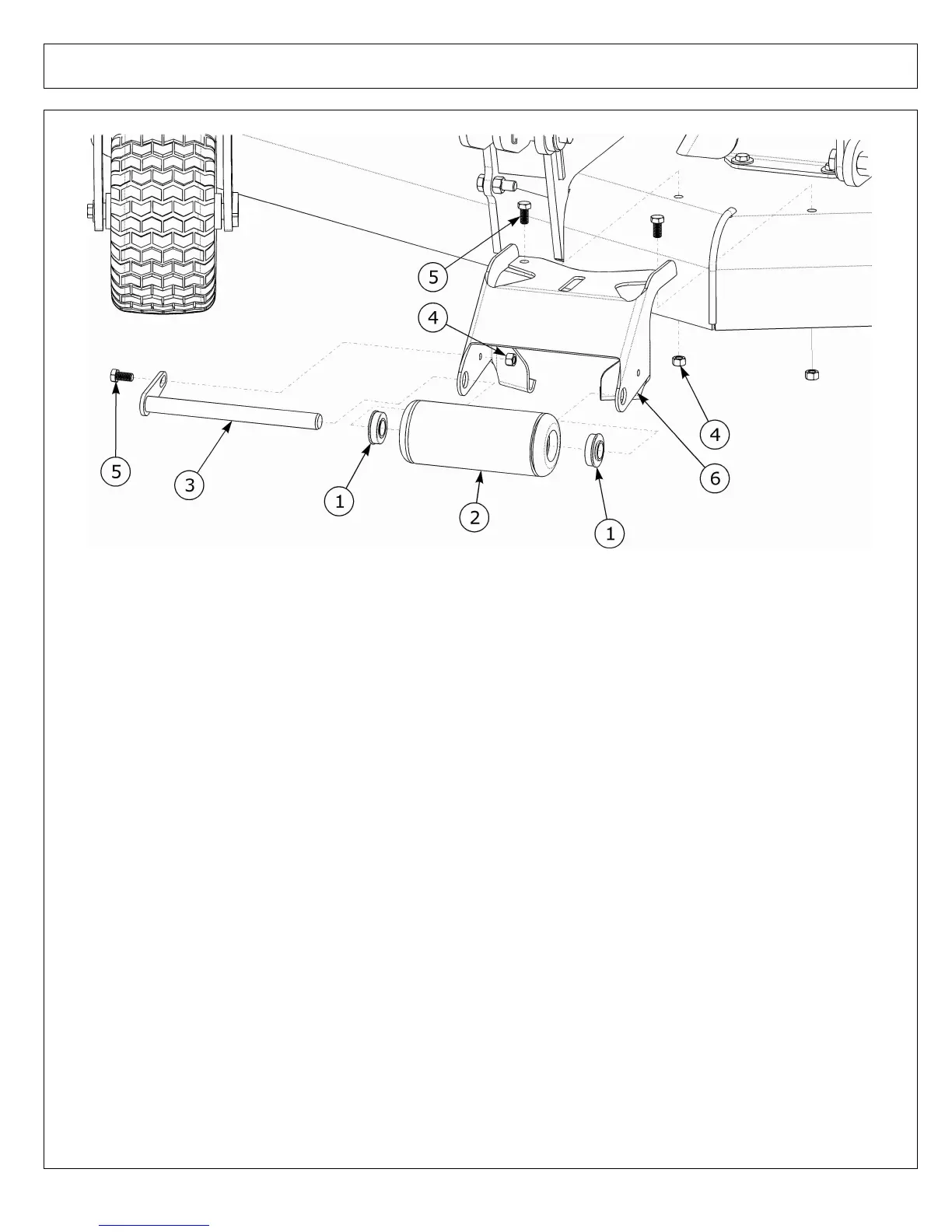

ROLLER KIT TM100
ITEM
PART NO.
QTY.
DESCRIPTION
1
14010060
2
BEARING
2
00770448
1
WLDMT,HEAVY DUTY ROLLER
3
00770449
1
WLDMT,HEAVY DUTY ROLLER PIN
4
00001800
3
LOCKNUT TLM 1/2 NC PLB
5
00750959
3
HEXB,1/2NC X 1,ZP,GRD5
6
00779796
1
BRACKET,ROLLER - TM100
©2014 Alamo Group Inc.
Parts Section -20
TM60 TM72 TM84 TM100
23
25
Table of Contents
Table of Contents
5
A-Frame Assembly Tm100
6
A-Frame Assembly Tm60 72
7
A-Frame Assembly Tm84
10
Anti-Scalp Roller Parts Tm60 Tm72 (Optional) Tm84 (Standard)
12
Axle & Tire Assembly
14
Driveline Assembly (Tm100)
16
Driveline Assembly (Tm60/Tm72/Tm84)
18
Gearbox Assembly
20
Gearbox Assembly
21
Lower Drive Assembly
22
Roller Kit Tm100
24
Spindle Assembly
25
Upper Drive Assembly
26
