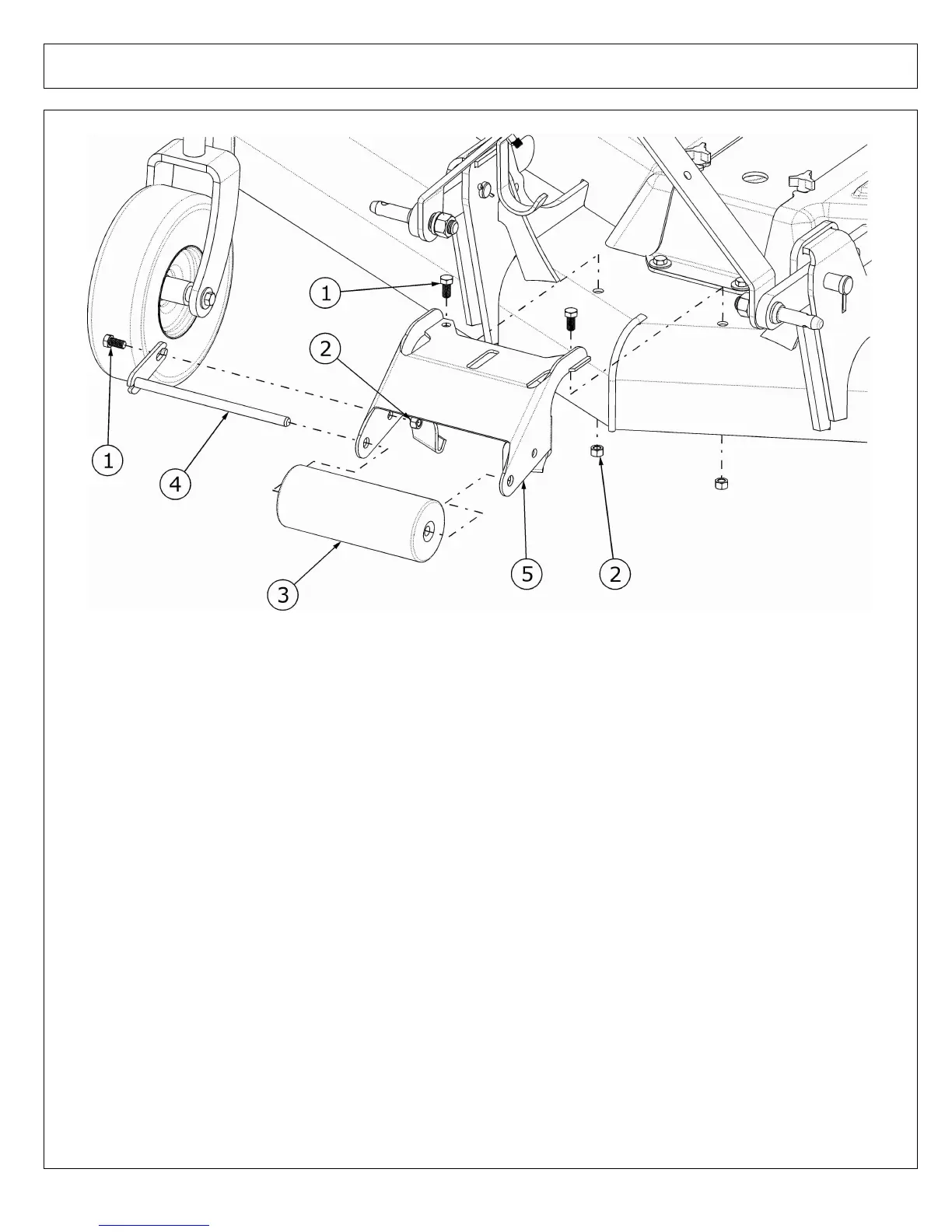

ANTI-SCALP ROLLER PARTS TM60 TM72 (OPTIONAL) TM84 (STANDARD)
ITEM
PART NO.
QTY.
DESCRIPTION
00785018
-
KIT,HD ANTI-SCALP ROLLER
1
00750959
3
HEXB,1/2NC X 1,ZP,GRD5
2
00001800
3
LOCKNUT TLM 1/2 NC PLB
3
4909
1
ROLLER-FRONT
4
00785014
1
WDMT,HD ROLLER PIN
5
00785017
1
BRACKET,TM ROLLER
©2014 Alamo Group Inc.
Parts Section -10
TM60 TM72 TM84 TM100
11
13
Table of Contents
Table of Contents
5
A-Frame Assembly Tm100
6
A-Frame Assembly Tm60 72
7
A-Frame Assembly Tm84
10
Anti-Scalp Roller Parts Tm60 Tm72 (Optional) Tm84 (Standard)
12
Axle & Tire Assembly
14
Driveline Assembly (Tm100)
16
Driveline Assembly (Tm60/Tm72/Tm84)
18
Gearbox Assembly
20
Gearbox Assembly
21
Lower Drive Assembly
22
Roller Kit Tm100
24
Spindle Assembly
25
Upper Drive Assembly
26
