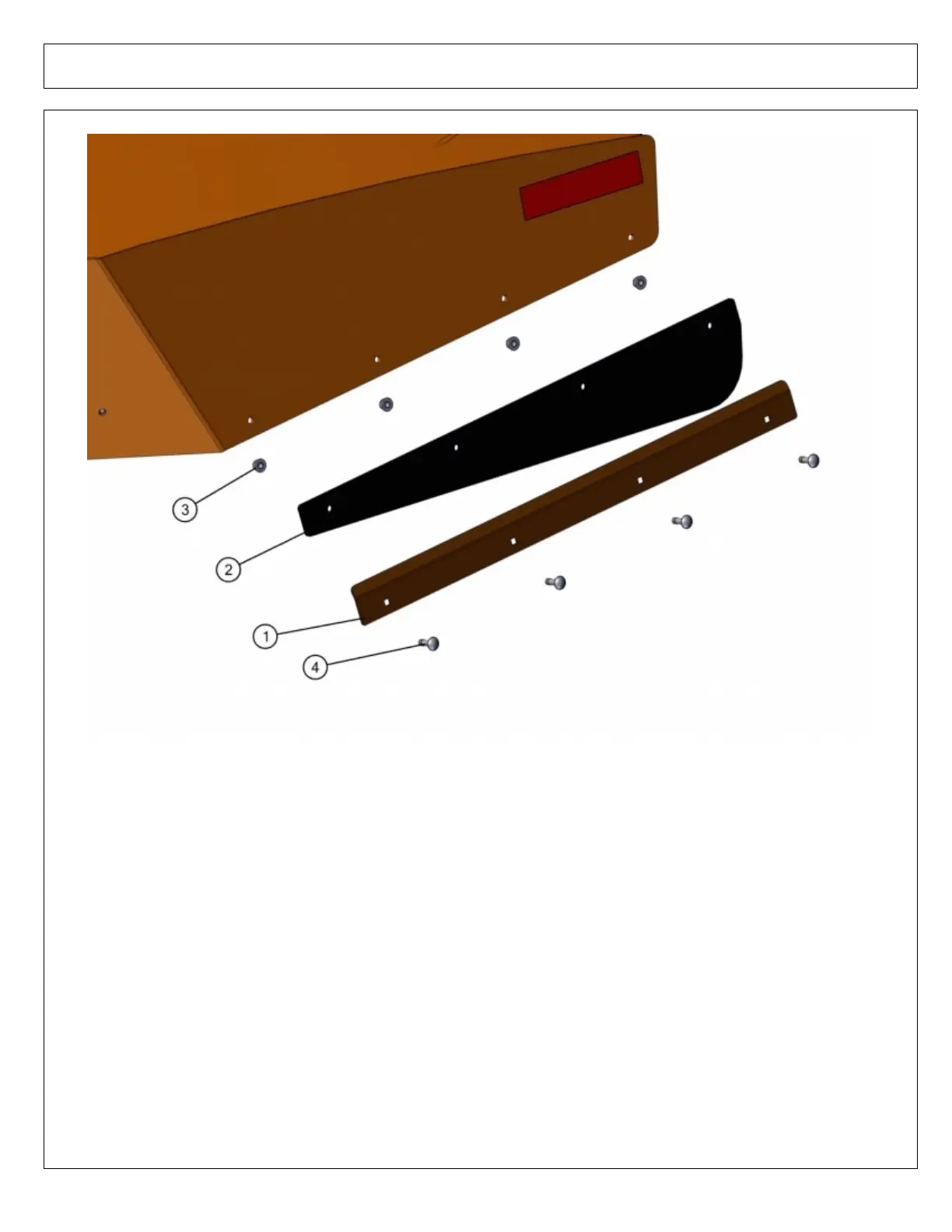

DEFLECTOR SIDE ASSEMBLY
ITEM
PART NO.
QTY.
DESCRIPTION
1
00792361
2
STRAP, SIDE SKIRT DEFLECTOR
2
00792362
2
DEFLECTOR,RUBBER SIDE SKIRT
3
4528
8
NUT FLG SER 3/8-16 PLB
4
000644
8
CARRIAGE BOLT 3/8 NC 1-1/4 PL5
©2017 Alamo Group Inc.
Parts Section -12
TW26
13
15
Table of Contents
Table of Contents
5
A-Frame Assembly
6
Blade Carrier Assembly
8
Chainguard Assembly
9
Decal Placement
10
Deflector Assembly
12
Deflector Side Assembly
14
Driveline Assembly - 00789043 Cat3 Slipclutch
16
Gearbox Assembly - 00791028 -1:1.47 No-Lube 540Rpm
18
Shield Assembly
20
Tailwheel & Canister Assembly
22
