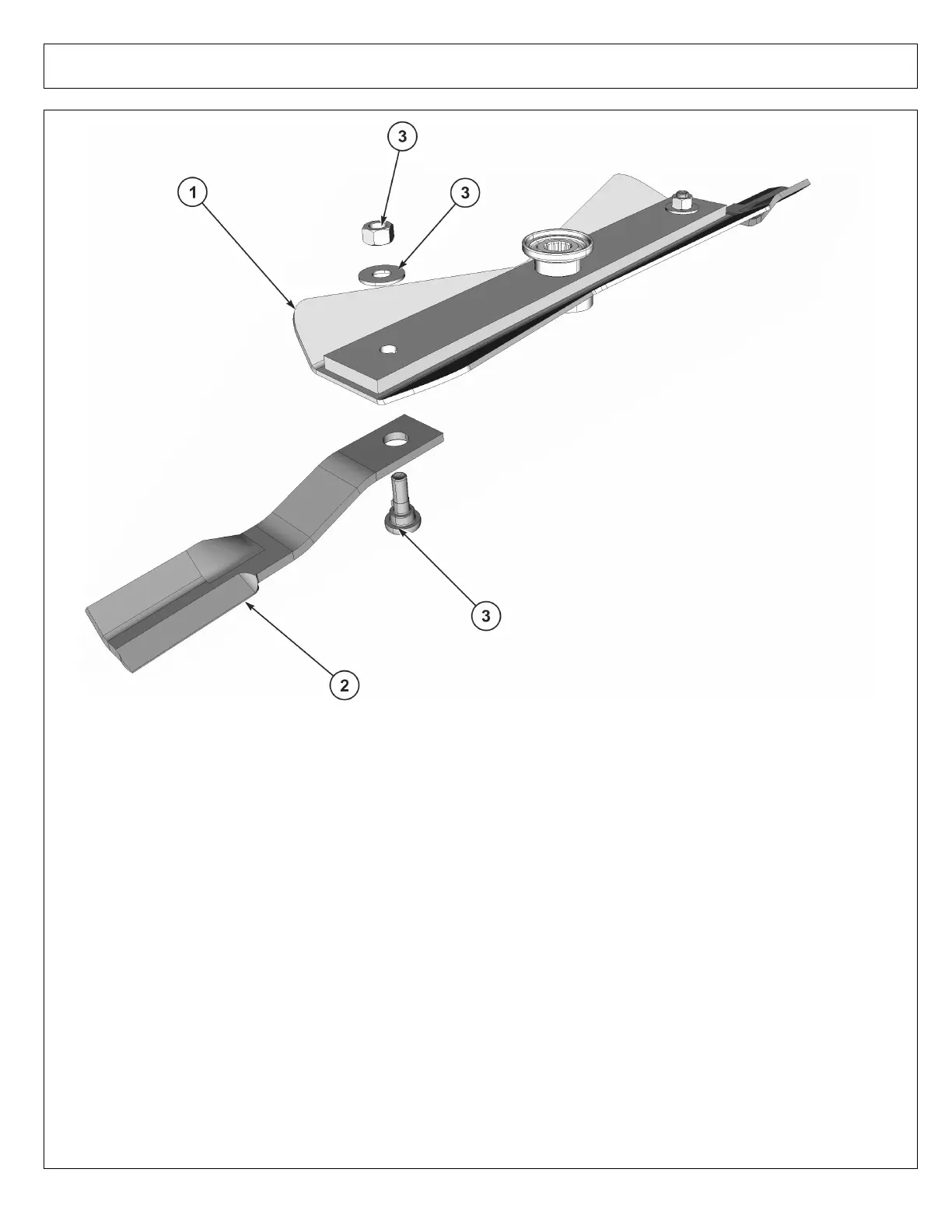

BLADE CARRIER ASSEMBLY
ITEM
PART NO.
QTY.
DESCRIPTION
1
00792357
1
WDMT, BLADE PAN 21" CTR
2
00785567
2
BLADE, FAN CCW, 25-1/2 CTR-TIP
3
00786548
1
BLADE BOLT KIT
----------
2
NUT TOP LOCK 7/8 NF PLC
----------
2
WASHER 7/8 STRUCTURAL - PLAIN
----------
2
BLADE BOLT 7/8 DIA X 3 LG
©2017 Alamo Group Inc.
Parts Section -6
TW26
7
9
Table of Contents
Table of Contents
5
A-Frame Assembly
6
Blade Carrier Assembly
8
Chainguard Assembly
9
Decal Placement
10
Deflector Assembly
12
Deflector Side Assembly
14
Driveline Assembly - 00789043 Cat3 Slipclutch
16
Gearbox Assembly - 00791028 -1:1.47 No-Lube 540Rpm
18
Shield Assembly
20
Tailwheel & Canister Assembly
22
