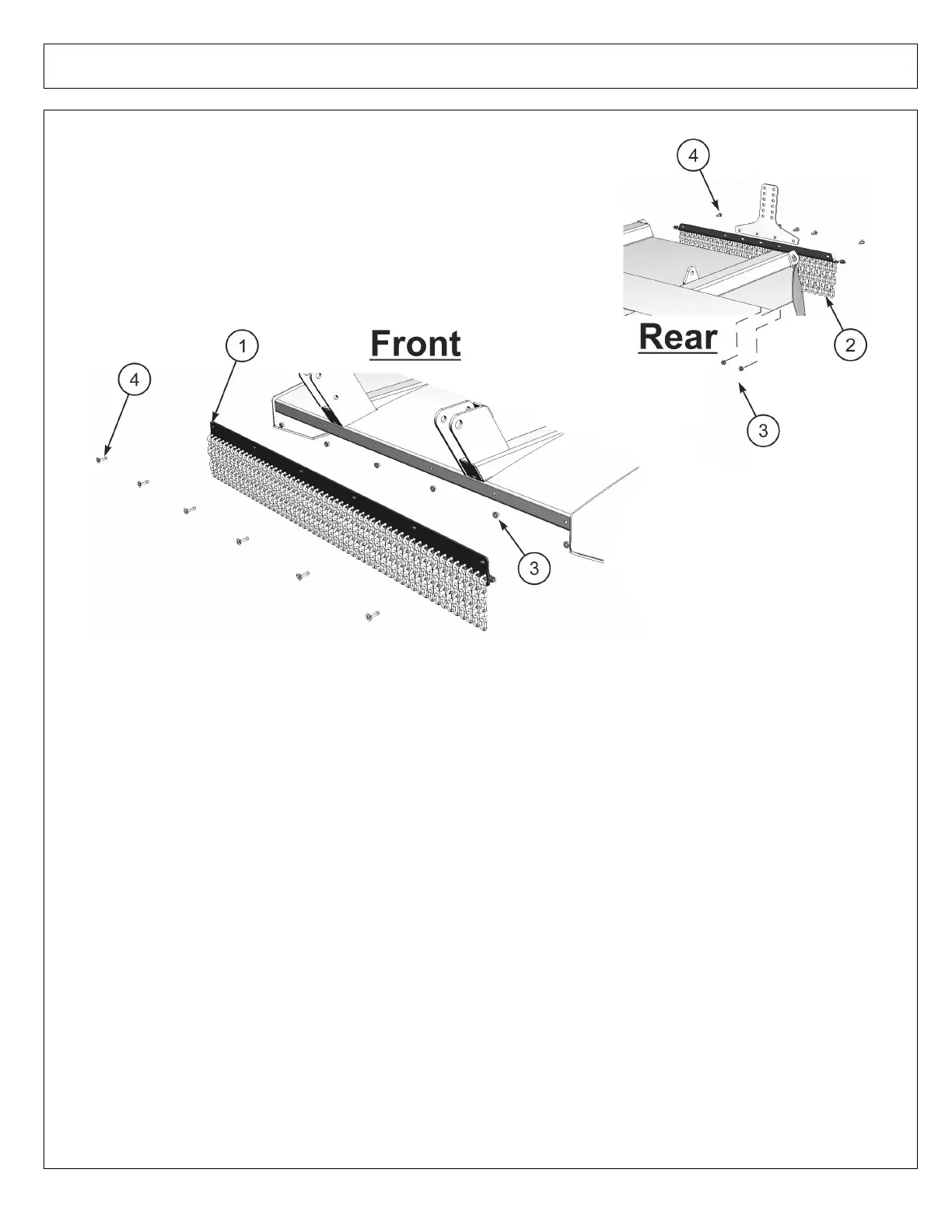

CHAINGUARD ASSEMBLY
ITEM
PART NO.
QTY.
1
00792371
1
2
00792373
1
3
4528
12
4
000644
12
DESCRIPTION
ASY, FRONT CHAINGUARD- TW2
6
ASSY, REAR CHAIN GUARD
NUT, HEX LOCK 3/8-16 FLG WHIZ
CARB-3/8 NCK 1-1/4 PL5
©2017 Alamo Group Inc.
Parts Section -7
TW26
8
10
