RHINO TW26 User Manual

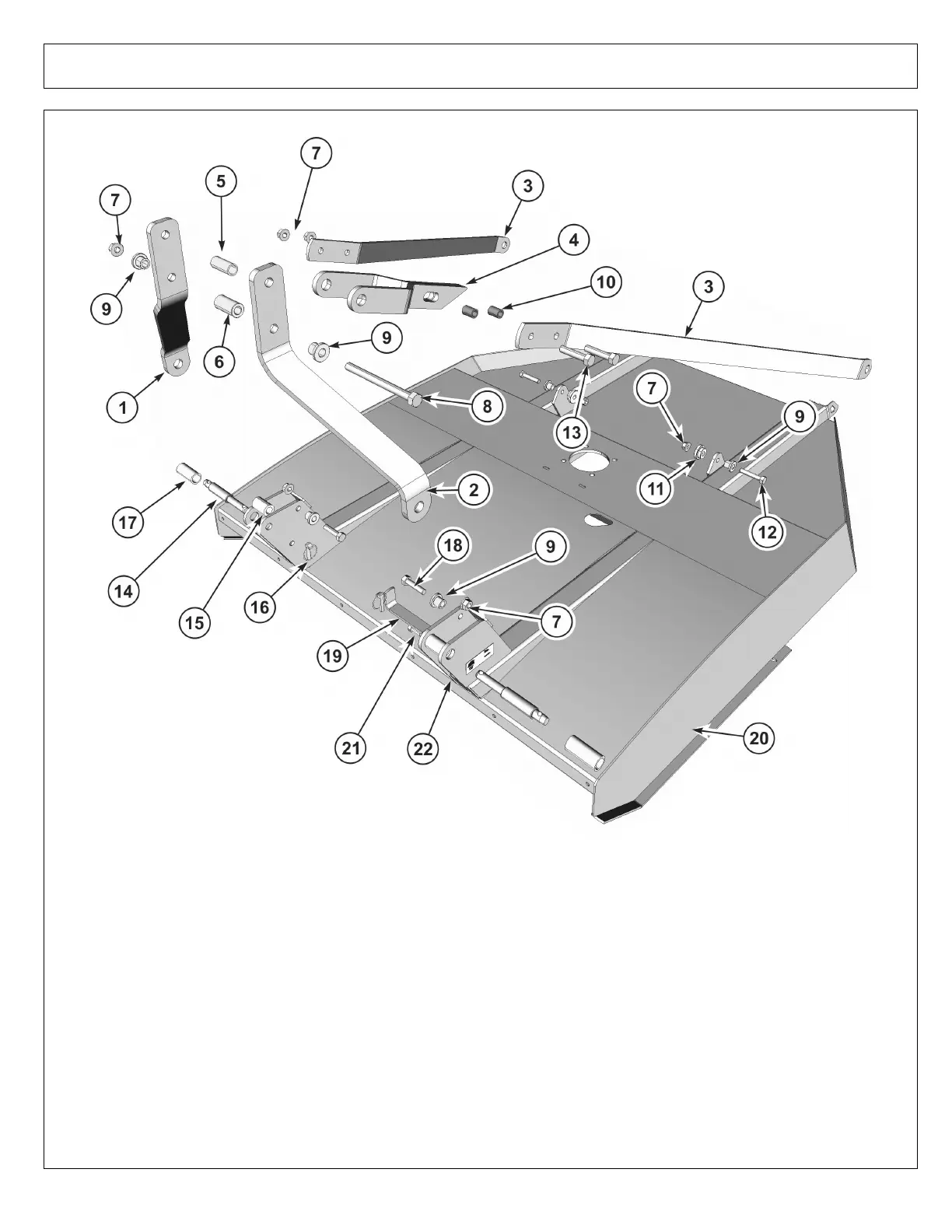

A-FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792273 1 ARM, FRONT A-FRAME-RH
2 00792272 1 ARM, FRONT A-FRAME-LH
3 00792360 2 BAR, BRACE
4 00792274 1 TOGGLE LINK, WLDMT
5 00792298 1 BUSHING, 1.00 X .78 X 2.38
6 00792279 1 BUSHING, 1.25 X .69 X 2.53
7 00780869 7 NUT, FLG 5/8NC SPIRALOCK PL5
8 00156503 1 HEXB, 5/8 NC 7 PL5
9 00792280 6 BUSHING, SHOULDER 5/8"
10 00792278 2 BUSHING, .88 OD X .64 ID X 1.19
©2017 Alamo Group Inc.
Parts Section -4
TW26
