SECTION II: INSTALLATION AND MAINTENANCE
29
II.3 TRANSPORT - HANDLING - STORAGE
DANGER!
The unit must be transported and handled by
skilled personnel trained to carry out this type of
work.
ENVIRONMENTAL PROTECTION
Dispose of the packaging materials in compliance
with the national or local legislation in force in your
country. Do not leave the packaging within reach of
children.
IMPORTANT!
Be careful to avoid damage by accidental collision.
II.3.1 PACKAGING, COMPONENTS
DANGER!
DO NOT OPEN OR TAMPER WITH THE PACKAGING
BEFORE INSTALLATION.
The units should only be moved and lifted by
specialized personnel trained in these operations.

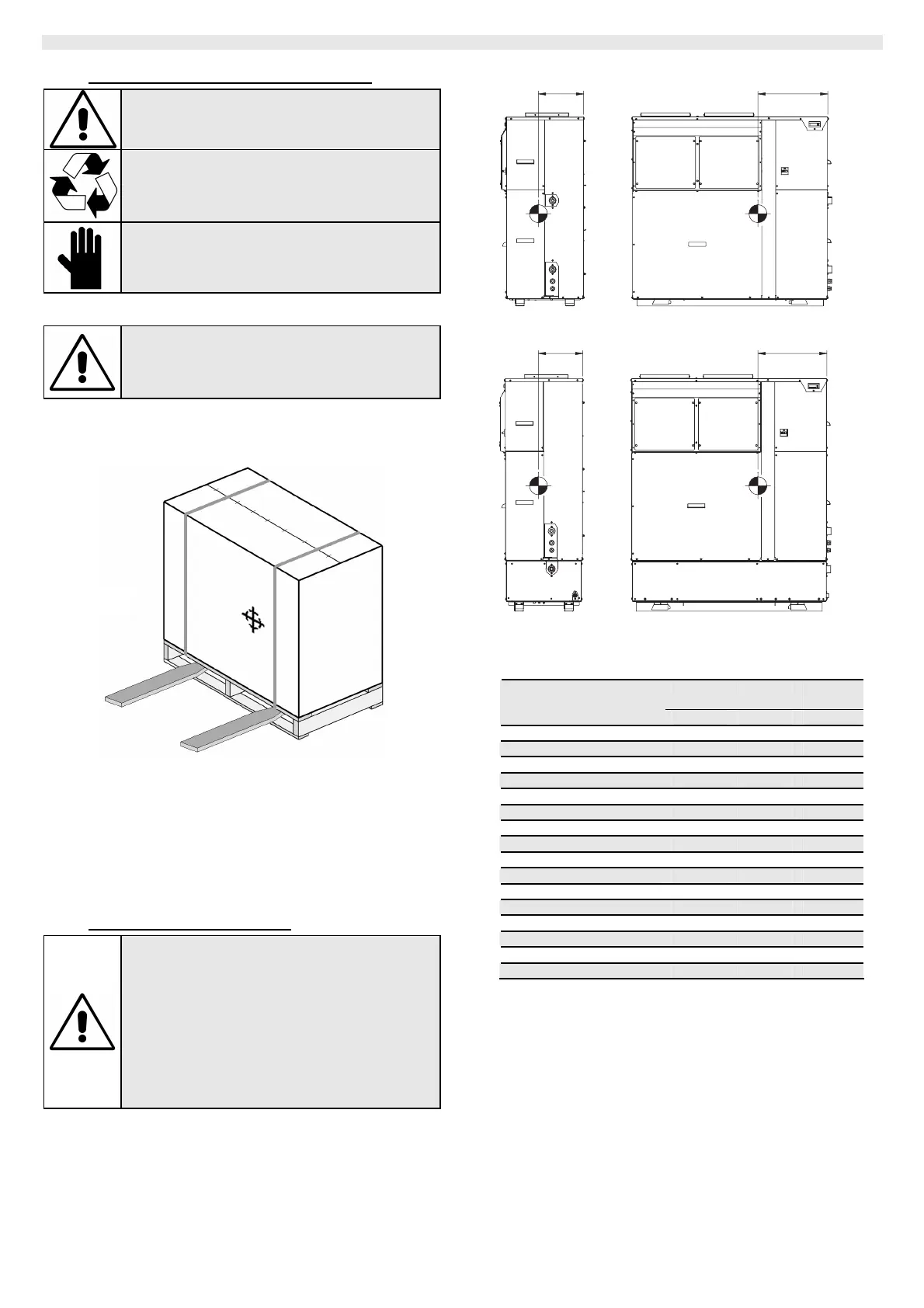

Move the machine with its packaging intact to the installation position
using a fork-lift truck or pallet truck, bearing in mind that the centre of
gravity is off-centre (the position of the symbol is approximate, and
stability should always be checked).
The units are supplied in cardboard packaging, loaded onto a wooden
pallet, secured with 4 screws and banded.
Each unit is supplied complete with:
• instructions for use;
• wiring diagram;
• list of authorised service centres;
• warranty document;
• certificates for the safety valves
• use and maintenance manuals for the safety valves, fans, pumps or
circulators.
II.4 HANDLING INSTRUCTIONS
DANGER!
The off-centre position of the centre of gravity
could give rise to sudden and dangerous
movements. The unit must always be handled
carefully in order to prevent damage to the external
structure and to the mechanical and electric
internal parts.
Make sure that there are no obstacles or persons
present along the route to be taken, in order to
prevent the risk of collisions and crushing and in
order to prevent the transport vehicle from tipping
over.
TCCE – THCE 114÷126
XY
Y X
G
G
G
G
TCCE – THCE 114÷126 T-H
Fig.5
Approximate indication of the position of the centre of gravity.
X Y Weight
(*)
MODEL
(cm) (cm) kg
TCCE 14 56,5 28,0 260
TCCE 17 55,0 26,5 280
TCCE 21 65,0 31,2 350
TCCE 26 65,0 31,0 370
THCE 14 56,5 28,0 280
THCE 17 55,0 26,5 290
THCE 21 65,0 34,2 370
THCE 26 65,0 34,0 380
TCCE 14 T-H 62,0 25,6 350
TCCE 17 T-H 61,0 27,1 370
TCCE 21 T 73,5 32,0 440
TCCE 26 T 73,0 32,2 470
THCE 14 T-H 57,0 27,1 360
THCE 17 T-H 62,0 26,6 380
THCE 21 T 73,0 34,0 450
THCE 26 T 72,5 34,2 480
(*) Weight of the unit in its packaging with storage tank empty.
If the machine has to be moved when it is out of its packaging, it must
be done by taking it off the pallet and/or setting the machine on the
ground, having first removed the four fixing screws. All moving
operations must be carried out with the greatest attention and care.
Never use this method for lifting or movement operations other than
those described.
Fig. 4
